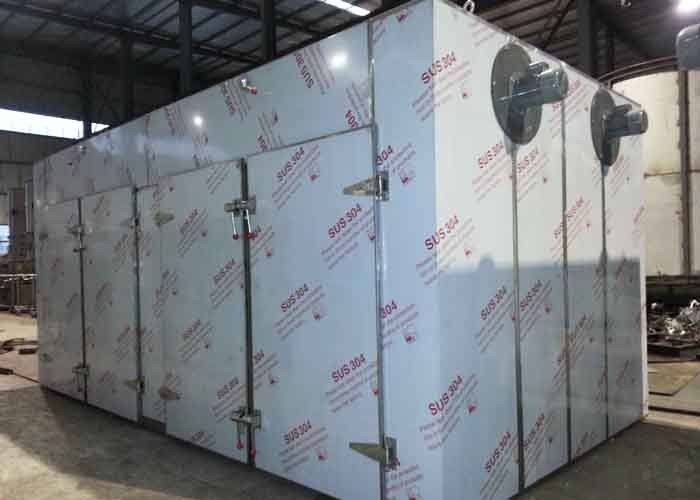

Cabinet Industrial Tray Dryer Hot Air Circulationg Drying Oven For Pharmaceutical Food

I'm Online Chat Now

Cabinet Industrial Tray Dryer Hot Air Circulationg Drying Oven For Pharmaceutical Food

China Cabinet Industrial Tray Dryer Hot Air Circulationg Drying Oven For Pharmaceutical Food supplier
Cabinet Industrial Tray Dryer Hot Air Circulationg Drying Oven For Pharmaceutical Food supplier Cabinet Industrial Tray Dryer Hot Air Circulationg Drying Oven For Pharmaceutical Food supplier Cabinet Industrial Tray Dryer Hot Air Circulationg Drying Oven For Pharmaceutical Food supplier Cabinet Industrial Tray Dryer Hot Air Circulationg Drying Oven For Pharmaceutical Food supplier Cabinet Industrial Tray Dryer Hot Air Circulationg Drying Oven For Pharmaceutical Food supplier

Large Image :  Cabinet Industrial Tray Dryer Hot Air Circulationg Drying Oven For Pharmaceutical Food

Product Details:

Place of Origin: China
Certification: SGS, CE, ISO
Model Number: CT-C-I

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Price: USD10990-59000/unit
Packaging Details: shipping container
Delivery Time: 35 working days
Payment Terms: L/C, D/A, D/P, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000unit per year
Contact Now
Detailed Product Description
Name: Tray Dryer/ Hot Air Circulation Drying Oven Material: SUS 304, SUS316L
Type: Static Drying Tray Number: 24-216
Heating Source: Electricity Or Steam Packing: 40HQ Container

Cabinet Tray Dryer/ hot air circulationg drying oven for pharmaceutical food snack chemical herbal organic seasoning



Application:
Hot air circulating oven for heating the pharmaceutical, chemical, food, agricultural products, aquatic products, light industry materials, curing, drying dehydration. Such as raw materials, medicine water, extracts, powders, granules, dehydrated vegetables.
1. This machine is kind of hot air circulation drying oven machine, it is widely used in food industry, pharmaceutical industry, chemical industry, and other industries.

2. This drying oven machine is applicable to dry and dewater the vegetables, fruits, Chinese medicinal herb, pigment, baking finish, and other materials.

3. This drying oven adopts axial flow fan, equipped with automatic constant temperature control system and computer control system for choice. The thermal efficiency of this drying oven can reach about 70%
Heating source:electricity or steam
Heating temperature: 30-140℃ (use steam); 30-300℃ (use electricity)
Technical Specification:

Model Evaporation eara(sqm) Volume(mcbm) Drying capacity (kg/batch)

Steam consumption

(kg/h)

Heating powder

(kw)

Fan volume

(cbm)

Fan Power (kw)

Dimension

(mm)

Weight

kg)

CT-C-0 7.1 1.3 60 10 9 3450 0.45 1380*1200*2000 820
CT-C-1 14.1 2.6 120 18 15 3450 0.45 2260*1200*2000 1580
CT-C-2 28.3 4.9 240 36 30 6900 0.45*2 2260*2200*2000 1800
CT-C-2A 28.3 4.9 240 36 30 6900 0.45*2 4280*1200*2270 1880
CT-C-3 42.4 7.4 360 60 45 10350 0.45*3 2260*3200*2000 2100
CT-C-3A 42.4 7.4 360 60 45 10350 0.45*3 3240*2200*2000 2210
CT-C-4 56.5 10.3 480 80 60 13800 0.45*4 4280*2200*2270 2800
CT-1 14.1 2.6 120 20 15 3450 1.1 2480*1200*2375 1220
CT-2 28.3 4.9 240 40 30 5230 1.5 2480*2200*2438 1530
CT-3 42.4 7.4 360 60 45 9800 2.2 3430*2200*2620 2110
CT-4 56.5 10.3 480 80 60 11800 3 4460*2200*2620 2300
