• GMP Vibro Sifter Machine , 1-4layers Industrial Sieving Machine
GMP Vibro Sifter Machine , 1-4layers Industrial Sieving Machine

GMP Vibro Sifter Machine , 1-4layers Industrial Sieving Machine

Product Details:

Place of Origin: China
Certification: SGS CE ISO
Model Number: RFT

Payment & Shipping Terms:

Minimum Order Quantity: 1units
Price: USD1490-9900 per unit
Packaging Details: plywood
Delivery Time: 7 working days
Payment Terms: Western Union, MoneyGram
Supply Ability: 10000units per year
Get Best Price Contact Now

Detail Information

Name: Circular Vibrating Screen Application: Power, Granule , Liquid
Layer: 1-4layers Material: Stainless Steel 304 Or 316L
Application Industries: Food, Chemical, Pharma, Etc Voltage: 110 220 380 400 415
High Light:

4layers industrial sieving machine

,

GMP vibro sifter machine

Product Description

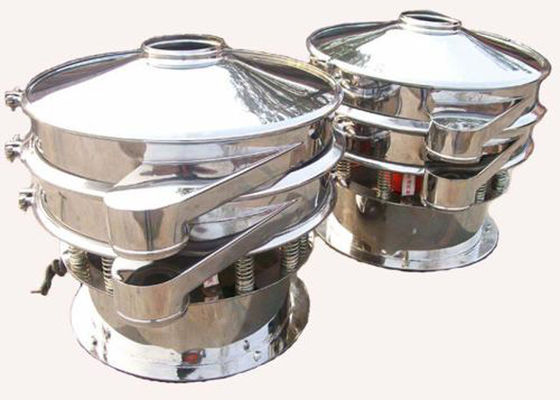

GMP Standard Vibro Sifter Machine , Pharmaceutical Vibro Screening Machine



The design of the swaying screen is a high-efficiency sieving machine specially designed to meet the needs of large-volume, high-precision screening manufacturers. The simplest sieving is to screen both hands with both eyes. The rocking and sieving machine is the mechanical simulation of this. It is the most effective simulation of the effective principle of artificial sieving movement (screening accuracy, efficiency, and screen life are 5-10 times that of conventional circular sieve), which is in line with all the fineness. With ultra-fine range of powder and particulate materials, it is especially suitable for materials that are difficult to handle.

⊕ swaying screen Features
Up to 5 times the output per unit area; accurate to 6 levels of separation, screening efficiency of up to 90% -95%; using silicone rubber balls, ultrasonic and other efficient cleaning system system, the screen hole will not block. Closed dust removal, safe operation; acceleration is 4.5 times lower than vibrating screen, the life of screening parts is improved and maintenance is reduced; noise is <75 decibels. Optimize the balance of the balance and the dynamic load of the foundation is low.
⊕ Structural principle
★ The basic rotary motion is similar to manual screening. The eccentricity is adjustable from 25 to 40mm, and the low-speed V-belt drive is adjustable from 120 to 360rpm
★The dwell time of each product can be adjusted by the radial and chamfer angles of the rocking screen towards the drive axis
★ So build a level and throw a three-dimensional tumbling motion. The material is uniformly dispersed from the center to the outer edge on the entire screen surface to propagate axially in a spiral motion. The fine particles complete the entire screening process.
★The horizontal and vertical accelerations increase with the movement of the particles, and the particles close to the mesh size are successfully separated; the larger particles are transported to the outlet, and the outlet is controlled by an adjustable guide, which is controlled Another factor in material residence time.

★ This process is repeated between each sieve layer.



⊕ Applicable industry
Chemicals, food and spices, plastics, mining, pharmaceuticals, wood and plywood, metallurgy, rubber, feed, fertilizer, sugar and salt, recycling industry

Model Layer Power(KW) Mesh diameter(mm) Dimension(mm)
RFT-400 1S 0.18 or 0.37 360 720x430x600
2S 720x430x690
720x430x780
3S
RFT-600 1S 0.37 or 0.55 560 600x600x740
2S 600x600x880
3S 600x600x1020
RFT-800 1S 0.55 or 0.75 760 800x800x840
2S 800x800x1000
3S 800x800x1160
RFT-1000 1S 0.75 or 1.1 930 970x970x950
2S 970x970x1110
3S 970x970x1270
RFT-1200 1S 1.1 or 1.75 1130 1170x1170x1090
2S 1170x1170x1250
3S 1170x1170x1410
RFT-1500 1S 1.5 or 2.2 1430 1470x1470x1110
2S 1470x1470x1270
3S 1470x1470x1430
