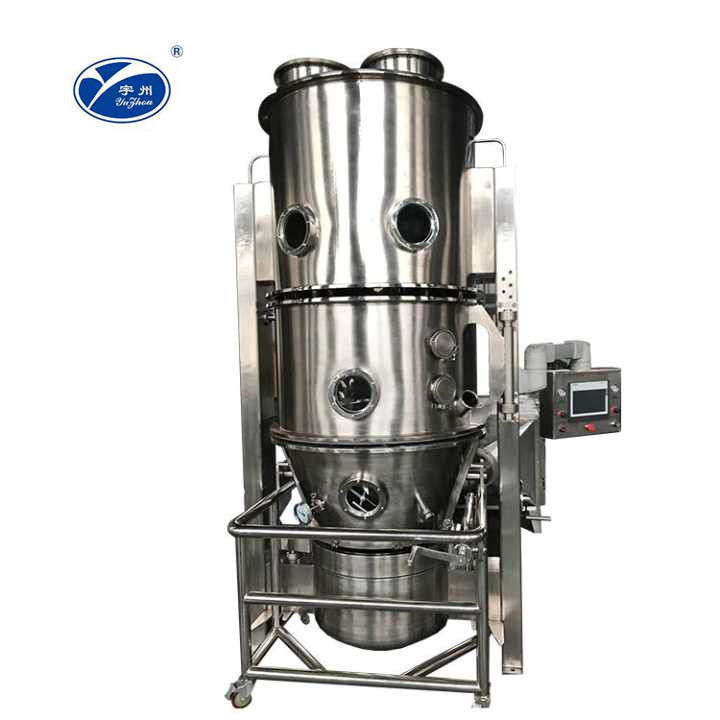

SS304/SS316L Boiling Vertical Fluidized Bed Dryer Pharmaceutical Granulator
Product Details:
| Place of Origin: | Jiangsu, China |
| Brand Name: | yuzhou |
| Certification: | ISO14001 ISO9001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | wooden case,Special fumigation -free wooden material . Or according to customer requirement . |
| Delivery Time: | 45-90days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 60 Set/Sets per Year Multifunction Fluidized bed granulator |
|
Detail Information |
|||
| Type: | Spray Drying Equipment | Name: | Vertical Fluidized Bed Dryer |
|---|---|---|---|
| Application: | Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing, Chemical Industry Foodstuff Pharmaceutical | Weight (KG): | 490 |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service | Applicable Industries: | Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Retail, Energy & Mining, Food & Beverage Shops |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Material: | SS304/SS316L |
| High Light: | Boiling Vertical Fluidized Bed Dryer,SS316L Vertical Fluidized Bed Dryer,SS304 pharmaceutical granulator |
||
Product Description
Multifunctional Boiling Granulator High Speed Energy Saving Granulator Pharmaceutical Industry
Working Principles
The powdery materials is in fluidizing state in the container. It is first heated and mixed by filtered hot air. Then the powder
combines with atomizing adhesive solution. After that, the prototype of granule is formed.The moisture in granules is evaporated,
as hot air constantly heats the granules. The adhesive is also solidified in the process of drying. The repeated drying process
finally contributes to the microporous spherical granules.
|
Model
|
|
FL-3
|
FL-5
|
FL-15
|
FL-30
|
FL-60
|
|
|
Container
|
Volume (L)
|
12
|
22
|
45
|
100
|
220
|
|
|
|
Diameter (mm)
|
300
|
400
|
550
|
700
|
1000
|
|
|
Productive Capacity
|
Min. (kg)
|
1.5
|
4
|
10
|
15
|
30
|
|
|
|
Max. (kg)
|
4.5
|
6
|
20
|
45
|
90
|
|
|
Fan
|
Air Volume (m3/h)
|
1000
|
1200
|
1400
|
1800
|
3000
|
|
|
|
Power (kw)
|
3
|
4
|
5.5
|
7.5
|
11
|
|
|
Stream Consumption (kg/h)
|
|
15
|
23
|
42
|
70
|
141
|
|
|
Compressed Air Consumption (m3/h)
|
|
0.9
|
0.9
|
0.9
|
0.9
|
1
|
|
|
Weight of Main Body (kg)
|
|
500
|
700
|
900
|
1000
|
1100
|
|
Applications
The fluidized drying granulator can be used to make tables, instant herbal medicine and capsule in pharmaceutical industry, cocoa,
coffee, milk powder, fruit granules and flavoring in food industry, and agricultural pesticide, feedstuff, fertilizers, pigments
and dyestuff in other industries. It is also suitable for drying of wet powder materials or wet particles.
Features
1. Granules made by our fluidized drying granulator have good dissolvability and fluidity. So there is no dust pollution.
2. It has functions of mixing, drying and granulation.
3. Anti-static electricity filter cloth is adopted to make the fluidized drying granulator safe to use.
4. Pressure bleeder hole is designed for security.
5. It features easy charging and discharging of materials, and it is also easy to clean.
6. Our fluidized drying granulator conforms to the standards of GMP.
Jiangsu Yutong Drying Engineering Co., Ltd is a famous enterprises located in a famous town ofsouth of YANGTSE RIVER,JiaoxiTown, it is establish in 2000 with more than 21 year experience150 workers 16000 square meter .this year we increase the new factory scale.
Yutong specialize in drying, mixing, granulating, evaporating, concentrating and separating equip-ment. We have undeniable engineer and more than 100 sets machine. Every year we can produce about600 sets machine and also can develop more than 30 types which are selling to all the country.Weemphasize science and technology innovation, early or late we cooperate with many famous colleges. Our company has developed so quickly that we have accumulated large amount of fundand technical knowledge.
Our company has passed authentication of lSO9001 international quality system.Moreover,ourproduct has acquired “high quality recommendation certificate" issued by American international quality authentication committee and “East China excellent technical product certificate " issued byJiangsu Science and Technology Association.Our company emphasizes visualization and createbrand, so we have been evaluated as both“AAA" enterprise by Jiangsu international qualification company and “regard contract and keep faith" enterprise by inaustry ana conmerte ueparuhen.
We have implemented a strict and complete quality system, which ensures each product meet quality requirement of customers. In addition,all of our product before shipping must do testing.
Recently we export machine to Germany USA, UK Cyprus,Russia Uzbikistan Poland, Australia,Serbia, Ukraine, Mexico, Argentina, Peru, Brazil, Paraguay,Malaysia,Vietnam, Thailand, Philip-pines, Singapore,Taiwan, Hong Kong, Turkey, Saudi Arabia, Sultan of Oman, Kenya, Bangla-desh...
Q: Delivery period:
A: Around 20-60 days, delivery perious will vary from different types of machin-ery,
Q: Payment of terms:
A: Acceptable payment of terms: T/T, L/C, Cash after signing the contract, firstdeposit 30% of total as prepayment,and rest 70% after FAT but before shipment
Q: Quality Warranty:
A: We guarantee all the machines are brand new, and we design and manufac-ture as per approbation by user; We guarantee every set of our machine after shipment is have guarantee period 15 months, during warranty period we will provide technician debuggingonsite, or free spare parts caused by the malfunction of machines. We guarantee we reply the user's bewilderment within 24 hrs after receive noti-fication.
Q: Package of merchandise: A: First pack with plastice membrane wrap on the surface of machines,external we use plywood case, finall load in container.
Q: What is service when we place an order with you?
A: First we invite you to visit our factory, and negotiate the tecnnology andchoose model and type of machines for users, and give feasible advice of eachmaterial. Secondly we thank for you if you visit our factory to do FAT before shipment,give us your advice and we modify the machine if not meet the user's satisfac-tion. Last, we will dispatch at least 1 experienced and responsible technician togo to abroad for guide commissioning and train the operators. lf no need onsitecommissioning, we provide video guidance.
Q: Which information do you require then you could choose model subse-quently?
A: We need to know the information as below: What is your material name? What is the initial moisture percentage before drying?What is the residual moisture percentage after drying? What is the heating temperature your material can undertake during dryingprocess? What is the heating source, steam, electricity, natural gas or others?Last but important, what is capacity how many kgs/h before drying or afterdrying?
