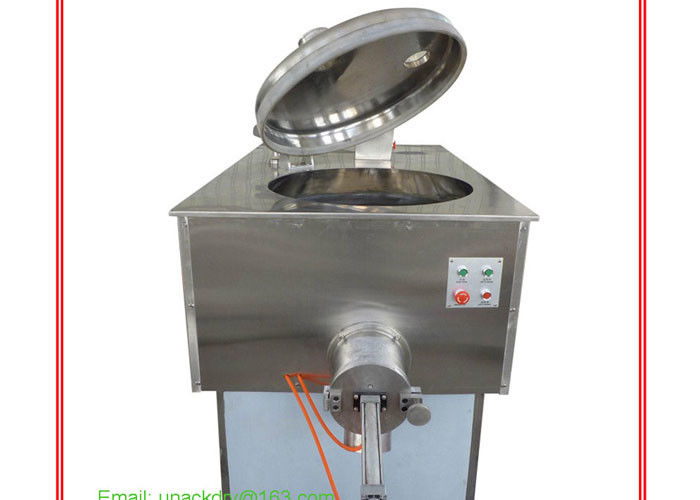

SUS316L Rapid Mixer Granulator
Product Details:
| Place of Origin: | China |
| Certification: | SGS CE ISO |
| Model Number: | GHL150 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1units |
|---|---|
| Price: | USD4900-57890 per unit |
| Packaging Details: | plywood or shipping container |
| Delivery Time: | 25 working days |
| Payment Terms: | Western Union, MoneyGram, D/A, L/C, D/P, T/T |
| Supply Ability: | 1000units per year |
|
Detail Information |
|||
| Material: | SUS304 SUS316L Food Grade GMP | Standard: | GMP |
|---|---|---|---|
| Product: | Round Granules | Cutter: | Speed Viable |
| Color: | Stainless Steel | Voltage: | 380V 220V |
| High Light: | SUS316L Rapid Mixer Granulator,SGS Rapid Mixer Granulator |
||
Product Description
High Speed Shear Granulator Ghl -150 For Pharmaceutical
China high speed shear granulator Working Principle
The powder raw material and adhesive in a cylinder are fully mixed at the bottom to become a humid soft material. Then it is cut by high-speed cutter and become uniform granules .
China high speed shear granulator Characteristics
China high speed shear granulator adopts horizontal cylinder structure, its structure reasonable.
Air seal shaft for to drive. When washing , it can be changed to water.
Fluidized Granulation, the granule is around ball shape. Its ow ability is good.
Compared to traditional process, 25% of adhesive can be reduced and the drying time is short.
The dry mixing time is 2 minutes and the granulating time is 1-4 minutes.
Compared to the traditional process , 4-5 times of ef ¬ciency is raised.
Dry mixing ,humid mixing and granulating are ¬nished in the same sealed container.
The whole operation has strict safe and protective measures.
Jacket type might be adopted on request.
China high speed shear granulator Technical Parameter
| Type | A | B | C×D | E | F |
| 50 | 320 | 950 | 1250×800 | 970 | 1650 |
| 150 | 420 | 1000 | 1350×800 | 1050 | 1750 |
| 200 | 500 | 1100 | 1650×940 | 1450 | 2050 |
| 250 | 500 | 1160 | 1650×940 | 1400 | 2260 |
| 300 | 550 | 1200 | 1700×1000 | 1400 | 2310 |
| 400 | 670 | 1300 | 1860×1100 | 1550 | 2410 |
| 600 | 750 | 1500 | 2000×1230 | 1750 | 2610 |
| Name | Type | ||||||
| 50 | 150 | 200 | 250 | 300 | 400 | 600 | |
| Volume L | 50 | 150 | 200 | 250 | 300 | 400 | 600 |
| output capacity kg/batch | 15 | 50 | 80 | 100 | 130 | 200 | 280 |
| admix speed r.p.m | 200/400 | 180/270 | 180/270 | 180/270 | 140/220 | 106/155 | 80/120 |
| admix power kw | 4/5.5 | 6.5/8 | 9/11 | 9/11 | 13/16 | 18.5/22 | 22/30 |
| cutting speed r.p.m | 1500/3000 | 1500/3000 | 1500/3000 | 1500/3000 | 1500/3000 | 1500/3000 | 1500/3000 |
| cutting power kw | 1.3/1.8 | 2.4/3 | 4.5/5.5 | 4.5/5.5 | 4.5/5.5 | 6.5/8 | 9/11 |
| compressed air consumption m3/min | 0.6 | 0.9 | 0.9 | 0.9 | 1.1 | 1.5 | 1.8 |
| weight kg | 500 | 800 | 1000 | 1300 | 1800 | 2200 | 2600 |
