Mirror Polished Fluid Bed Equipment , Spice Continuous Fluidized Bed Dryer

Mirror Polished Fluid Bed Equipment , Spice Continuous Fluidized Bed Dryer

  • High Light

    fluidized bed equipment

    ,

    static fluid bed dryer

  • Name
    Fluid Bed Dryer
  • Material
    SUS 304, SUS316L
  • Suitable Drying Material
    Flavor, Seasoning, Addtive
  • Evaporation Capacity
    50-120KG/HOUR
  • Heating Source
    Electricity Or Steam
  • Packing
    40HQ Container
  • Drying Temperature
    30-200
  • Place of Origin
    China
  • Certification
    SGS, CE, ISO
  • Model Number
    GFG
  • Minimum Order Quantity
    1unit
  • Price
    USD10990-59000/unit
  • Packaging Details
    shipping container
  • Delivery Time
    35 working days
  • Payment Terms
    L/C, D/A, D/P, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    1000unit per year

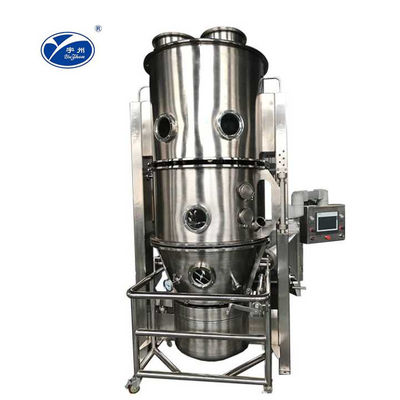

Mirror Polished Fluid Bed Equipment , Spice Continuous Fluidized Bed Dryer

Mirror Polished Fluid Bed Equipment , Spice Continuous Fluidized Bed Dryer





Application

Fluidized fluid bed dryer For Food powder or granule drying, chemical powder drying, medicine powder drying.

Used for boiling drying of particle material with a size of 0. 1-6mm, and suitable for speedy drying of finished product, intermediate (semi finished product) in such trades aspharmaceutical, food, light industry and chemical etc.





Working principle
Used the draught of fan, natural air flows through purifying cabinet, heater and froms high speed air flow in the hole of material bed, which makes the material into boiling(fluidized)status, during the large area touch between gas and solid phases, mosture of material is veaporated quickly, and thus reaching the purpose of drying.



Main feature
Hopper is sealed with frame by way of O type air cell, featuring convenient handling. Hopper is equipped with agitator inside, materail is dried uniformly and speedily without boiling dead angle.
Filter bag and cylinder automatic bag shake unit are supplied on the top to avoid materialloss.
With air purifying cabinet, it usesoutdoor air has no influence on air purifying load of purified workshop.
High drying speed, drying time can be freely set up according to features of materials, normally at 10-30min.





The temperature during the fluided boiling drying process usually changes in three stages: in the first stage, the temperature of the material to be dried is gradually heated from room temperature to the wet bulb temperature of the hot air; in the second stage, the dried material keeps the hot air wet. The temperature of the ball is constant until the moisture content in the material to be dried is reduced to the critical humidity. At this time, there is no more free water in the material to be dried; then, the temperature rises to the third stage, and the dried material loses the bond between the particles. Moisture.



Operating speed: In order for the particulate solid material to operate under a high efficiency boiling dryer, the operating speed must be above the critical fluidization velocity and below the take-up speed.

Critical drying speed: When the fluid in the dryer reaches the drying point, that is, the bed pressure loss is equal to the mass of solid particles per unit area of ​​the bed, the drying speed at this time is called the critical drying speed (also known as the initial drying speed). Or the minimum drying speed), which is the lowest speed of the drying operation.



Take-out speed: The take-off speed of the material to be dried is numerically equal to the settling speed of the material to be dried. When the gas exceeds this speed, the material will be taken out of the drying chamber.

Item Model
GFG-60 GFG-100 GFG-120 GFG-150 GFG-200 GFG-250 GFG-300
Volume of hopper Liter 200 300 400 500 650 800 1000
Production capacity kg/batch 30-60 50-100 60-120 70-150 100-200 120-250 150-300
Air inlet temperature 0C       50-100
Fan Blast M3/h 2576 3488 3619 5114 5153 6032 7185 7766
Air pressure Pa 5639 5080 7109 5869 9055 7610 7400 7218
Motor power kw 7.5 11 11 15 18.5 22 22 30
Agitator Speed r/min 11 11 11 11 11 11 11
Motor power kw 0.55 1.1 1.1 1.5 1.5 2.2 2.2
Steam Pressure Mpa 0.4 0.4 0.4 0.4 0.6 0.6 0.6
Consumption kg/h 140 170 210 240 230 280 280
Compressed air Pressure Mpa 0.5 0.5 0.5 0.5 0.5 0.5 0.5
Consumption m3/h 0.6 0.6 0.6 0.9 0.9 0.9 0.9
Weight of main frame kg 1000 1200 1200 1500 1700 2000

2200
