Sludge Vacuum Drying Machine

Sludge Vacuum Drying Machine

Product Details:

Place of Origin: Jiangsu, China
Brand Name: Yuzhou
Certification: ISO14001 ISO9001

Payment & Shipping Terms:

Price: $20,000.00/Sets 1-9 Sets
Packaging Details: wooden packing . Special fumigation -free wooden material . Or according to customer requirement .
Supply Ability: 10 Set/Sets per Month zkg series sludge vacuum dryer with Blender
Get Best Price Contact Now

Detail Information

Type: Vacuum Drying Equipment Application: Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing
Voltage: Customized Key Selling Points: High Safety Level
After-sales Service Provided: Online Support, No After-sales Service, Video Technical Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Engineers Available To Service Machinery Overseas Applicable Industries: Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Retail, Environment
Heating Source: Steam+electricity Capacity: As U Requirement
Material: SS304/SS316L Usage: Dry Paste Slurry Material In Chemical Pharmaceutical
High Light:

Sludge Vacuum Drying Machine


500L Vacuum Drying Machine

Product Description

Zkg Vacuum Drying Machine Electricity Series Sludge Vacuum Dryer With Blender


1. suitable for the slurry material.paste material,powder material

2. dry in low temperature,heat sensitive material

3. poisonous material oxidation material

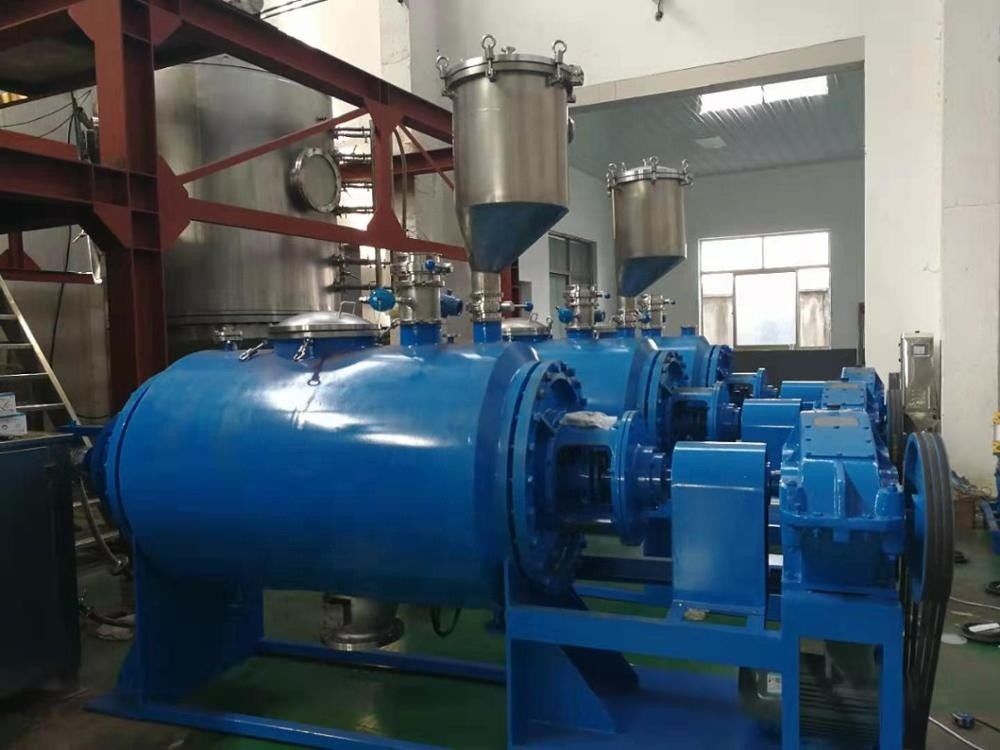

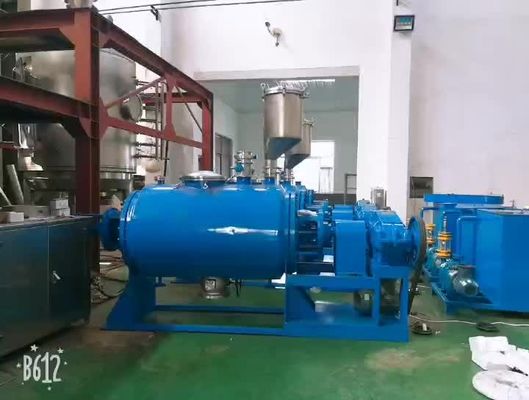

ZKG vacuum harrow drying equipment is new type high-efficiency horizontal vacuum drying equipment. It adopts jacketed structure, and the jacket can be heated by steam, hot water or conduction oil. The jacket transfers the heat to the inner wall of the shell via conduction or radiation. The dried materials are added into the dryer through an opening in the middle of the machine shell. Constant stirring of the revolving harrow causes the materials move back and forth. The surface contacting with the inner wall of the shell constantly updates, resulting in high drying rate and uniform finished products.
ZKG vacuum harrow dryer equipment is designed for drying slurry, pasty, powdery materials, thermosensitive materials requiring low-temperature drying, easily oxidized materials, as well as explosive materials, toxic materials and the materials whose organic solvents should be recovered. This vacuum drying equipment is applied to the pharmaceutical, nourishment, food, chemical and other industries.
1.       ZKG vacuum harrow drying equipment uses large-area interlayer heating, which can obtain large heat-transfer surface and high heat efficiency.
2.       This vacuum drying equipment with a stirring device can improve the heating uniformity and smoothly dry slurry and pasty materials.
3.       It is easy to operate and clean, which can effectively reduce labor intensity.
4.       If this vacuum harrow dryer adopts internal concurrent heating, the heating area will be greatly increased.


Model Volume (L) Working Volume (L) Heating Area (m2) Stirring Rate (rmp) Power (kw) Interlayer Pressure (Mpa) Pressure in the Container (Mpa)
ZKG-500 500 300 3.2 8 to 18 4 0.3 -0.096 to 0.15
ZKG-750 750 450 4.4 8 to 18 5.5 0.3 -0.096 to 0.15
ZKG-1000 1000 600 5.1 8 to 18 5.5 0.3 -0.096 to 0.15
ZKG-1500 1500 900 6.3 8 to 18 7.5 0.3 -0.096 to 0.15
ZKG-2000 2000 1200 8.1 8 to 18 7.5 0.3 -0.096 to 0.15
ZKG-3000 3000 1800 10.6 8 to 18 11 0.3 -0.096 to 0.15
ZKG-4000 4000 2400 12.3 8 to 18 15 0.3 -0.096 to 0.15
ZKG-5000 5000 300 14.2 8 to 18 18.5 0.3 -0.096 to 0.15
ZKG-6000 6000 3600 16.5 8 to 18 22 0.3 -0.096 to 0.15

Sludge Vacuum Drying Machine 1

Company introcuction

Sludge Vacuum Drying Machine 2

1. We use high-end imported brands of instruments and processing machines, to create superior quality machine for you ; yutong makes you feel free about the after-sales service.
2. We provide the spare parts with the cost of the spare parts themselves for life long time .

3. We can make the machine based on the customer requirements .

4. We have strong team ,and can help customer to design his process of the product .

5. Guarantee /warranty :1year. calculating from the day of successful installation and commissioning.

Factory inside

Sludge Vacuum Drying Machine 4

Sludge Vacuum Drying Machine 6

Processing&Our team

Sludge Vacuum Drying Machine 8



Introduce the product to the customer in detail,answer the question raised by customer carefully;

 Sale service

1. Ensure product with high quality and pre-commissioning before delivery;

2. Delivery on time;

3. Provide full set of documents as customer’s requirements.

After-sale service

Provide considerate services to minimize clients’ worries.

1. Assist clients to prepare for the first construction scheme;

2. Install and debug the equipment;

3. Train the first-line operators;

4. Examine the equipment;5.Take initiative to eliminate the troubles rapidly;

6. Provide technical support;

7. Establish long-term and friendly relationship.

Service commitment

1. Provide clients one-year warranty to make sure the machine work well;

2. We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely;

3. Send every client a preferential quotation.


Sludge Vacuum Drying Machine 10


Sludge Vacuum Drying Machine 12

Sludge Vacuum Drying Machine 14


1. Are you a manufacturer ,trading company or a third party

We are a manufacturer ,we set in 2000.

2. Where is your factory located

Our company is located in Changzhou city ,Jiansu province,China .it is In the middle of Shanghai and nanjing

Want to Know more details about this product
I am interested in Sludge Vacuum Drying Machine could you send me more details such as type, size, quantity, material, etc.
Waiting for your reply.
