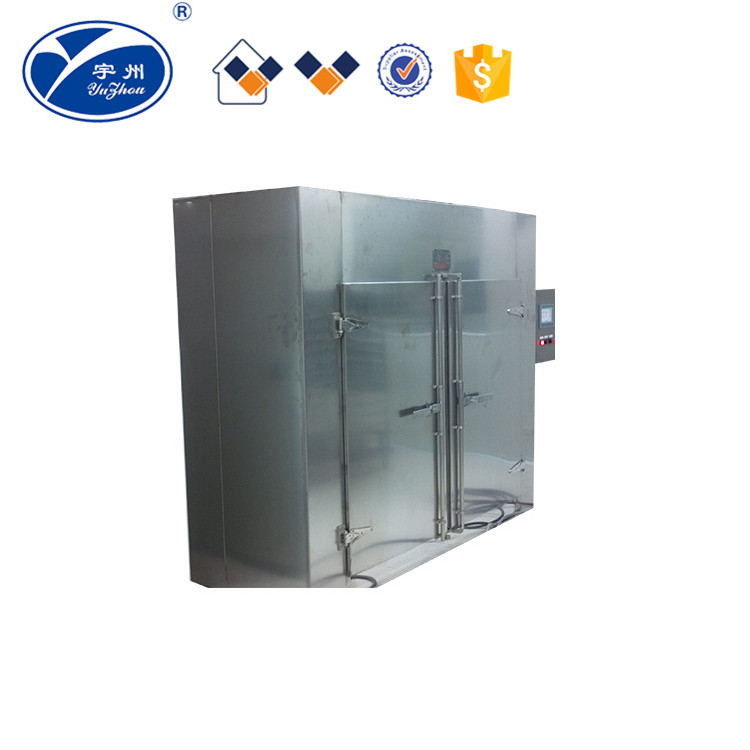

Moringa Powder Vacuum Tray Dryer
Product Details:
Place of Origin: | Jiangsu, China |
Brand Name: | Yuzhou |
Certification: | ISO9001 ISO14001 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 Set |
---|---|
Price: | Negotiable |
Packaging Details: | wooden packing . Special fumigation -free wooden material . Or according to customer requirement . |
Delivery Time: | 45-90days |
Payment Terms: | L/C, T/T |
Supply Ability: | 20 Set/Sets per Month Moringa powder leaf drying machine |
Detail Information |
|||
Type: | Drying Oven | Application: | Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing |
---|---|---|---|
Key Selling Points: | High Safety Level | Warranty: | 1 Year |
After-sales Service Provided: | Online Support, No After-sales Service, Video Technical Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Engineers Available To Service Machinery Overseas | Applicable Industries: | Hotels, Building Material Shops, Manufacturing Plant, Farms, Restaurant, Retail, Food Shop, Energy & Mining, Food & Beverage Shops |
Name: | Moringa Powder Leaf Drying Machine With Hot Air Circulating System | Heating Source: | Steam+electricity,far Infrared,steam |
Material: | SS304/316L/carbon Steel | Usage: | Pigment,varnish,banger,electric Elements |
High Light: | Moringa Powder vacuum tray dryer,SS304 vacuum tray dryer |
Product Description
Moringa Powder Leaf Drying Machine With Hot Air Circulating System Industrial Tray Dryer
Moringa powder leaf drying machine with hot air circulating system
1. Heat source can be steam,electricity,far infrared or steam +electricity.
2. Save plenty of energy cource and increase profit of enterprise.
3. Convenient of installation maintenace
Descriptions
CT-C hot air circulating oven is equipped with axial flow fan and automatic constant temperature control system. The computer control system is also available. The thermal efficiency of our hot air circulation tray dryer is up to 70%. The biggest characteristic of this drying equipment is that part of the hot air circulates inside the oven, and the whole circulating process is closed, thus enhancing heat transfer and energy saving.
Features of Hot Air Circulating Oven
1. This hot air circulation tray dryer has wide range of application, as general drying equipment can dry all kinds of materials.
2. Heat source can use steam, conduction oil, electricity, hot water and far infrared.
3. It has wide range of temperature adaptation, the normal temperature can be heated to 140ºC by steam and 350ºC by electric heating.
4. CT-C hot air circulation tray dryer has the advantages of small noise, stable movement, automatic temperature control, easy installation and maintenance.
5. The dimension of the standard drying tray is 460×640×45 mm.
6. Drying trolley can be manufactured with mobile type, easy to move out for cleaning and maintenance.
Application
CT-C hot air circulating oven is mainly used for heat curing, drying and dehydrating materials and products in food, pharmaceutical, chemical, feed, pesticide, light industry, heavy industry and other industries. Typical materials dried by our drying equipment are dehydrated vegetables, fruits, crude drugs, Chinese herbal pieces, powder, particles, dissolved medicines, pigments, sausage, plastic resin, electrical equipment and baking finish.
Technical Parameters of Hot Air Circulating Oven
Model | CT-C-O | CT-C-IA | CT-C-I | CT-C-II | CT-C-IIA | CT-C-III | CT-C-IIIA | CT-C-IV |
Each Drying Amount (kg/lot) | 30 | 60 | 120 | 240 | 240 | 360 | 360 | 480 |
Evaporation Area (m2) | 4.7 | 7.1 | 14.1 | 28.3 | 28.3 | 42.4 | 42.4 | 56.5 |
Radiator Area (m2) | 8 | 15 | 24 | 48 | 48 | 72 | 72 | 96 |
Steam Consumption (kg/h) | 7 | 15 | 20 | 40 | 40 | 60 | 60 | 80 |
Electrical Heating Power (kw) | 6-9 | 6-9 | 15 | 30 | 30 | 45 | 45 | 60 |
Fan Delivery (m2/h) | 3450 | 3450 | 3450 | 6900 | 6900 | 10350 | 10350 | 13800 |
Fan Power (kw) | 0.45 | 0.45 | 0.45 | 0.45 × 2 | 0.45 × 2 | 0.45 × 3 | 0.45 × 3 | 0.45 × 4 |
Temperature Difference (ºC) | ± 1 | ± 1 | ± 2 | ± 2 | ± 2 | ± 2 | ± 2 | ± 2 |
Outline Dimension (mm) (W × D × H) | 1400 × 1200 × 2000 | 1400 × 1200 × 2000 | 2300 × 1200 × 2000 | 2300 × 2200 × 2000 | 4280 × 1200 × 2270 | 2260 × 3200 × 2000 | 3240 × 2200 × 2000 | 4280 × 2200 × 2270 |
Auxiliary Drying Cart (sets) | 0 | 1 | 2 | 4 | 4 | 6 | 6 | 8 |
Auxiliary Drying Tray (pcs) | 16 | 24 | 48 | 96 | 96 | 144 | 144 | 192 |
Total Weight (kg) | 500 | 820 | 1580 | 1800 | 1880 | 2100 | 2210 | 2800 |
Company introcuction
1. We use high-end imported brands of instruments and processing machines, to create superior quality machine for you ; yutong makes you feel free about the after-sales service.
2. We provide the spare parts with the cost of the spare parts themselves for life long time .
3. We can make the machine based on the customer requirements .
4. We have strong team ,and can help customer to design his process of the product .
5. Guarantee /warranty :1year. calculating from the day of successful installation and commissioning.

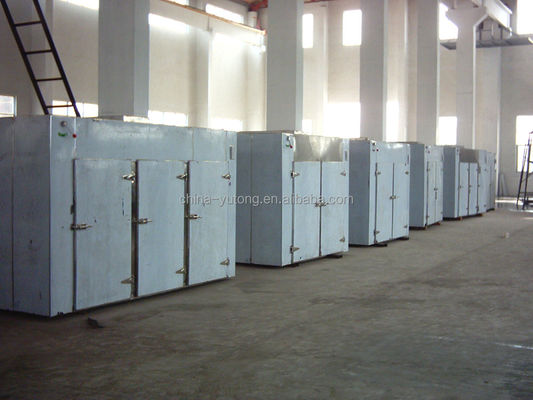

Factory inside

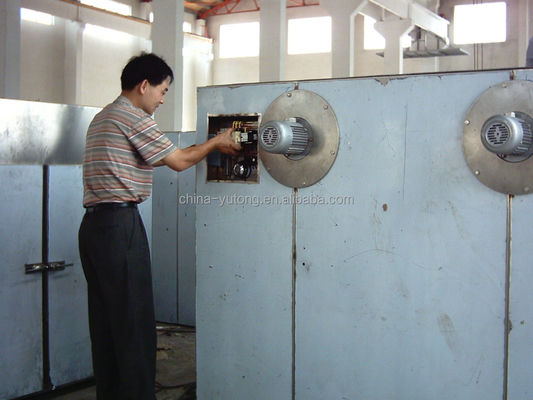

Processing&Our team
Service
Pre-service
Introduce the product to the customer in detail,answer the question raised by customer carefully;
Sale service
1. Ensure product with high quality and pre-commissioning before delivery;
2. Delivery on time;
3. Provide full set of documents as customer’s requirements.
After-sale service
Provide considerate services to minimize clients’ worries.
1. Assist clients to prepare for the first construction scheme;
2. Install and debug the equipment;
3. Train the first-line operators;
4. Examine the equipment;5.Take initiative to eliminate the troubles rapidly;
6. Provide technical support;
7. Establish long-term and friendly relationship.
Service commitment
1. Provide clients one-year warranty to make sure the machine work well;
2. We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely;
3. Send every client a preferential quotation.
Centrificate
Exhibition
FAQ
1. Are you a manufacturer ,trading company or a third party
We are a manufacturer ,we set in 2000.
2. Where is your factory located
Our company is located in Changzhou city ,Jiansu province,China .it is In the middle of Shanghai and nanjing
