30 - 300C Industrial Food Dehydrator , Static Tray Dryer For Food Industry
Product Details:
| Place of Origin: | China |
| Certification: | SGS, CE, ISO |
| Model Number: | CT-C-I |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1unit |
|---|---|
| Price: | USD10990-59000/unit |
| Packaging Details: | shipping container |
| Delivery Time: | 35 working days |
| Payment Terms: | L/C, D/A, D/P, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000unit per year |
|
Detail Information |
|||
| Name: | Tray Dryer/ Hot Air Circulation Drying Oven | Material: | SUS 304, SUS316L |
|---|---|---|---|
| Type: | Static Drying | Tray Number: | 24-216 |
| Heating Source: | Electricity Or Steam | Packing: | 40HQ Container |
| Highlight: | 300C industrial food dehydrator,30C tray dryer for food industry |
||
Product Description

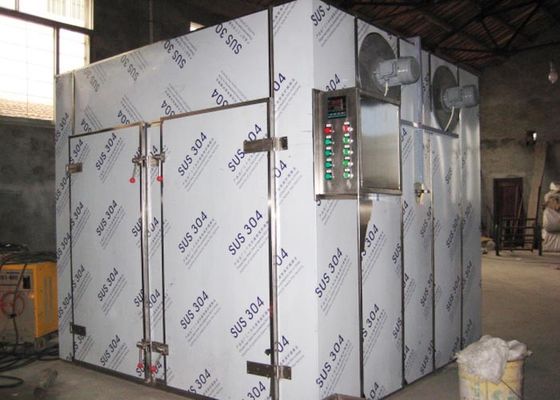

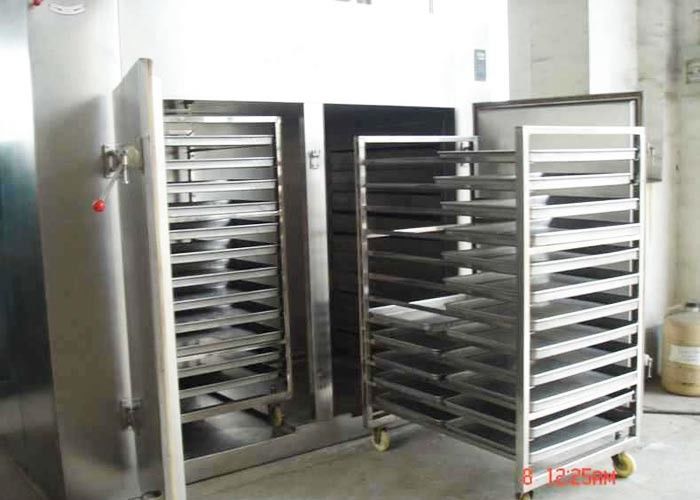

Custom Industrial Food Dehydrator , Electric Tray Dryer Machine 30 - 300 ℃ Heating Temperature
Hot air circulation tray dryer working principle and 6 major structures
The hot air circulation oven air circulation system adopts a fan circulation air supply mode, and the air circulation is uniform and efficient. The wind source is driven by a circulating air supply motor (using a non-contact switch) to drive the wind wheel through the heater, and the hot air is sent out, and then the air is taken into the air chamber through the air passage, and then the used air is sucked into the air passage to be recirculated as a wind source. Use for heating. Ensure indoor temperature uniformity. When the temperature value swings due to the operation of the switch door, the air circulation system quickly resumes the operation state until the set temperature value is reached.
Application:
Hot air circulating oven for heating the pharmaceutical, chemical, food, agricultural products, aquatic products, light industry materials, curing, drying dehydration. Such as raw materials, medicine water, extracts, powders, granules, dehydrated vegetables.
1. This machine is kind of hot air circulation drying oven machine, it is widely used in food industry, pharmaceutical industry, chemical industry, and other industries.
2. This drying oven machine is applicable to dry and dewater the vegetables, fruits, Chinese medicinal herb, pigment, baking finish, and other materials.
3. This drying oven adopts axial flow fan, equipped with automatic constant temperature control system and computer control system for choice. The thermal efficiency of this drying oven can reach about 70%
Heating source:electricity or steam
Heating temperature: 30-140℃ (use steam); 30-300℃ (use electricity)
Technical Specification:
| Model | Evaporation eara(sqm) | Volume(mcbm) | Drying capacity (kg/batch) |
Steam consumption (kg/h) |
Heating powder (kw) |
Fan volume (cbm) |
Fan Power (kw) |
Dimension (mm) |
Weight kg) |
| CT-C-0 | 7.1 | 1.3 | 60 | 10 | 9 | 3450 | 0.45 | 1380*1200*2000 | 820 |
| CT-C-1 | 14.1 | 2.6 | 120 | 18 | 15 | 3450 | 0.45 | 2260*1200*2000 | 1580 |
| CT-C-2 | 28.3 | 4.9 | 240 | 36 | 30 | 6900 | 0.45*2 | 2260*2200*2000 | 1800 |
| CT-C-2A | 28.3 | 4.9 | 240 | 36 | 30 | 6900 | 0.45*2 | 4280*1200*2270 | 1880 |
| CT-C-3 | 42.4 | 7.4 | 360 | 60 | 45 | 10350 | 0.45*3 | 2260*3200*2000 | 2100 |
| CT-C-3A | 42.4 | 7.4 | 360 | 60 | 45 | 10350 | 0.45*3 | 3240*2200*2000 | 2210 |
| CT-C-4 | 56.5 | 10.3 | 480 | 80 | 60 | 13800 | 0.45*4 | 4280*2200*2270 | 2800 |
| CT-1 | 14.1 | 2.6 | 120 | 20 | 15 | 3450 | 1.1 | 2480*1200*2375 | 1220 |
| CT-2 | 28.3 | 4.9 | 240 | 40 | 30 | 5230 | 1.5 | 2480*2200*2438 | 1530 |
| CT-3 | 42.4 | 7.4 | 360 | 60 | 45 | 9800 | 2.2 | 3430*2200*2620 | 2110 |
| CT-4 | 56.5 | 10.3 | 480 | 80 | 60 | 11800 | 3 | 4460*2200*2620 | 2300 |
