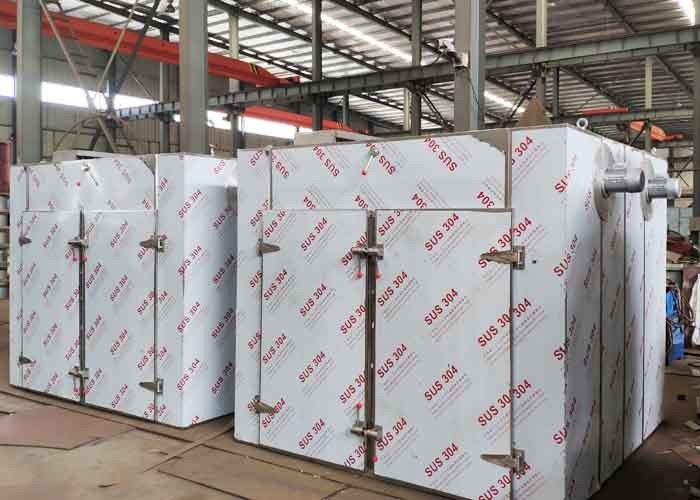

Pharmaceutical 240Kg/Batch Industrial Tray Dryer SGS Approval

Pharmaceutical Industrial Tray Dryer Big Drying Capacity 240 Kg / Batch Long Service Life

Hot air circulation industrial tray dryer is a commonly used oven product, and an oven with a circulation fan can be called a hot air circulation oven because the wind direction is horizontal or vertical regardless of the structure of the oven. Today we mainly introduce the working principle and scope of the hot air circulation oven, hoping to help users better apply the product.

Hot air circulation industrial tray dryer structure

The hot air circulation oven generally has a heating pipe, and the oven with the circulation fan can be called a hot air circulation oven, because regardless of the structure of the oven, the wind direction is horizontal or vertical, and in the end, the hot air is circulated inside, so it can be called a hot air circulation oven. Such as electric blast oven, open door high temperature sterilization oven and so on. However, most of the hot air circulating ovens in the general industry are specifically referred to as the oven shown above. Other ovens are evolved from the oven shown above. For example, with the requirements of high temperature sterilization, the fan is changed to an air cooled centrifugal circulating fan. When the door is opened before and after, the air duct has also been changed, and it becomes a high temperature sterilization oven. The hot air cycle shown above is divided into five standard models. They are single-door bicycles, two-door two-cars, two-door four-cars, three-door six-cars, and four-door eight-cars.

The hot air circulation oven air circulation system adopts a fan circulation air supply mode, and the air circulation is uniform and efficient. The wind source is driven by a circulating air supply motor (using a non-contact switch) to drive the wind wheel through the heater, and the hot air is sent out, and then the air is taken into the air chamber through the air passage, and then the used air is sucked into the air passage to be recirculated as a wind source. Use for heating. Ensure indoor temperature uniformity. When the temperature value oscillates due to the operation of the switch door, the air circulation system quickly returns to the operating state until the set temperature value is reached.

Hot air circulation industrial tray dryer application

Hot air oven is suitable for baking chemical gas and food processing to be baked goods, ink curing, paint film drying, etc., widely used in electronics, motors, telecommunications, electroplating, plastics, hardware chemicals, instruments, printing, pharmaceuticals , PC board, powder, impregnation, spraying, glass, wood building materials, etc. precision baking, drying, tempering, preheating, shaping, processing, etc.; internal heat cycle, baked objects are evenly heated. It is also used for heat curing, drying and dehydration of materials in pharmaceutical, chemical, food, agricultural and sideline products, aquatic products, light industry and other industries. Such as raw materials, Chinese medicine drinking water, extracts, powders, granules, dehydrated vegetables, etc.

Technical Specification:
