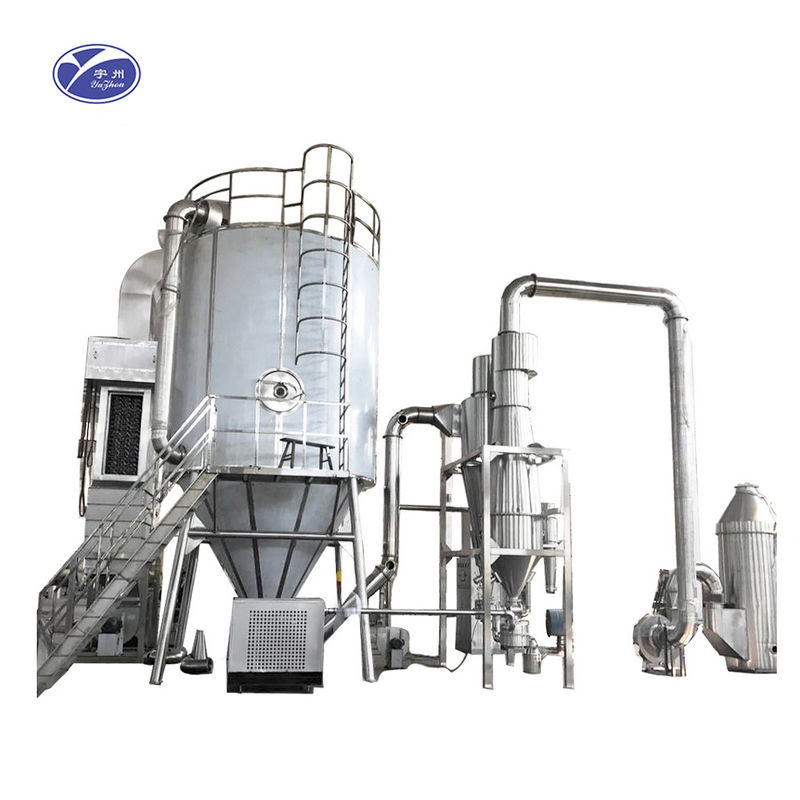

Evaporate 5-2000 Kgs Water Per Hour Centrifugal Pilot Spray Dryer
Product Details:
Place of Origin: | Jiangsu, China |
Brand Name: | Yuzhou |
Certification: | CE ISO SGS |
Model Number: | 5-2000 |
Payment & Shipping Terms:
Price: | $69,900.00/Sets 1-49 Sets |
---|---|
Packaging Details: | Standard Export Wooden Case |
Supply Ability: | 100 Set/Sets per Year |
Detail Information |
|||
Type: | Spray Drying Equipment | Condition: | New |
---|---|---|---|
Voltage: | 220v/380v | Power: | According To Model |
Dimension(L*W*H): | According To Model | Warranty: | 18 Months |
After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Weight: | According To Model |
Name: | ZPG Series Spray Dryer For Chinese Traditional Medicine Extract | Heating Source: | Steam + Electricity |
Product Name: | Chinese Herbal Extract | Raw Material: | SS304/SS316L |
Evaporation Capacity: | Evaporate 5-2000 Kgs Water Per Hour | Port: | Shanghai |
Highlight: | Centrifugal pilot spray dryer,SS304 pilot spray dryer |
Product Description
ZPG Centrifugal High Speed Pilot Spray Drying Machine For Milk Powder
Product Application
The machine adopts full close structure with primary middle and high effect air filter to fit one hundred thousand grade requirement, the tower body is provide cooling air jacket to make wall temperature less than 80 degree, when the material stops on wall will not to be preheated and softened, it increases the powder collection rate (95%) and will not appear mixing and sticking wall phenomenon.
Basic principle: High Speed centrifugal atomizing for the Milk is an application of centrifugal atomizing technique. It also uses high-speed atomizer to make liquid material into foggy droplet to contact with hot air fully to finish instant drying and get final powder products.
The ZPG Milk Spray Dryer is specially designed to solved the problems which previous LPG spray dryer meets during drying milk solution and plant extract products as follows:
1) Raw material sticks to wall and powder collection rate is low.
2) Raw material stays on wall for long time, resulting in coking and deterioration phenomenon.
3) It is difficult to clean and can not meet GMP requirement.
4) Low in output: LPG-150 type dryer can only process 50-60kgs/h of raw material liquid.
In view of above situation, according to property and process requirement of milk, our factory has researched and designed the special spray dryer the milk liquid and got patent. It solves the traditional difficult problems in drying the milk and product colour after drying is good. The dried raw material does not degenerate too. It raises the economic benefit for user greatly. There are special features as below compared to ordinary LPG type spray dryer.
1) Adopt three grade air filter, the inlet air reaches one hundred thousand grade
2) Adopt wall cooling device, the temperature of inner wall will be less than 80 degree, even if materials stay on inner wall surface, it will not be burnt and softened.
3) Its whole volume is 3.5 times of standard LPG high speed spray dryers.
4) Adopt quick-open washing device, it can meet requirement for varieties production, the CIP auto cleaning device can also equip if needed.
5) Adopt wet duster and no powder dust leak out. It is in conformity with the requirements of environment protection.
6) Air sweeping device is optional, the clean effect is satisfied for some product.
7) Adopt PLC control and touch screen system to display system processing.
8) Dehumidifier and centralized collect system can be used to avoid re-wetting and softening.
1) The atomizer on top of tower is equipped with cooling device to reduce atomizer temperature, at the same effectively eliminate material return to the top in eddy current and avoid preheat coking phenomenon.
2) Tower body and pipeline is equipped with manual quick-open cleaning hole and drainage hole. CIP automatic cleaning device can also equipped if needed.
3) A automatic control constant temperature feeding tank can be equipped.
4) Manual high pressure washing tools can be offered as accessories together with spray dryer.
5) All product contact parts are made with Stainless Steel, (or whole parts with stainless steel)
6) Product collect way adopts two grade cyclones and water film duster.
7) Air inlet temperature is automatic and continuous control which is interlocked with feeding.
8) An air sweeping device can be optional for some products.
