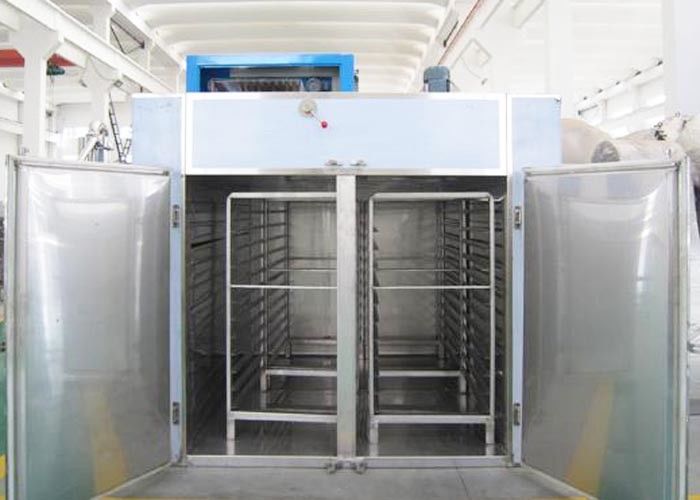

Stainless Steel 3450cbm Industrial Tray Dryer Food Dehydration
Product Details:
| Place of Origin: | China |
| Certification: | SGS, CE, ISO |
| Model Number: | CT-C-I |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1unit |
|---|---|
| Price: | USD10990-59000/unit |
| Packaging Details: | shipping container |
| Delivery Time: | 35 working days |
| Payment Terms: | L/C, D/A, D/P, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000unit per year |
|
Detail Information |
|||
| Name: | Tray Dryer/ Hot Air Circulation Drying Oven | Material: | SUS 304, SUS316L |
|---|---|---|---|
| Type: | Static Drying | Tray Number: | 24-216 |
| Heating Source: | Electricity Or Steam | Packing: | 40HQ Container |
| High Light: | 3450cbm Industrial Tray Dryer,Food Dehydration Industrial Tray Dryer |
||
Product Description
Professional Fruit And Vegetable Dehydrator Machine Cabinet Dryer For Food
Characteristics of hot air circulation industrial tray dryer 1. Hot air circulates in the oven, which has high thermal efficiency and saves energy. 2. Using forced ventilation, the air duct is provided in the oven, and the material is evenly dried. 3. The oven runs smoothly. Automatic temperature control, easy installation and maintenance. 4, a wide range of applications, can dry a variety of materials, is an ideal general drying equipment. Hot air circulation oven temperature: Hot air circulation oven has a wide range of applications, can dry a variety of industrial materials, is a general drying equipment, the general hot air circulation oven temperature range is room temperature ~ +250 ° C, high temperature type is room temperature ~ +500 ° C.
Stainless steel trays for load extract
Industrial for drying extract dryer application:
Hot air circulating industrial tray dryer for heating the pharmaceutical, chemical, food, agricultural products, aquatic products, light industry materials, curing, drying dehydration. Such as raw materials, medicine water, extracts, powders, granules, dehydrated vegetables.
1. This machine is kind of hot air circulation drying oven machine, it is widely used in food industry, pharmaceutical industry, chemical industry, and other industries.
2. This drying oven machine is applicable to dry and dewater the vegetables, fruits, Chinese medicinal herb, pigment, baking finish, and other materials.
3. This drying oven adopts axial flow fan, equipped with automatic constant temperature control system and computer control system for choice. The thermal efficiency of this drying oven can reach about 70%
Heating source:electricity or steam
Heating temperature: 30-140℃ (use steam); 30-300℃ (use electricity)
Technical Specification:
| Model | Evaporation eara(sqm) | Volume(mcbm) | Drying capacity (kg/batch) |
Steam consumption (kg/h) |
Heating powder (kw) |
Fan volume (cbm) |
Fan Power (kw) |
Dimension (mm) |
Weight kg) |
| CT-C-0 | 7.1 | 1.3 | 60 | 10 | 9 | 3450 | 0.45 | 1380*1200*2000 | 820 |
| CT-C-1 | 14.1 | 2.6 | 120 | 18 | 15 | 3450 | 0.45 | 2260*1200*2000 | 1580 |
| CT-C-2 | 28.3 | 4.9 | 240 | 36 | 30 | 6900 | 0.45*2 | 2260*2200*2000 | 1800 |
| CT-C-2A | 28.3 | 4.9 | 240 | 36 | 30 | 6900 | 0.45*2 | 4280*1200*2270 | 1880 |
| CT-C-3 | 42.4 | 7.4 | 360 | 60 | 45 | 10350 | 0.45*3 | 2260*3200*2000 | 2100 |
| CT-C-3A | 42.4 | 7.4 | 360 | 60 | 45 | 10350 | 0.45*3 | 3240*2200*2000 | 2210 |
| CT-C-4 | 56.5 | 10.3 | 480 | 80 | 60 | 13800 | 0.45*4 | 4280*2200*2270 | 2800 |
| CT-1 | 14.1 | 2.6 | 120 | 20 | 15 | 3450 | 1.1 | 2480*1200*2375 | 1220 |
| CT-2 | 28.3 | 4.9 | 240 | 40 | 30 | 5230 | 1.5 | 2480*2200*2438 | 1530 |
| CT-3 | 42.4 | 7.4 | 360 | 60 | 45 | 9800 | 2.2 | 3430*2200*2620 | 2110 |
| CT-4 | 56.5 | 10.3 | 480 | 80 | 60 | 11800 | 3 | 4460*2200*2620 | 2300 |
