SZG Concentration 20-160d Double Cone Dryer Mirror Polished
Product Details:
| Place of Origin: | China |
| Certification: | SGS, CE, ISO |
| Model Number: | SZG |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1unit |
|---|---|
| Price: | USD10990-59000/unit |
| Packaging Details: | shipping container |
| Delivery Time: | 35 working days |
| Payment Terms: | L/C, D/A, D/P, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000unit per year |
|
Detail Information |
|||
| Name: | Rotary Cone Vacuum Dryer | Material: | SUS 304, SUS316L |
|---|---|---|---|
| Type: | Rotary Cone | Rake: | Rotary Cone |
| Heating Source: | Electricity, Hot Water Or Steam | Packing: | 40HQ Container |
| Production: | 30days | ||
| High Light: | 20d double cone dryer,160d double cone dryer |
||
Product Description

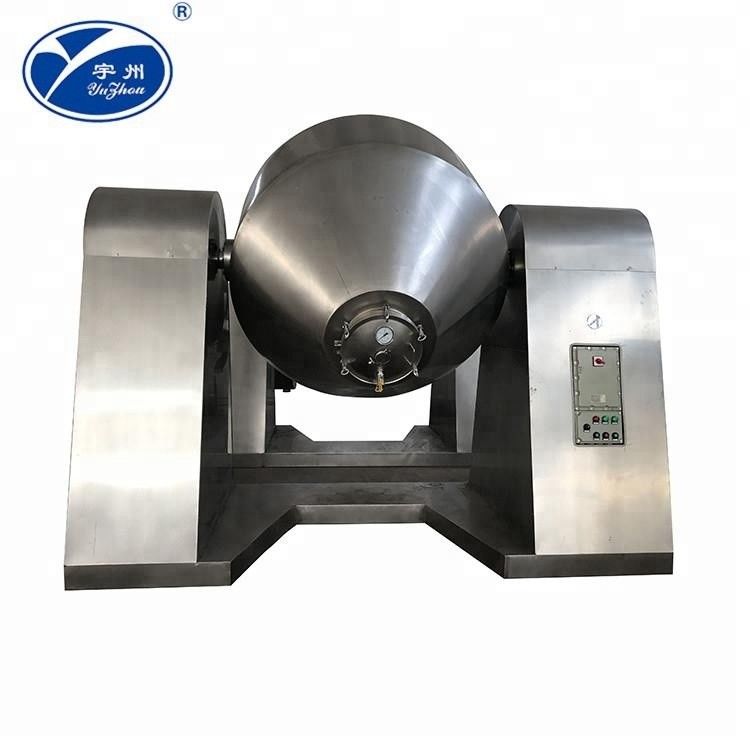

Mirror Polished Double Cone Rotary Vacuum Dryer For Heat Sensitive Powder Medicine Chemical
[Overview]
SZG double cone vacuum dryer is a new-generation drying device developed by our company on the basis of the domestic similar product technology. This machine adopts two-stage elastic connection of belt/chain, so the equipment runs smoothly. The specially designed process fully reflects the good concentricity of the two shafts. The heat medium and vacuum system use reliable mechanical seals or American technology rotary joints. The machine can be steplessly regulated and thermostat controlled.
The thermal medium quality of our products is from high temperature heat transfer oil, medium temperature steam and low temperature hot water. When drying viscous materials, the factory will specially design a “copy board” structure for you in the tank.
[Original]
A heat source (such as hot water, low pressure steam or heat transfer oil) is introduced into the sealed interlayer, and heat is transferred to the dried material in the inner casing.
Under the power drive, the tank rotates slowly, and the materials in the tank are continuously mixed to achieve the purpose of strengthening drying.
The material is in a vacuum state, and the atmospheric pressure drops so that the water (solvent) on the surface of the material reaches a saturated state and evaporates, and is discharged by the vacuum pump in time. The water (solvent) inside the material continuously penetrates, evaporates and discharges to the surface. The three processes are continuously carried out, and the material reaches the drying purpose in a short time.
[Feature]
When the oil is heated, the automatic constant temperature control can be used to dry the biochemical products and mineral raw materials. The temperature can be between 20-160 °C and the temperature difference is within ±2 °C.
High thermal efficiency, more than 2 times higher than the average oven.
Indirect heating, the material will not be contaminated and meet the requirements of “GMP”.
Equipment maintenance is easy and easy to clean.
[application]
It is suitable for the concentration, mixing, drying and low-temperature drying of powdery, granular and fibrous materials in chemical, pharmaceutical and food industries (such as biochemical products). It is more suitable for oxidative, volatile and heat sensitive. Drying of toxic materials and materials that do not allow damage to the crystals.
[Simple structure diagram]
Technical Parameter
| model name |
100 | 350 | 500 | 750 | 1000 | 1500 | 2000 | 3500 | 4500 | 5000 |
| volume inside the tank(L) |
100 | 350 | 500 | 750 | 1000 | 1500 | 2000 | 3500 | 4500 | 5000 |
| Volume to fill raw material(L) |
≤50 | ≤175 | ≤250 | ≤375 | ≤500 | ≤750 | ≤1000 | ≤1750 | ≤2250 | ≤2500 |
| Heating area (m2) |
1.16 | 2 | 2.63 | 3.5 | 4.61 | 5.58 | 7.5 | 11.2 | 13.1 | 14.1 |
| revolution ( rpm) |
4 - 6 | |||||||||
| power of motor (kw) |
0.75 | 1.1 | 1.5 | 2 | 3 | 3 | 4 | 5.5 | 7.5 | 11 |
| occupiedarea, L×W(mm) |
2160 ×800 |
2260 ×800 |
2350 ×800 |
2560 ×1000 |
2860 ×1300 |
3060 ×1300 |
3260 ×1400 |
3760 ×1800 |
3960 ×2000 |
4400 ×2500 |
| rotating height (mm) |
1750 | 2100 | 2250 | 2490 | 2800 | 2940 | 2990 | 3490 | 4100 | 4200 |
| design pressure inside the tank (MPa) |
-0.1-0.15 | |||||||||
| design pressure of jacket (MPa) |
≤0.3 | |||||||||
| working temp- erature(oC) |
In the tank≤85 jacket≤140 | |||||||||
| When use con- densator, |
2X-15A | 2X-15A | 2X-30A | 2X-30A | 2X-70A | JZJX300-8 | JZJX300-4 | JZJX600-8 | JZJX600-4 | JZJX300-4 |
| model and power of vacuum pump |
2KW | 2KW | 3KW | 3KW | 505KW | 7KW | 9.5KW | 11KW | 20.5KW | 22KW |
| When don,t use condensator, |
SK-0.4 | SK-0.8 | SK-0.8 | SK-2.7B | SK-2.7B | SK-3 | SK-6 | SK-6 | SK-9 | SK-10 |
| model and power of vacuum pump |
1.5KW | 2.2KW | 2.2KW | 4KW | 4KW | 5.5KW | 11KW | 11KW | 15KW | 18.5KW |
| Weight(kg) | 800 | 1100 | 1200 | 1500 | 2800 | 3300 | 3600 | 6400 | 7500 | 8600 |
