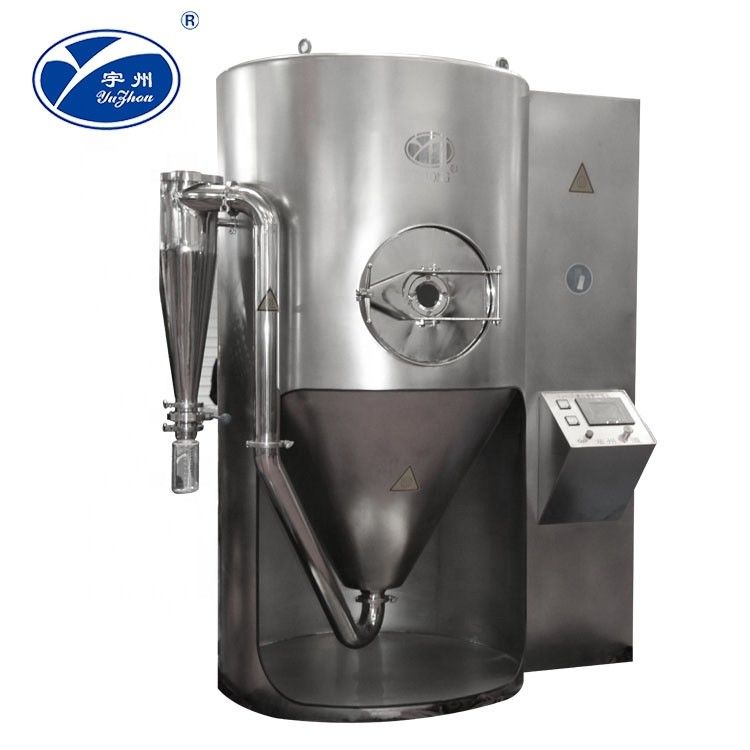

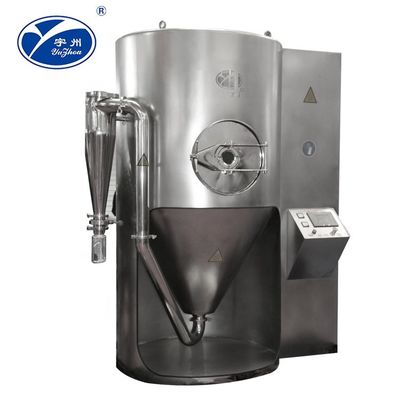

Yutong Milk Spray Dryer Machine , 5KG/H Centrifugal Atomizer Spray Dryer

Yutong Milk Spray Dryer Machine , 5KG/H Centrifugal Atomizer Spray Dryer

Product Details:

Place of Origin: China
Certification: SGS, CE, ISO
Model Number: LPG-10

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Price: USD10990-59000/unit
Packaging Details: shipping container
Delivery Time: 25 working days
Payment Terms: L/C, D/A, D/P, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000unit per year
Get Best Price Contact Now

Detail Information

Name: Spray Dryer Material: SUS 304, SUS316L
Nozzle: Centrifugal Atomizer Evaporation Capacity: 5KG/HOUR
Heating Source: Electricity Packing: 20GP Container
Output Capactiy: Depends On Temperature And Solid Content Packing Method: Export Wooden Case
High Light:

Yutong milk spray dryer machine

,

5KG/H centrifugal atomizer spray dryer

Product Description

Small Scale Spray Dryer Energy Saving , High Efficiencymilk Powder Dryer



Introduction:

The high speed centrifugal spray dryer is a type of continuous atmospheric dryer. The liquid material is sprayed in a mist by special equipment to be dried in contact with hot air. It is used to dry some heat-sensitive liquids, suspensions and viscous liquids such as milk, eggs, tannins and medicines. Also used for drying fuels, intermediates, soap powders and inorganic salts.


high speed centrifugal spray dryer features

The drying speed is fast, the surface area of ​​the liquid is greatly increased after atomization, and in the hot air flow, 95%-98% of the water can be evaporated instantaneously, and the drying time is only a few seconds, which is especially suitable for drying the heat sensitive material. The product has good uniformity, fluidity and solubility, and the product has high purity and good quality. The production process is simplified and the operation control is convenient. For liquids with a moisture content of 40-60% (up to 90% of special materials), it can be dried into a powder product at one time. After drying, no pulverization and screening are required, which reduces the production process and improves the purity of the product. The particle size, bulk density and moisture of the product can be adjusted within a certain range by changing the operating conditions, and the control and management are very convenient.



Spray Dryer classification working principle

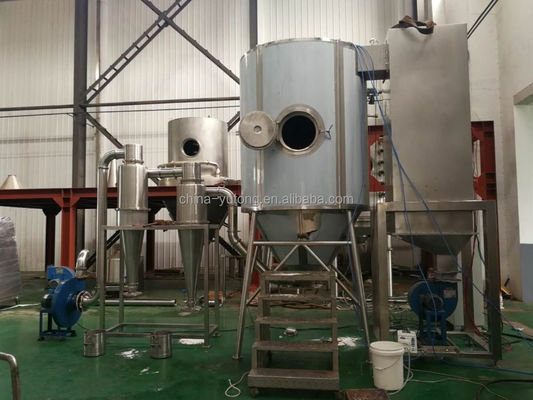

The air is filtered and heated into the air distributor at the top of the dryer, and the hot air enters the drying chamber in a spiral shape evenly. The liquid is sprayed into a very fine misty liquid droplet through a high-speed centrifugal atomizer at the top of the tower body, and it can be dried into a finished product in a short time by cocurrent contact with hot air. The finished product is continuously discharged from the bottom of the drying tower and the cyclone, and the exhaust gas is evacuated by the induced draft fan.



Spray dryer TECHNICAL PARAMETERS spray dryer

Spray dryer Parameter

LPG

-5

LPG

-10

LPG

-15

LPG

-20

LPG

-25

LPG

-50

LPG

-100

LPG

-150

LPG

-200

LPG

-500

LPG

-800

LPG

-1000

LPG

-2000

LPG

-3000

LPG

-4500

LPG

-6500

Inlet temperature(°C) 140-350automaticallycontrolled
Outlet temperature(°C) 80-90
Water evaporation capacity(kg/h) 5 10 15 20 25 50 100 150 200 500 800 1000 200 3000 4500 6500
Diameter of atomizing tray (rpm) 50 80 80 120 150 180-210 Decidedin accordance witn the requirementsof processs
Max Electric heating power(kw) 12 24 36 45 46 63 81 99
Dried powder restoring rate(%) ≥95
Length of convered area (m) 1.6 2.7 3 3.5 4 4.5 5.2 7 7.5 12.5 13.5 14.5 Decided in accordance the flow chart,
Width of convered area (m) 1.1 1.5 1.8 2 2.7 2.8 3.5 5.5 6 8 12 14

Condition of filed and requirements
