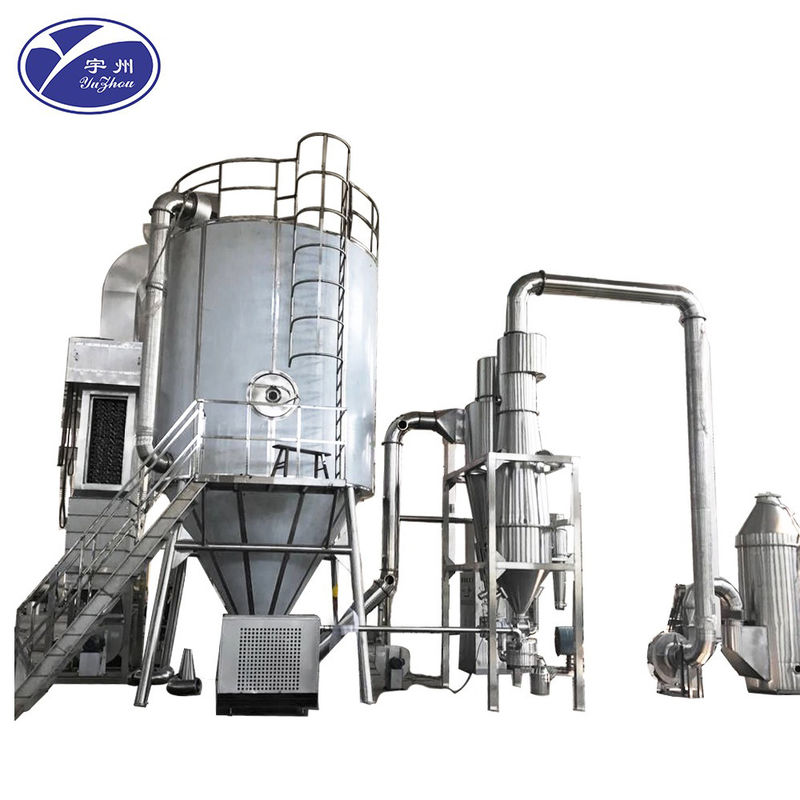

120 - 300C High Speed Centrifugal Spray Dryer For Medicine Extract
Product Details:
| Place of Origin: | China |
| Certification: | SGS, CE, ISO |
| Model Number: | LPG-10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1unit |
|---|---|
| Price: | USD10990-59000/unit |
| Packaging Details: | shipping container |
| Delivery Time: | 25 working days |
| Payment Terms: | L/C, D/A, D/P, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000unit per year |
|
Detail Information |
|||
| Name: | Spray Dryer | Material: | SUS 304, SUS316L |
|---|---|---|---|
| Nozzle: | Centrifugal Atomizer | Evaporation Capacity: | 10KG/HOUR |
| Heating Source: | Electricity | Packing: | 20GP Container |
| Drying Temperature: | 120-300 | Making Standard: | GMP |
| High Light: | Medicine Extract Centrifugal Spray Dryer,300C Centrifugal Spray Dryer |
||
Product Description
Medicine Extract High Speed Centrifugal Spray Dryer Drying Temperature 120 - 300 °C
High speed centrifugal spray dryer for liquid drying instructions
The LPG high speed centrifugal spray dryer is suitable for emulsions, suspensions, pastes and liquid solutions. In polymers and resins, fuels, paints, ceramics, glass, detergents, pesticides, carbohydrates, dairy products, detergents and surfactants, fertilizers, organic compounds and inorganic compounds of dry materials, especially in inorganic compounds Significant. The dryer can be widely used in pharmaceutical, chemical, food and other industries/areas
Principle spray dryer

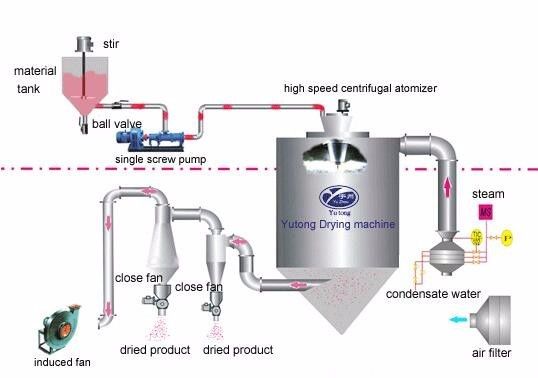

Air flows through the filter, the heater and dryer enter the top of the distributor, and a spiral of hot air enters the dryer evenly. The leaf grass feed from the filter is expected to pump the centrifugal atomizer on top of the dryer, spray the liquid into very small droplets, feed and hot air flow and contact, rapid evaporation of water, drying in a short time - Finished and finished products from the bottom drying tower and cyclone, exhaust from the fan
Equipped with spray dryer
The drying speed is faster, the general time is only 5-15 seconds, and it has instant drying characteristics.
The material takes a short time to complete the drying process, adapting to the dry heat sensitive material, and the material retains color, odor and taste.
FAQ before inquiry a high speed centrifugal spray dryer
The spray dryer is widely used in chemical, pharmaceutical, food and other industries.
1. Material name
2. Solid content; moisture content (%)
3. Processing capacity; evaporation capacity? (kg/h; liter/hour)
4. The biggest. Material withstand temperature
5. Heating source. Do you need electric heating compensation to increase the heating temperature?
Dryer classification working principle
The air is filtered and heated into the air distributor at the top of the dryer, and the hot air enters the drying chamber in a spiral shape evenly. The liquid is sprayed into a very fine misty liquid droplet through a high-speed centrifugal atomizer at the top of the tower body, and it can be dried into a finished product in a short time by cocurrent contact with hot air. The finished product is continuously discharged from the bottom of the drying tower and the cyclone, and the exhaust gas is evacuated by the induced draft fan.
Spray dryer delivery
Spray dryer TECHNICAL PARAMETERS spray dryer
| Spray dryer Parameter |
LPG -5 |
LPG -10 |
LPG -15 |
LPG -20 |
LPG -25 |
LPG -50 |
LPG -100 |
LPG -150 |
LPG -200 |
LPG -500 |
LPG -800 |
LPG -1000 |
LPG -2000 |
LPG -3000 |
LPG -4500 |
LPG -6500 |
| Inlet temperature(°C) | 140-350automaticallycontrolled | |||||||||||||||
| Outlet temperature(°C) | 80-90 | |||||||||||||||
| Water evaporation capacity(kg/h) | 5 | 10 | 15 | 20 | 25 | 50 | 100 | 150 | 200 | 500 | 800 | 1000 | 200 | 3000 | 4500 | 6500 |
| Diameter of atomizing tray (rpm) | 50 | 80 | 80 | 120 | 150 | 180-210 | Decidedin accordance witn the requirementsof processs | |||||||||
| Max Electric heating power(kw) | 12 | 24 | 36 | 45 | 46 | 63 | 81 | 99 | ||||||||
| Dried powder restoring rate(%) | ≥95 | |||||||||||||||
| Length of convered area (m) | 1.6 | 2.7 | 3 | 3.5 | 4 | 4.5 | 5.2 | 7 | 7.5 | 12.5 | 13.5 | 14.5 | Decided in accordance the flow chart, | |||
| Width of convered area (m) | 1.1 | 1.5 | 1.8 | 2 | 2.7 | 2.8 | 3.5 | 5.5 | 6 | 8 | 12 | 14 |
Condition of filed and requirements
|
|||
