Middle Spray Fluid Bed Dryer Processor , 0.5-1.5mm Fluid Bed Equipment
Product Details:
| Place of Origin: | China |
| Certification: | SOS SGS ISO |
| Model Number: | FL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1unit |
|---|---|
| Price: | USD 8990-98769 per unit |
| Packaging Details: | export wooden case or container |
| Delivery Time: | 25 working days |
| Payment Terms: | D/A, D/P, L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 500units per year |
|
Detail Information |
|||
| Name: | Fluid Bed Dryer Granulator | Model: | FL |
|---|---|---|---|
| Function: | Granulation And Drying | Spray: | Middle Spray |
| Granule Size: | 0.5-1.5mm | Granule Type: | Incompact |
| Capacity: | Batch By Batch | ||
| High Light: | 0.5mm fluid bed dryer processor,1.5mm fluid bed equipment |
||
Product Description

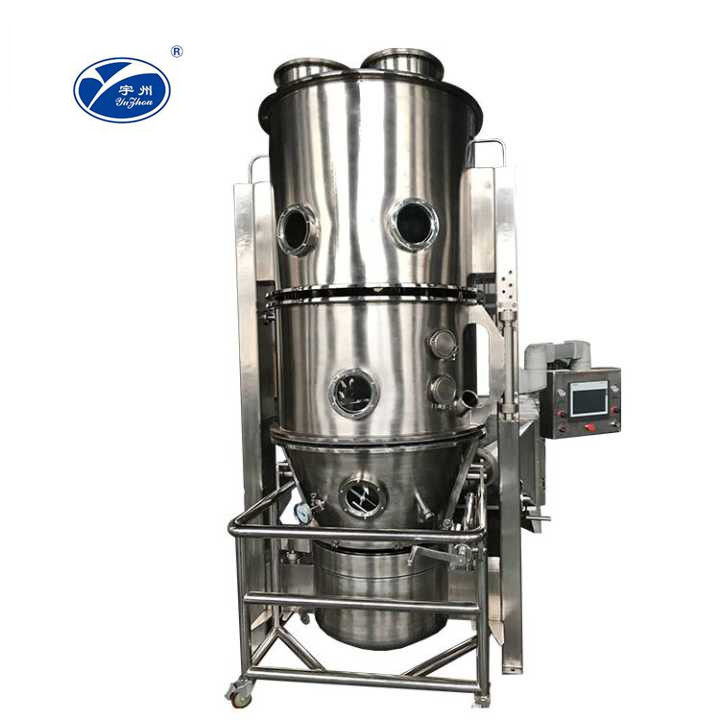

FL Model Fluidized Bed Granulator , Middle Spray Fluidized Bed Processor
Fluid bed Granulation Dryer Overview:
The fluid bed dryer granulator is a device (ie, a one-step granulator) that combines mixing, granulating, and drying in one and the same closed container.
The working principle of fluid bed dryer granulator:
The material powder particles are in an annular fluidized state in the raw material container (fluidized bed), are preheated and mixed by the purified heated air, atomized and sprayed the adhesive agent solution, and the several particles are aggregated into the binder. The agglomerates, due to the continuous drying of the hot air, cause the water in the pellet to evaporate, and the sticking agent solidifies. This process is repeated repeatedly to form ideal, uniform microporous spherical particles.
Fluid bed dryer granulator features:
The boiling granulator is easy to operate, easy to clean and easy to maintain. It can be granulated and dried quickly. Granulation, mixing, and drying are done in the same closed room to prevent contamination from contact with the outside world. Ensure that the intrinsic quality of the drug granules meets the requirements of “GMP”.
The contact material of the boiling granulator is made of 1Cr18Ni9Ti stainless steel. The heat energy of this machine is divided into steam heating and electric heating. The control part is divided into ordinary type and computer type, which can be selected by users.
Improve the fluidity and reduce the dust flying through powder granulation;
Improve its solubility by powder granulation;
Mixing, granulating, and drying to complete one-step granulation in one machine;
The anti-static filter cloth is used, and the equipment is safe to operate;
Set the pressure relief hole, and in the event of an explosion, the equipment personnel are not harmed;
The boiling granulator equipment has no dead angle, the loading and unloading material is light and fast, and it is rinsed clean and meets GMP specifications.
Fluid bed dryer granulator application range:
Granulation in the pharmaceutical industry: tablet granules, granules, capsule granules.
Granulation in the food industry: cocoa, coffee, milk powder, granule juice, condiments, etc.
Manufacturing in other industries: pesticides, feed, fertilizers, pigments, dye chemicals, etc., drying of powdery or granular wet materials.
Coating: granules, pellet protective layer, color preparation, sustained release, film, enteric coating, and the like.
Technical Parameter
| Specification | 3 | 5 | 15 | 30 | 45 | 60 | 90 | 120 | 150 | 200 | 300 | 500 |
| Volume(L) | 12 | 22 | 45 | 100 | 155 | 220 | 300 | 420 | 530 | 660 | 1000 | 1500 |
| Amount to be treated(kg/per time) | 1.5/4.5 | 4/6 | 10/20 | 15/45 | 25/65 | 40/80 | 60/120 | 80/160 | 90/200 | 100/300 | 150/450 | 300/300 |
| Power of fan(kw) | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 18.5 | 22 | 30 | 37 |
| Consume of steam 0.4MPa(kg/h) | 12 | 23 | 42 | 70 | 99 | 141 | 169 | 211 | 251 | 282 | 366 | 451 |
| Consume of compressed air m3/min | 0.3 | 1.3 | 0.3 | 0.4 | 0.4 | 0.6 | 0.6 | 0.9 | 0.9 | 0.9 | 1.3 | 1.5 |
| Noise,db(A) | (fan is installedseparately)≤75 | |||||||||||
| Overall dimension(m) | 1.0x 0.55x1.8 |
1.2x 0.6x2.1 |
1.25x 0.9x2.1 |
1.6x 0.9x2.3 |
1.65x 1.1x2.4 |
1.85x 1.25x3 |
1.85x 1.25x3 |
2.2x 1.65x3.1 |
2.27x 1.72x3.1 |
2.34x 1.9x3.5 |
2.8x 1.9x3.8 |
3x 2.55x4.2 |
Note:Model FG can not be equipped with granulating part.
