• 1 - 4 Layers Circular Vibro Sieve Machine Industrial Use
1 - 4 Layers Circular Vibro Sieve Machine Industrial Use

1 - 4 Layers Circular Vibro Sieve Machine Industrial Use

Product Details:

Place of Origin: China
Certification: SGS CE ISO
Model Number: RFT

Payment & Shipping Terms:

Minimum Order Quantity: 1units
Price: USD1490-9900 per unit
Packaging Details: plywood
Delivery Time: 7 working days
Payment Terms: Western Union, MoneyGram
Supply Ability: 10000units per year
Get Best Price Contact Now

Detail Information

Name: Circular Vibrating Screen Application: Power, Granule , Liquid
Layer: 1-4layers Material: Stainless Steel 304 Or 316L
Application Industries: Food, Chemical, Pharma, Etc Voltage: 110 220 380 400 415
High Light:

1Layer Vibro Sieve Machine


4Layers Vibro Sieve Machine

Product Description

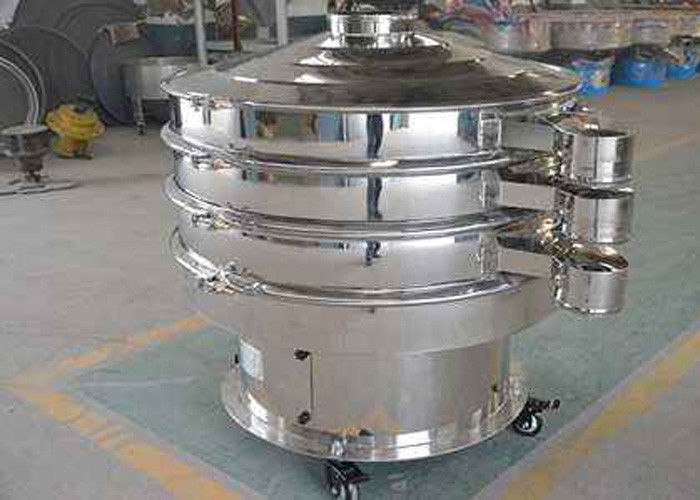

 Industrial Vibro Sieve Machine 1 -4 Layers Circular Vibrating Screen Mirror Polished


RFT series three-dimensional vibrating screen (screw vibrating screen) product overview:

The three-dimensional vibrating screening filter is also called a vibrating screen, a vibrating screen, a vibrating screen, a circular vibrating screen, a filter, and the like. The basic principle is: using the weight (unbalanced weight) installed on the upper and lower ends of the motor shaft, the rotary motion of the motor is converted into a horizontal, vertical, and inclined three-dimensional motion, and then this motion is transmitted to the screen surface to make the material The expansion of the involute movement on the screen surface, so the series of vibrating screen is called a vibrating screen. The vibrating screen has the advantages of long track of material running, high utilization of screen surface and high screening precision. Adjusting the phase angle of the weight of the upper and lower ends of the motor can change the trajectory of the material on the screen surface, and accurately screen and prognose different materials.

The vibrating screen is a general-purpose vibrating screening and filtering equipment, which has a good application in the production and processing of powder, small particles and liquid materials. The series of vibrating screens are divided into common type, gate type, edge type and ultrasonic type according to different applications. Ordinary type vibrating screen is mainly for the screening operation of ordinary powder and small particle materials; gate type vibrating screen is a kind of product derived from practical application, which is mostly used for screening of ultra-light and ultra-fine materials. Long-term screening operation, through the control of the opening and closing of the gate to achieve good screening purposes, this screening operation is mostly used in Chinese medicine powder, pollen and other industries; the edge-type rotary vibrating screen is based on the ordinary type of vibrating screen Filter-type screening equipment that increases the inlet and is designed to prevent liquid splashing through special angles has a wide range of applications in the paint, water filtration, pulp filtration and other industries.


The main features of the RFT series three-dimensional vibrating screen (vibration screen):

1. High efficiency, exquisite design and durability. Any powder and mucus can be sieved and filtered.

2, the mesh is not blocked, the powder does not fly, the finest screening can reach 500 mesh (28 microns), and the finest filtration can reach 5 microns.

3, the screen is used for a long time, the screen is convenient, only takes 3-5 minutes, the operation is simple, and the cleaning is convenient.

4, small size, light weight, easy to move, the direction of the discharge port can be adjusted arbitrarily, coarse and fine materials are automatically discharged, can be automated continuous operation or manual work.

5. The sieve machine can reach up to five layers, and six levels of materials are separated at the same time. It is recommended to use three layers.

6. Unique grid structure (separate mother-mesh separation type): The vibrating screen mesh net designed and manufactured by our company fully supports the fine mesh (working net), so the fine mesh can obtain a long service life and reduce the use of fine mesh consumables. It can reduce the cost in a long production process and can quickly change the fine mesh.

7. Super power: The rotary vibrating screen designed and manufactured by our company adopts the general YZUL series of new power exciter, which has outstanding three-dimensional power and high material yield and fine precision.

8, the screen machine is easy to maintain, can be used in single or multi-layer, and easy to assemble, one person can operate.

9, the machine is sturdy and durable, under normal circumstances, the sieve machine can be used for 15-20 years.

DH series three-dimensional vibrating screen (vibration screen) product application industry (part):

Food industry: sugar, salt, monosodium glutamate, flour, milk powder (granular, powder), starch, soy milk, fish meal, rice flour, vitamins, condiments, dextrin (liquid, powder), beverages, juice, soy sauce, pineapple juice, yeast Various products such as liquid (liquid), dehydrated vegetables and food additives.

Chemical industry: coatings, aluminum silver paste, pigments, paints (dry, liquid), rubber, carbon black, activated carbon (granules, powder), cosolvents, rubber powder, yuan Ming powder, resin (small particles, tiny spherical, powdery Various products such as granules, PVC resin powder, citric acid, polyethylene powder (powder, granules).

Pharmaceutical industry: pharmaceutical intermediates, medical accessories, Chinese medicine powder, western medicine powder (powder), western medicine liquid, Chinese medicine liquid (liquid), pharmaceutical raw material powder, etc.

Ceramics, abrasive kiln industry: sand (granular), clay, clay, mud (liquid), glaze (powder, liquid), kaolin, quartz sand, graphite, silicon carbide, feldspar, abrasive, refractory (powder) Shape, granular), glass raw materials and various kiln related materials.

Metal, metallurgy industry: tungsten carbide powder, lead powder, zinc oxide powder, silicon carbide, iron powder, titanium dioxide, alumina, alloy powder, electrode powder, manganese oxide, artificial black lead, electrolytic copper powder, electromagnetic material (particles, powder) , iron and copper and metals, powder metallurgical raw materials (powder, granular) and so on.

Other industries: paper filter, wastewater filtration, pollution treatment, etc.


Model Layer Power(KW) Mesh diameter(mm) Dimension(mm)
RFT-400 1S 0.18 or 0.37 360 720x430x600
2S 720x430x690
RFT-600 1S 0.37 or 0.55 560 600x600x740
2S 600x600x880
3S 600x600x1020
RFT-800 1S 0.55 or 0.75 760 800x800x840
2S 800x800x1000
3S 800x800x1160
RFT-1000 1S 0.75 or 1.1 930 970x970x950
2S 970x970x1110
3S 970x970x1270
RFT-1200 1S 1.1 or 1.75 1130 1170x1170x1090
2S 1170x1170x1250
3S 1170x1170x1410
RFT-1500 1S 1.5 or 2.2 1430 1470x1470x1110
2S 1470x1470x1270
3S 1470x1470x1430
