GMP 4-10Layers Cylinder Vacuum Drying Machine For Yeast YZG Series

GMP 4-10Layers Cylinder Vacuum Drying Machine For Yeast YZG Series

Product Details:

Place of Origin: Jiangsu, China
Brand Name: Yuzhou
Certification: ISO14001 ISO9001

Payment & Shipping Terms:

Price: $12,000.00/Sets 1-9 Sets
Packaging Details: wooden packing . Special fumigation -free wooden material . Or according to customer requirement .
Supply Ability: 28 Set/Sets per Year YZG Series Cylinder Vacuum Dryer Drying Equipment For Yeast
Get Best Price Contact Now

Detail Information

Type: Vacuum Drying Equipment Application: Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing
Condition: New Voltage: Customized
Power: Variable Dimension(L*W*H): Variable
Key Selling Points: Multifunctional Warranty: 1 Year
After-sales Service Provided: Online Support, No After-sales Service, Video Technical Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Engineers Available To Service Machinery Overseas Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Retail, Energy & Mining, Food & Beverage Shops
Weight: Variable Name: YZG Series Cylinder Vacuum Dryer,Drying Equipment For Yeast
Material: SS304/SS316L Heating Source: Electrical,steam Or Otheres
Capacity: As U Requirement Guarantee Period: One Year
Payment: TT L/C Delivery: 45-90days
Precision: High Precision Port: Shanghai Port Any Port In China
High Light:

GMP Vacuum Drying Machine

,

10Layers Vacuum Drying Machine

,

4Layers yeast dryer machine

Product Description

YZG Series Cylinder Vacuum Dryer,Drying Equipment For Yeast



1. Steriling before drying,when drying can not add impure things,fit GMP.

2. The heat source can be low-voltage steam and the waste heating steam.

3. Adopt the condenser,can retrieve the solvent in the supplies effectively.

4. for the heat sensitive material,polythene material,resolve easily in the high temperature.

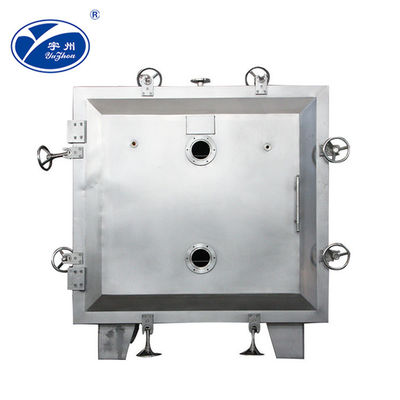

GMP 4-10Layers Cylinder Vacuum Drying Machine For Yeast YZG Series 0

Description:

Vacuum drying refers to dry the materials under vacuum condition, and use vacuum pump to extract air and wet, thus accelerating drying rate. YZG round vacuum dryer and FZG square vacuum dryer belong to static vacuum drying machine. Under vacuum conditions, the boiling point of material solvent is reduced, making this machine to dry unstable or thermosensitive materials. Additionally, the vacuum dryers have excellent sealing ability, so they are also used for drying the materials requiring solvent recovery or materials with poisonous gas.
Application:
YZG round vacuum dryers and FZG square vacuum dryers are widely used in the pharmaceutical, nourishment, food, chemical, dyes, electronics and other industries. Our vacuum drying machines accord with the requirements of GMP standards.

Features:
1.       Before drying, it can carry out disinfection treatment, and the drying process is with no impurity.
2.       Our static vacuum drying machine can get relatively higher drying rate at low temperature, and it can make full use of the heat.

3.       YZG round vacuum dryer is a kind of static vacuum dryer, which will not damage the shape of the material.

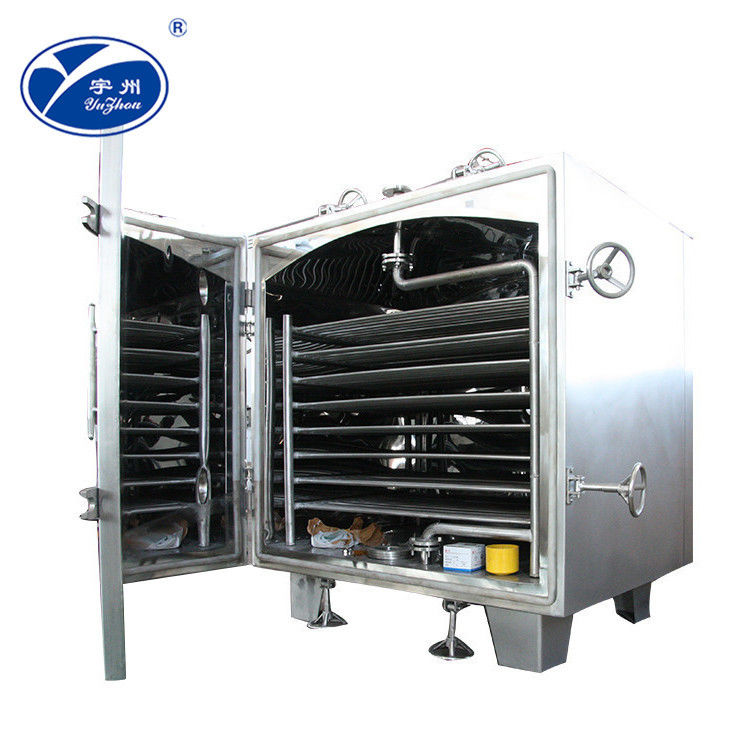

GMP 4-10Layers Cylinder Vacuum Drying Machine For Yeast YZG Series 2
Technical Parameters of Vacuum Drying Machine

Model YZG-600 YZG-1000 YZG-1400A FZG-8 FZG-15 FZG-30 FZG-38
Internal Size of Drying Oven (mm) 600 × 976 1000 × 1527 1400 × 2054 730 × 1200 × 1450 1500 × 1400 × 1220 2200 × 1500 × 1500 2200 × 1500 × 1600
External Size Of Drying Oven (mm) 1135 × 810 × 1020 1693 × 1190 × 1500 2386 × 1675 × 1920 930 × 1380 × 1540 1513 × 1924 × 2060 2400 × 1680 × 2050 2400 × 1680 × 2250
Layers of Drying Rack 4 6 8 8 8 8 10
Interlayer Distance (mm) 81 102 102 122 122 122 122
Size of Drying Tray (mm) 310 × 600 × 45 250 × 410 × 45 400 × 600 × 45 460 × 640 × 45 460 × 640 × 45 460 × 640 × 45 460 × 640 × 45
Drying Tray Number 4 12 32 16 32 64 80
Pressure of Drying Rack Tube (Mpa) ≤ 0.784
Temperature of Drying Rack (ºC) -35 to 150
No-load Vacuum degree within the tank (Mpa) -0.09 to 0.096
Weight of drying oven (kg) 250 800 1400 1680 2100 2850 3200

Company introcuction

GMP 4-10Layers Cylinder Vacuum Drying Machine For Yeast YZG Series 4

1. We use high-end imported brands of instruments and processing machines, to create superior quality machine for you ; yutong makes you feel free about the after-sales service.
2. We provide the spare parts with the cost of the spare parts themselves for life long time .

3. We can make the machine based on the customer requirements .

4. We have strong team ,and can help customer to design his process of the product .

5. Guarantee /warranty :1year. calculating from the day of successful installation and commissioning.

Factory inside

GMP 4-10Layers Cylinder Vacuum Drying Machine For Yeast YZG Series 6

GMP 4-10Layers Cylinder Vacuum Drying Machine For Yeast YZG Series 8

Processing&Our team

GMP 4-10Layers Cylinder Vacuum Drying Machine For Yeast YZG Series 10

Service

Pre-service

Introduce the product to the customer in detail,answer the question raised by customer carefully;

 Sale service

1. Ensure product with high quality and pre-commissioning before delivery;

2. Delivery on time;

3. Provide full set of documents as customer’s requirements.

After-sale service

Provide considerate services to minimize clients’ worries.

1. Assist clients to prepare for the first construction scheme;

2. Install and debug the equipment;

3. Train the first-line operators;

4. Examine the equipment;5.Take initiative to eliminate the troubles rapidly;

6. Provide technical support;

7. Establish long-term and friendly relationship.

Service commitment

1. Provide clients one-year warranty to make sure the machine work well;

2. We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely;

3. Send every client a preferential quotation.

Centrificate

GMP 4-10Layers Cylinder Vacuum Drying Machine For Yeast YZG Series 12

Exhibition

GMP 4-10Layers Cylinder Vacuum Drying Machine For Yeast YZG Series 14

GMP 4-10Layers Cylinder Vacuum Drying Machine For Yeast YZG Series 16

 FAQ

1. Are you a manufacturer ,trading company or a third party

We are a manufacturer ,we set in 2000.

2. Where is your factory located

Our company is located in Changzhou city ,Jiansu province,China .it is In the middle of Shanghai and nanjing
