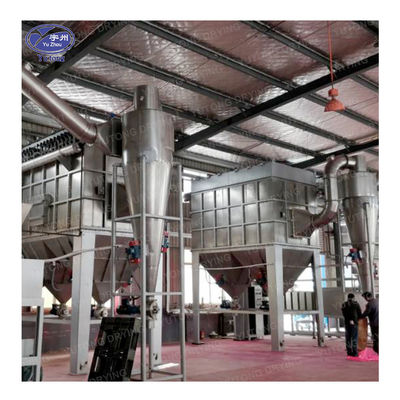

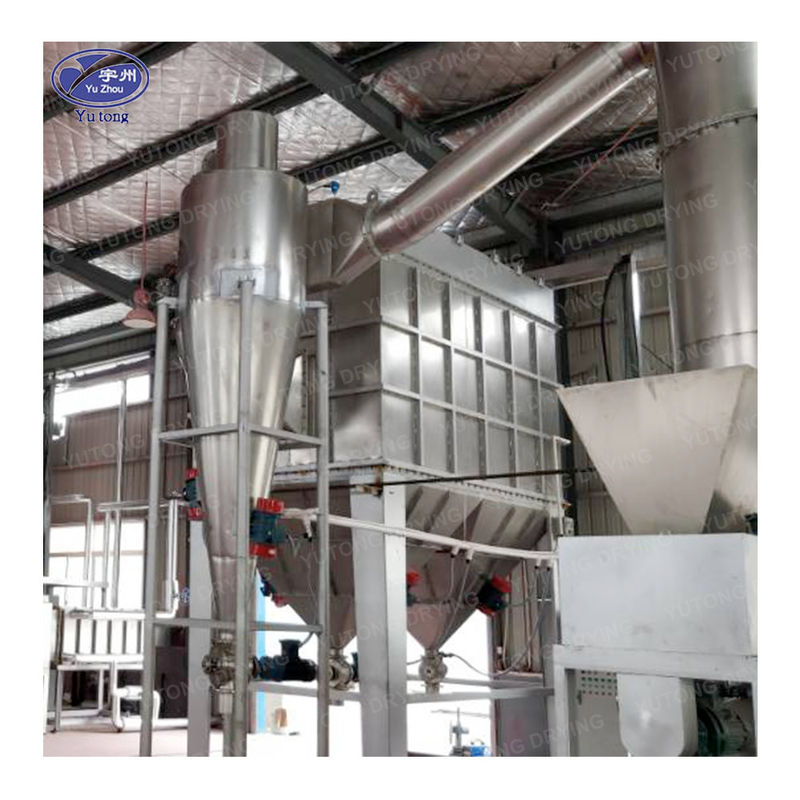

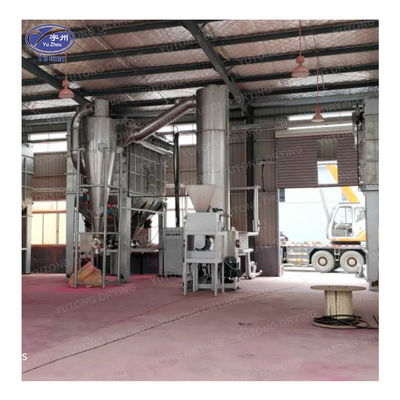

SXG Series Rotary Dyestuff Pigment Spin Flash Dryer High Speed

SXG Series Rotary Dyestuff Pigment Spin Flash Dryer High Speed

Product Details:

Place of Origin: Jiangsu, China
Brand Name: Yuzhou, Yuzhou
Certification: ISO9001:2008
Model Number: SXG

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: inner film package<br>outer plywood package
Delivery Time: 45-90days
Payment Terms: L/C, T/T
Supply Ability: 50 Set/Sets per Year
Get Best Price Contact Now

Detail Information

Type: Fluid Bed Drying Equipment Voltage: 220-440V
After-sales Service Provided: Engineers Available To Service Machinery Overseas Application: Chemical,pharmaceutical,food,plastic,oil,slag,salt,
Heating Source: Steam,electricity,gas,oil Capacity: Design According To Customer Requirement
Product Name: SXG Series High-Speed Rotating Dryer In Foodstuff Industry Usage: Drying Grinding Sieve
Installation: Engineer Guide Manufacturer: Jiangsu Yutong Drying Engineering Co., Ltd
High Light:

Pigment Spin Flash Dryer

,

20kg/h Spin Flash Dryer

,

SXG Series Rotary Flash Dryer

Product Description

Direct Good Price SXG Series High Speed Rotary Dyestuff Pigment Spin Flash Dryer





Type
Barrel diameter(mm)
Main machine dimensions(mm)
Main machine power(Kw)
Treatment wind capacity(m³/h)
Water evaporation quantity(kg/h)
SXG-2
200
250x2800
5-9
300-800
10-20
SXG-3
300
400x3300
8-15
600-1500
20-50
SXG-4
400
500x3500
10-17.5
1250-2500
25-70
SXG-5
500
600x4000
12-24
1500-4000
30-100
SXG-6
600
700x4200
20-29
2500-5000
40-200
SXG-8
800
900x4600
24-35
3000-8000
60-600
SXG-10
1000
1100x5000
40-62
5000-12500
100-1000
SXG-12
1200
1300x5200
50-89
10000-20000
150-1300
SXG-14
1400
1500x5400
60-105
14000-27000
200-1600
SXG-16
1600
1700x6000
70-135
18700-36000
250-2000



Principle:

The hot air enters into the bottom of the drier in tangent direction. Under the driving of the stirrer, a powerful rotating wind field is formed. The paste state materials enter into the drier through the screw charger. Under teh powerful function of the stirring vanes at high-speed rotation, the materials are distributed under the function of strike, friction and shearing force. The block state mate-rials will soon be smashed and contact the hot air fully and the materials are heated and dried. The dried materials after the dewatering will go up with the heatair flow. The step rings will stop and keep the big particles. Small particles will be discharged out of the drier from the ring center and will be restored by the whirl separator and dust remover. The hot fully dried or big piece materials will be sent to the wall of the equipment by centrifugal force function and be smashed again after they fall down to the bottom.







Description:

SXG Series rotating drier is developed by our company, and its technology is based on advanced techinology adored. The machine includes many superiority, such as reasonable design, compact stuction, widly utilization, great productive capacity, good quality, high effect and save energy, drying, grinding and sieve are completely in one equipment in once time. It eliminates pollution and the technology is reached international advance level. Flash drying machine has the original bearing induction cooling (water cooling), oil pump design with connection to send oil lubrication, cooling the bearing, seal performance, on the spindle design uses a half ring, motor using speed regulation, smooth transmission, low noise, the service life is ten times of similiar products.





Technical parameter:

SXG Series Rotary Dyestuff Pigment Spin Flash Dryer High Speed 0

 SXG Series Rotary Dyestuff Pigment Spin Flash Dryer High Speed 2



Profile of Jiangsu Yutong Drying Engineering Co., Ltd

Jiangsu Yutong Drying Engineering Co., Ltd is a famous enterprises specializing in drying, mixing, granulating, evaporating, concentrating and seperating equipment. Our company has passed authenticaion of ISO9001 international qualtiy system. Moreover, our products have acquired "high quality recommendation certificate" issued by American international quality authentication committee and "East China excellent technical product certificate" issued by Jiangsu Science and Technology Association. Our company emphasizes visualization and creat brand, so we have been evaluated as both "AAA" enterprise by Jiangsu International Qualification company and "regard contract and keep faith" enterprise by industry and commerce department.

Our company is located in a famous town of south of Yangtse River, Changzhou City (1 hour by train from Shanghai), occupying over 50 unit of area with over 11000 square meter building area. We have undeniable engineering and more than 100 sets equipments. Every year we can produce about 600 sets equipments and also can develope more than 30 types which are selling to all the country, such as Australia, America, Brail, Iran, Ukraine, Russia, Thailand, India, Vietnam, etc

Jiangsu Yutong Drying Engineering Co., Ltd stocks many stocks many kinds of trial machine for cutomer taking materials to test and examine. Welcome you come to Yutong for visiting and guiding!



 SXG Series Rotary Dyestuff Pigment Spin Flash Dryer High Speed 3



 SXG Series Rotary Dyestuff Pigment Spin Flash Dryer High Speed 5





Jiangsu Yutong Manufacture facilities:

 SXG Series Rotary Dyestuff Pigment Spin Flash Dryer High Speed 7







SXG Series Rotary Dyestuff Pigment Spin Flash Dryer High Speed 9

Outer plywood case package



Pre-service

Act as a good adviser and assistant of clients to enable them get rich and generous returns on their investments.

1. Introduce the product to the customer in detail, answer the question raised by customer carefully;

2.Make plans for choice according to the needs and special requirements of users in different sectors;

Sale service

1. Ensure product with high quality and pre-commissioning before delivery;

2. Delivery on time;

3.Provide full set of documents meet customer’s requirements.

After-sale service

Provide considerate services to minimize clients’ worries.

1.Assist clients to prepare for the first construction scheme;

2.Install and debug the equipment;

3.Train the first-line operators;

4. Examine the equipment;

5.Take initiative to eliminate the troubles rapidly;

6.Provide technical support;

7.Establish long-term and friendly relationship.

Service commitment

1. Provide clients one-year warranty to make sure the machine work well;

2.We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely;





FAQ

1. Q: Jiangsu Yutong Drying Engineering Co., Ltd is a manufacturer, trading company or a third party?

    A: We are a manufacturer, Yutong company established in 2000.



2. Q: Where is your factory located?

    A: Yutong is located in Changzhou city, Jiansu province, China. it is In the middle of Shanghai and Nanjing.



3. Q: How can I go to your factory?

    A: You can fly to shanghai Pudong or Hongqiao international airport directly, then take the high speed train to Changzhou station (just 1 hour from Shanghai to Changzhou by train) and we arrange to pick you up at Changzhou station to go to our company. Yutong company is around 30km away from Changzhou station.

If you are in China now, you can fly to Changzhou Benniu airport, or take train or bus to Changzhou city directly .

We sincerely welcome to visit our company at any time.



Principle of work matters that should be known before order:

1. What is product name?

2. How many kgs per hour before drying OR after drying?

3. How about the initial moisture content % before drying?

4. How about the initial moisture content % before drying?

5. Permissible residual water contents & after drying?

6. Control requirement: how many celcius the inlet air temperature need to be controlled?

7. How about outlet air temperature?

8. Energy that can be supplied: steam pressure supply capacity, electricity capacity, fuel coal, oil and air capacity?



9. Collecting powder method is bag filter or second cyclone?

10. Other special requirements, such as brand name of accessories, motor, decelerator, bearing; etc.
