Extrusion Spheronizer Rapid Mixer Granulator SUS304 Material
Product Details:
Place of Origin: | China |
Certification: | SGS CE ISO |
Model Number: | JW |
Payment & Shipping Terms:
Minimum Order Quantity: | 1units |
---|---|
Price: | USD1900-3890 per unit |
Packaging Details: | plywood or shipping container |
Delivery Time: | 25 working days |
Payment Terms: | Western Union, MoneyGram, D/A, L/C, D/P, T/T |
Supply Ability: | 1000units per year |
Detail Information |
|||
Material: | SUS304 SUS316L Food Grade GMP | Standard: | GMP |
---|---|---|---|
Product: | Round Ball Granules | Cutter: | Speed Viable |
Color: | Stainless Steel | Voltage: | 380V 220V |
Granule Size: | 0.2mm- 5mm | ||
Highlight: | Extrusion Spheronizer Rapid Mixer Granulator,SUS304 Rapid Mixer Granulator |
Product Description

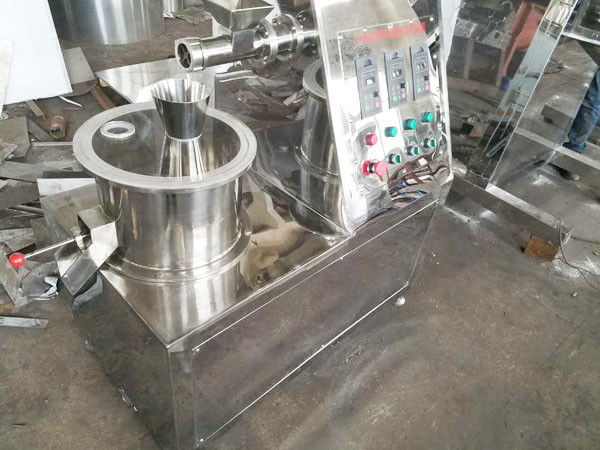

Extrusion Spheronizer Rapid Mixer Granulator SUS304 GMP Standard Long Service Life
JW Extrusion Spheronizer/ Extrusion Pellet Mill/ Pelletizer/ Extruder
This machine is made of beautiful pellets by setting the rotating centrifugal disc, blower and pneumatic spray gun. The wet granules made in the previous process are put into the rotating centrifugal disk, and then the rotating centrifugal disk is started after the blower is started, so that the wet particles are subjected to the buoyant air buoyancy, the rotating centrifugal force and the self-gravity, and the ring-shaped strands move. Form a ball with a very high degree of sphericity.
Extrusion Spheronizer/ Extrusion Pellet Mill/ Pelletizer/ Extruder working principle:
The uniformly mixed soft material is forced to pass through the screen under the squeezing of the trowel, and is cut by the squeegee to obtain cylindrical granules of uniform length.
JW Extrusion Rounding Machine - Extrusion Shot Blasting Machine Application Overview:
The powder and the binder are wet-mixed--extruded--centrifugal and thrown into the garden to complete the pelleting.
Features
※ The wet material---squeeze---the throwing garden is completed on one machine.
※ When the shot is shot, it can be sprinkled with dry powder and it is not easy to stick.
※ The surface of the pellet is dense, which is good for coating.
※ The pellets have uniform particle size and high sphericity.
External diameter of blasting barrel: 350mm
2, the diameter of the extrusion screw: 50mm;
3, blower power: 1.1KW
4, extruder power: 0.75KW
5, turntable motor power: 1.5KW
6, electric heating power: 1.5KW
7, dimensions: (length × width × height) about 1100 × 550 × 1300mm
