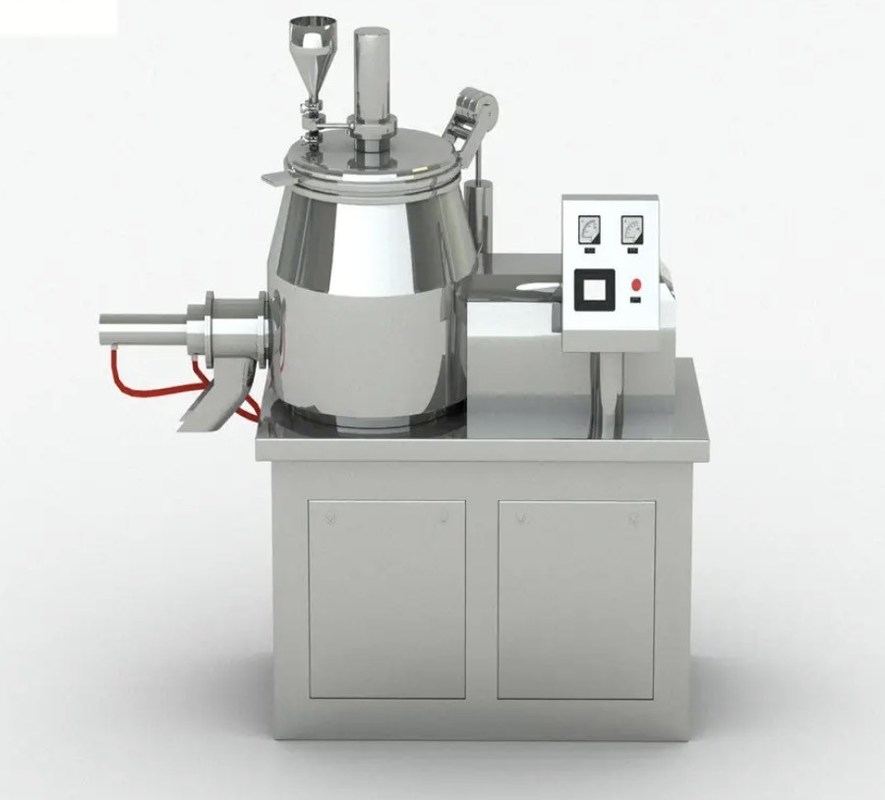

Ball Shaping High Speed Mixer Granulator SUS304 SUS316L Food Grade GMP
Product Details:
| Place of Origin: | China |
| Certification: | SGS CE ISO |
| Model Number: | JW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1units |
|---|---|
| Price: | USD1900-3890 per unit |
| Packaging Details: | plywood or shipping container |
| Delivery Time: | 25 working days |
| Payment Terms: | Western Union, MoneyGram, D/A, L/C, D/P, T/T |
| Supply Ability: | 1000units per year |
|
Detail Information |
|||
| Material: | SUS304 SUS316L Food Grade GMP | Standard: | GMP |
|---|---|---|---|
| Product: | Round Ball Granules | Cutter: | Speed Viable |
| Color: | Stainless Steel | Voltage: | 380V 220V |
| Granule Size: | 0.2mm- 5mm | ||
| High Light: | SUS304 high speed mixer granulator,SUS316L high speed mixer granulator |
||
Product Description
GMP food and phrama Rounding Machine/Ball Shaping Machine for granules
Application overview
The system is prepared by mixing the powder material with the binder to prepare a suitable soft material, and then extruding the soft material into columnar particles, and then putting it into a spherical shot blasting machine to form spherical particles with extremely high sphericity, and finally drying. The equipment dries off excess water to obtain the desired spherical particles.
System composition: mixing + preliminary granulation + full circle + dry + screening = finished product
Mixing: CH tank mixer or other mixer (mixing type); granulation: ZL rotary extrusion granulator or YK rocking granulator (granulation); full circle: QZL round granulator; drying: GFG high efficiency boiling dryer, FG boiling dryer, oven or others; screening: ZS vibrating screen or other.
See the following for each model
The system is prepared by mixing the powder material with the binder to prepare a suitable soft material, and then extruding the soft material into columnar particles, and then putting it into a spherical shot blasting machine to form spherical particles with extremely high sphericity, and finally drying. The equipment dries off excess water to obtain the desired spherical particles.
System composition: mixing + preliminary granulation + full circle + dry + screening = finished product
Mixing: CH tank mixer or other mixer (mixing type); granulation: ZL rotary extrusion granulator or YK rocking granulator (granulation); full circle: QZL round granulator; drying: GFG high efficiency boiling dryer, FG boiling dryer, oven or others; screening: ZS vibrating screen or other.
See the following for each model
QZL round granulator
The wet granules made in the previous process are put into the rotating centrifugal disc, so that the wet granules are subjected to the buoyant air buoyancy, the rotating centrifugal force and the self-gravity, and are in the form of a circular rope strand, which is sprayed from the reasonable direction through the multi-fluid spray gun to the moving material layer. Into the formulation liquid, to form a pellet with a high degree of sphericity, the principle is similar to a rotating fluidized bed.
Typical applications: omeprazole pellets, aspirin pellets, feed enzyme pellets, sodium sulfate pellets, compound paracetamol
Pills, catalysts, composite VB2 film pellets.
Features:
*Blowers can be equipped with motor frequency conversion first, the whole grain is faster, the finished product is more beautiful
*The rotating disc adopts two-speed motor to maximize the appearance of the product.
*The material is operated in a closed container, no dust flying, safe operation
The wet granules made in the previous process are put into the rotating centrifugal disc, so that the wet granules are subjected to the buoyant air buoyancy, the rotating centrifugal force and the self-gravity, and are in the form of a circular rope strand, which is sprayed from the reasonable direction through the multi-fluid spray gun to the moving material layer. Into the formulation liquid, to form a pellet with a high degree of sphericity, the principle is similar to a rotating fluidized bed.
Typical applications: omeprazole pellets, aspirin pellets, feed enzyme pellets, sodium sulfate pellets, compound paracetamol
Pills, catalysts, composite VB2 film pellets.
Features:
*Blowers can be equipped with motor frequency conversion first, the whole grain is faster, the finished product is more beautiful
*The rotating disc adopts two-speed motor to maximize the appearance of the product.
*The material is operated in a closed container, no dust flying, safe operation
Technical Data
| Specification | 230 | 400 | 550 | 700 | 1000 | 1300 |
| Power (Kw) | 0.75 | 2.2 | 3 | 3.7 | 5.5 | 7.5 |
| Capacity (kg/h) | 2.5-4 | 5-48 | 10-50 | 40-80 | 70-200 | 100-300 |
