Herb Roots Powder 35-150C Industrial Vacuum Dryer Electricity Heating
Product Details:
| Place of Origin: | China |
| Certification: | SGS, CE, ISO |
| Model Number: | FZG |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1unit |
|---|---|
| Price: | USD10990-59000/unit |
| Packaging Details: | shipping container |
| Delivery Time: | 35 working days |
| Payment Terms: | L/C, D/A, D/P, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000unit per year |
|
Detail Information |
|||
| Name: | Vacuum Tray Dryer | Material: | SUS 304, SUS316L |
|---|---|---|---|
| Type: | Static Drying | Tray Number: | 8-96 |
| Heating Source: | Electricity, Hot Water Or Steam | Packing: | 40HQ Container |
| High Light: | 35C Industrial Vacuum Dryer,150C Industrial Vacuum Dryer |
||
Product Description

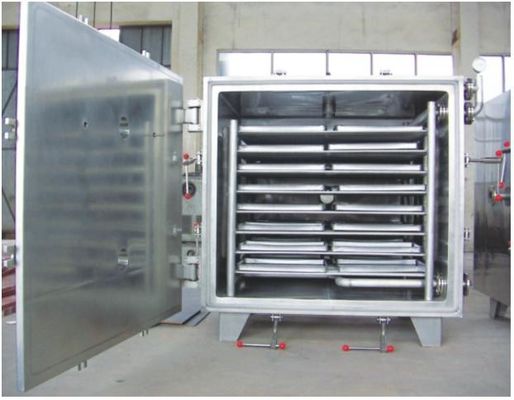

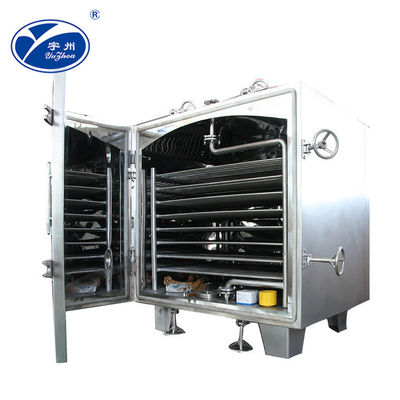

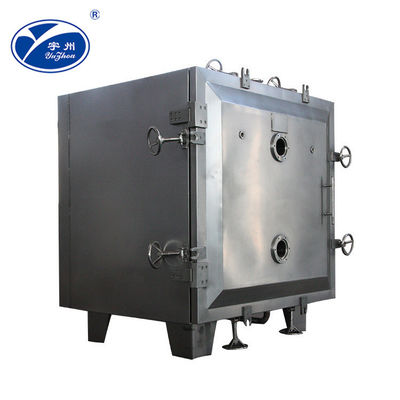

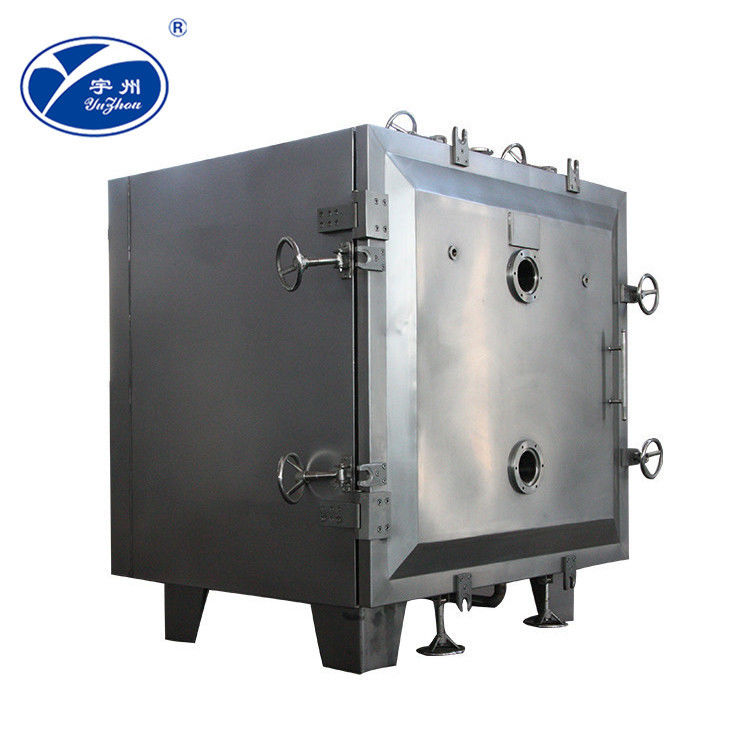

Herb Roots Powder Industrial Vacuum Dryer In Pharmaceutical Industry High Efficient
Application:
Industrial vacuum dryer is suitable for drying heat sensitive material, it’s widely used in pharmaceutical, chemical, food and electronic industries.
The so-called vacuum drying means that the dried material is subjected to heating and drying under vacuum conditions, and if the vacuum pump is used for dehumidification, the drying rate is accelerated.
Note: If a condenser is used, the solvent in the material can be recovered through the condenser; if SK series water ring vacuum pump or ZSWJ series hydraulic jet vacuum pump unit is used, the condenser can be used without saving the investment.
Industrial vacuum dryer Features:
1. Under the condition of vacuum,the boiling point of raw material will decrease and make the evaporation efficiency increase. Therefore for a certain amount of heat transfer, the conducting area of dryer can be saved.
2. The heat source for evaporation may be low pressure steam or surplus heat steam.
3. The heat loss is less.
4. Before drying,the treatment of disinfection may be carried out during the period of drying,there is no impurity material mixed. It is in conformity.
5. It belongs to static dryer. So the shape of raw material to be dried should not be destroyed.
Questions before quotation:
1. Material name
2. Material initial moisture and final moisture
3. How many kg per batch or per day
4. Heating source is steam or hot water?
1-- vacuum dryer for drying fruits
2- vacuum dryer for drying food powder
3- vacuum dryer for drying chemical and medicine powder and tablets/pills
Techinical specification:
| Model Name | YZG-600 | YZG-800 | YZG-1000 | YZG-1400A | FZG-10 | FZG-15 | FZG-20 | |
| Inter size of drying chamber(mm) | Φ600×976 | Φ800×1247 | Φ1000×1527 | Φ1400×2054 | 1500×1060 ×1220 | 1500×1400 ×1220 | 1500×1800 ×1220 | |
| Outer size of drying chamber(mm) | 1135×810 ×1024 | 1700×1045 ×1335 | 1693×1190 ×150 | 2386×1675 ×1920 | 1513×1924 ×1720 | 1513×1924 ×2060 | 1513×1924 ×2500 | |
| Layers of baking support | 4 | 4 | 6 | 8 | 5 | 8 | 12 | |
| Interval of baking(mm) | 82 | 82 | 102 | 102 | 122 | 122 | 122 | |
| Size of baking tray(mm) | 310×600 ×45 | 520×410 ×45 | 520×410 ×45 | 460×640 ×45 | 460×640 ×45 | 460×640 ×45 | 460×640 ×45 | |
| Quantity of baking tray | 4 | 8 | 12 | 32 | 20 | 32 | 48 | |
| working pressure inside the pipe of baking support(Mpa) | ≤0.784 | ≤0.784 | ≤0.784 | ≤0.784 | ≤0.784 | ≤0.784 | ≤0.784 | |
| Operation temperature of baking support, oC | 35-150 | 35-150 | 35-150 | 35-150 | 35-150 | 35-150 | 35-150 | |
| Degree of vacuum inside the chamber when operation (Mpa) | -0.09~0.096 | |||||||
| Under the condition of -0.1Mpa and 110oC,evaporation rate of water(kg/m2.hr ) | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 | |
| When condenser is used,Model,and power of vacuum pump(kw) | 2X-15A 2KW | 2X-30A 3KW | 2X-30A 3KW | 2X-70A 5.5KW | 2X-70A 5.5KW | 2X-70A 5.5KW | 2X-90A 2KW | |
| When condenser is not used,Model,and power of vacuum pump(kw) | SK-0.8 2.2KW | SK-2.7 4KW | SK-3 5.5KW | SK-6 11KW | SK-3 5.5KW | SK-6 11KW | SK-6 11KW | |
| Weight of drying chamber(kg ) | 250 | 600 | 800 | 1400 | 1400 | 2100 | 3200 | |
