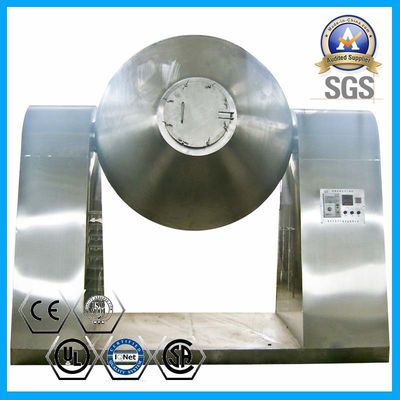

• Double Cone  Potato Slurry Vacuum Evaporation Dryer For Heat Sensitive Powder, Chemical
Double Cone  Potato Slurry Vacuum Evaporation Dryer For Heat Sensitive Powder, Chemical

Double Cone Potato Slurry Vacuum Evaporation Dryer For Heat Sensitive Powder, Chemical

Product Details:

Place of Origin: China
Brand Name: yuzhou
Certification: SGS, CE, ISO
Model Number: SZG

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Price: Negotiable
Packaging Details: shipping container
Delivery Time: 35 working days
Payment Terms: L/C, T/T,
Supply Ability: 1000unit per year
Get Best Price Contact Now

Detail Information

Name: Rotary Cone Vacuum Dryer Material: SUS 304, SUS316L
Type: Rotary Cone Rake: Rotary Cone
Heating Source: Electricity, Hot Water Or Steam Packing: 40HQ Container
High Light:

rotary cone vacuum dryer

,

double cone rotary vacuum dryer

Product Description

Description:Let heat source pass through the sealed Jacket The heat will be transmitted to raw material to be dried through inner shell,Under driving of power,the tank is rotated slowly and the raw material.
Double Cone  Potato Slurry Vacuum Evaporation Dryer For Heat Sensitive Powder, Chemical 0

Working Principle
◎Let heat source(for example,low pressure steam or thermal oil)pass through the sealed Jacket The heat will be transmitted to raw material to be dried through inner shell;
◎Under driving of power,the tank is rotated slowly and the raw material inside it is mixed continuously.The purpose of reinforced drying can be realized;
◎The raw mate rial is under vacuum The drop of steam pressure makes the moisture(solvent)at the sudace of raw material become saturation and will evaporate The solvent will be discharged th rough vacuum pump and recovered in time The inne r moistu re(solvent)of raw material will infiltrate,evaporate and discharge continuously The th ree processes are carried out unceasingly and the purpose of drying can be realized within a shon time.
Double Cone  Potato Slurry Vacuum Evaporation Dryer For Heat Sensitive Powder, Chemical 1
Material to dried
It is suitable for the raw materials that need to concentrate,mixed and dried at low temperature(for example,biochemistry)products in chemical,phamaceutical and foodstuff industries.Particularly it is suitable for the raw materials that are easy to be oxidized,volatilized and have night heat sensitivity and is toxic and not permitted to destroy its crystal in drying process.
Characteristics
◎When oil is used to heat,use automatic constant temperature control.It can be used for drying biology products and mine Its temperatu re of operation can be adjusted form 20—160oC.
◎Compared to ordinal d ryer,its heat efficiency will be 2 times higher.
◎The heat is indirect So the raw material can not be polluted.
◎It is in conformity with the requi rement of GMR It is easy in washing and maintenance.
Technical Parameter

model
name
100 350 500 750 1000 1500 2000 3500 4500 5000
volume inside
the tank(L)
100 350 500 750 1000 1500 2000 3500 4500 5000
Volume to fill
raw material(L)
≤50 ≤175 ≤250 ≤375 ≤500 ≤750 ≤1000 ≤1750 ≤2250 ≤2500
Heating area
(m2)
1.16 2 2.63 3.5 4.61 5.58 7.5 11.2 13.1 14.1
revolution
( rpm)
4 - 6
power of motor
(kw)
0.75 1.1 1.5 2 3 3 4 5.5 7.5 11
occupiedarea,
L×W(mm)
2160
×800
2260
×800
2350
×800
2560
×1000
2860
×1300
3060
×1300
3260
×1400
3760
×1800
3960
×2000
4400
×2500
rotating height
(mm)
1750 2100 2250 2490 2800 2940 2990 3490 4100 4200
design pressure
inside the tank
(MPa)
-0.1-0.15
design pressure
of jacket (MPa)
≤0.3
working temp-
erature(oC)
In the tank≤85 jacket≤140
When use con-
densator,
2X-15A 2X-15A 2X-30A 2X-30A 2X-70A JZJX300-8 JZJX300-4 JZJX600-8 JZJX600-4 JZJX300-4
model and power
of vacuum pump
2KW 2KW 3KW 3KW 505KW 7KW 9.5KW 11KW 20.5KW 22KW
When don,t use
condensator,
SK-0.4 SK-0.8 SK-0.8 SK-2.7B SK-2.7B SK-3 SK-6 SK-6 SK-9 SK-10
model and power
of vacuum pump
1.5KW 2.2KW 2.2KW 4KW 4KW 5.5KW 11KW 11KW 15KW 18.5KW
Weight(kg) 800 1100 1200 1500 2800 3300 3600 6400 7500 8600
