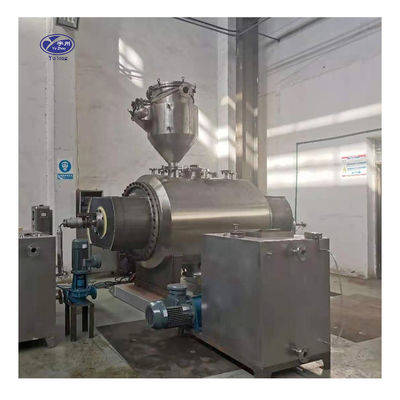

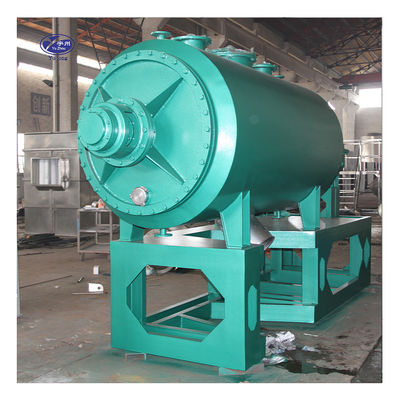

Horizontal Agitated 300L Industrial Vacuum Dryer Rotary drying
Product Details:
| Place of Origin: | China |
| Certification: | SGS, CE, ISO |
| Model Number: | PZG |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1unit |
|---|---|
| Price: | USD10990-59000/unit |
| Packaging Details: | shipping container |
| Delivery Time: | 35 working days |
| Payment Terms: | L/C, D/A, D/P, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000unit per year |
|
Detail Information |
|||
| Name: | Rotary Rake Vacuum Dryer | Material: | SUS 304, SUS316L |
|---|---|---|---|
| Type: | Rotary Drying | Rake: | Rotary Rake |
| Heating Source: | Electricity, Hot Water Or Steam | Packing: | 40HQ Container |
| Highlight: | Agitated Industrial Vacuum Dryer,300L Industrial Vacuum Dryer |
||
Product Description
Chemical Paste Industrial Vacuum Dryer Big Area Heating Way Big Capacity
Vacuum dryer Description: This is an innovative horizontal batch vacuum dryer. The moisture of the wet material evaporates by heat transfer. A stirrer with a scraper will remove material from the hot surface and move through the container to create a circulating flow. The evaporated water will be pumped through the vacuum pump.
Working principle
It is an innovative horizontal batch vacuum dryer. The moisture of the wet material evaporates by heat transfer. A stirrer with a scraper will remove material from the hot surface and move through the container to create a circulating flow. The evaporated water will be pumped through the vacuum pump.
Characteristics
◎ Being adapted the big area heating way , its heat conducting area is large and its heat ef ciency is high.
◎ Being installed stirring in the machine, it makes raw material in cylinder form the state of continuous circle inside the cylinder , so the uniformity to be heated of raw material is raised greatly .
◎ Being installed stirring in the machine, pulpinese, paste-like mixture or powder raw materials can be dried easy .
Material to be dried
◎ The following raw materials from pharmaceutical industry , foodstuf findustry, chemical industry and so on can be dried.
Suitable for pulpiness, paste-like mixture or powder raw material.
◎ Thermal sensitive raw material having the requirement to dry at lower temperature.
◎ Raw materials that are easy to oxidize or explode and have strong irritative or toxic.
◎ Raw materials that need to recover solvent.
Technical Parameter
| Item | Model | ||||||
| Name | unit | ZPG-500 | ZPG-750 | ZPG-1000 | ZPG-1500 | ZPG-2000 | ZPG-3000 |
| Working volume | L | 300 | 450 | 600 | 900 | 1200 | 1800 |
| Heating area | m2 | 6 | 7.6 | 9.3 | 12.3 | 14.6 | 19.3 |
| Srirring revolution | rpm | 6-30stepless variable | |||||
| Power | kw | 4 | 5.5 | 5.5 | 7.5 | 11 | 15 |
| Design pressure of Jacket(Hot water) | MPa | ≤0.3 | |||||
| Vacuum in the cylinder | MPa | -0.09～0.096 | |||||
Note:The evaporated amount of water its related te characteristics of raw materials and the temperature of air in and air out.When the temperature of air out is 90oC,the evaporated curve of moisture is listed in above Fig(for reference when choose the Model).With renew procucts unceasingly,the related parameters will be exchanged,it does not announce in advance,pardon!
