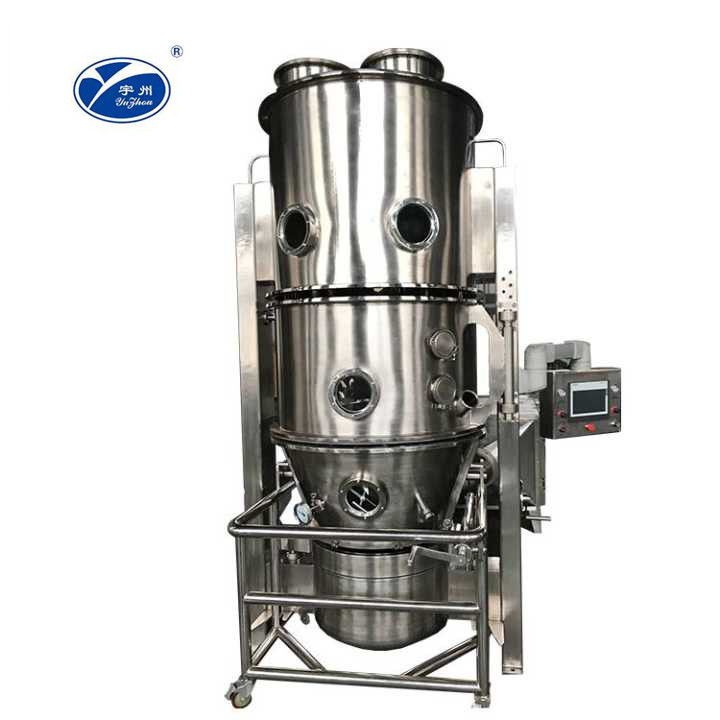

GMP 60-120kg/Batch Vertical Fluidized Bed Dryer Machine For Sugar Granule

GMP 60-120kg/Batch Vertical Fluidized Bed Dryer Machine For Sugar Granule

Product Details:

Place of Origin: China
Certification: SGS, CE, ISO
Model Number: GFG-120

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Price: USD10990-59000/unit
Packaging Details: shipping container
Delivery Time: 35 working days
Payment Terms: L/C, D/A, D/P, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000unit per year
Get Best Price Contact Now

Detail Information

Name: Sugar Fluid Bed Dryer Material: SUS 304, SUS316L
Standard: GMP Evaporation Capacity: 50-120KG/HOUR
Heating Source: Electricity Or Steam Packing: 40HQ Container
Sugar Drying Temperature: 60
High Light:

GMP Vertical Fluidized Bed Dryer

,

60kg/H Vertical Fluidized Bed Dryer

,

120kg/H fluid bed dryer machine

Product Description

sugar granule high efficient fluid bed dryer for food,chemical, medicine, drink powder or granule batch by batch drying



The basic concept of the high efficient fluidized bed dryer
1.1 The basic principle of boiling dryer
Definition of boiling dryer: Boiling dryer is also known as fluidized drying, which refers to the process of drying medium to dry solid particles in a fluidized state.
The principle of boiling dryer: refers to the drying medium to dry the solid particles in the fluidized state. The basis of the material drying process is the boiling of the powder. At the same time, under the action of exhausting, the fine powder in the container is captured by the bag. Filtered and discharged to the outside. During drying, due to gas-solid two-phase countercurrent contact, vigorous agitation. The solid particles are suspended in a drying medium and have a large contact surface area, which is excellent in heat transfer, mass transfer, volume dry strength, and thermal efficiency.
Because the boiling dryer has better adaptability to various materials, it has smaller floor space, larger production capacity, higher thermal efficiency, easier operation control and less particle damage than other dryers. It is widely used at present, especially in pharmaceuticals. In the industry.


1.2 Features of fluidized bed dryer
1.2.1 Because the contact area between the material and the drying medium is large, and the material is continuously stirred vigorously in the bed, the heat transfer effect is good and the heat capacity coefficient is large;
1.2.2 Due to the uniform temperature distribution in the fluidized bed, any local overheating of the product is avoided, so it is especially suitable for drying certain heat sensitive materials;
1.2.3 Continuous operation can be carried out in the same equipment, and intermittent operation can also be performed;
1.2.4 The residence time of the material in the dryer can be adjusted as needed, so the moisture content of the product is stable;
1.2.5 The drying device itself does not include mechanical moving parts, so the investment cost of the equipment is low and the maintenance workload is small.



Application

Fluid bed dryer can be used for drying powder sugar, granule sugar, sandy sugar, sand sugar, also for Food powder or granule drying, chemical powder drying, medicine powder drying.

Used for boiling drying of particle material with a size of 0. 1-6mm, and suitable for speedy drying of finished product, intermediate (semi finished product) in such trades as pharmaceutical, food, light industry and chemical etc.



Technical parameter

Item Model
GFG-60 GFG-100 GFG-120 GFG-150 GFG-200 GFG-250 GFG-300
Volume of hopper Liter 200 300 400 500 650 800 1000
Production capacity kg/batch 30-60 50-100 60-120 70-150 100-200 120-250 150-300
Air inlet temperature 0C       50-100
Fan Blast M3/h 2576 3488 3619 5114 5153 6032 7185 7766
Air pressure Pa 5639 5080 7109 5869 9055 7610 7400 7218
Motor power kw 7.5 11 11 15 18.5 22 22 30
Agitator Speed r/min 11 11 11 11 11 11 11
Motor power kw 0.55 1.1 1.1 1.5 1.5 2.2 2.2
Steam Pressure Mpa 0.4 0.4 0.4 0.4 0.6 0.6 0.6
Consumption kg/h 140 170 210 240 230 280 280
Compressed air Pressure Mpa 0.5 0.5 0.5 0.5 0.5 0.5 0.5
Consumption m3/h 0.6 0.6 0.6 0.9 0.9 0.9 0.9
Weight of main frame kg 1000 1200 1200 1500 1700 2000

2200
