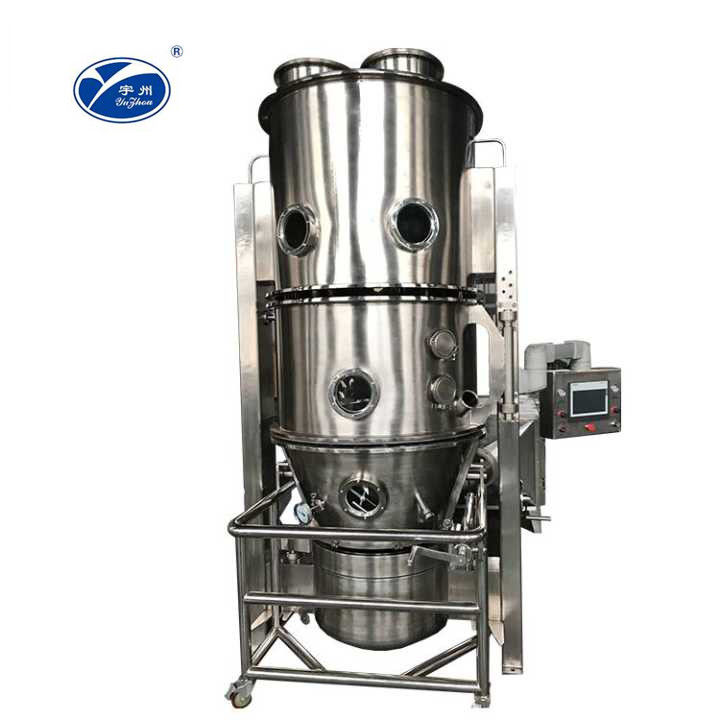

7.5-30kw Vertical Fluidized Bed Dryer Equipment GMP Standard

7.5-30kw Vertical Fluidized Bed Dryer Equipment GMP Standard

Product Details:

Place of Origin: China
Certification: SGS, CE, ISO
Model Number: GFG-120

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Price: USD10990-59000/unit
Packaging Details: shipping container
Delivery Time: 35 working days
Payment Terms: L/C, D/A, D/P, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000unit per year
Get Best Price Contact Now

Detail Information

Name: Fluid Bed Dryer Material: SUS 304, SUS316L
Structure: Vertical Fluid Bed Evaporation Capacity: 60-120KG/HOUR
Heating Source: Electricity Or Steam Packing: 40HQ Container
Temperature: 30-200 Standard: GMP
High Light:

30kw Vertical Fluidized Bed Dryer

,

7.5kw Vertical Fluidized Bed Dryer

,

GMP fluid bed drying equipment

Product Description

High Performance Vertical Fluidized Bed Dryer Heating Temperature 30 - 200 ℃ Easy To Clean



Overview
The utility model relates to a vibrating fluidized bed dryer for seasoning, which comprises: an upper and a lower tank connected up and down, a channel steel arranged between the upper and lower tanks, and is arranged at the inlet end of the upper tank body. The feeding hopper, the vibration motor disposed at the central portion of the channel steel, and the plurality of air inlets distributed at the bottom of the lower box body are distributed at a plurality of air outlets at the top of the upper box body, and are connected to the slots through a plurality of legs with shock absorbers The base channel below the steel is located at the discharge port at the front end of the upper case. The vibration source of the dryer of the utility model is driven by a vibration motor, has stable operation and convenient maintenance, and is used for supporting the legs with suspension, so the noise is low and the service life is long. The fluidized shape is uniform, and there is no dead space and blow-through phenomenon, and a uniform dry and cooled product can be obtained. Good adjustability and wide adaptability. Stepless adjustment is achieved by layer thickness and movement speed in the machine as well as full amplitude changes. The dryer is suitable for ensuring that the material is first in and out, and the damage to the surface of the material is small.



Application

For food additve, seasoning, flavor powder and granules drying, chemical powder drying, medicine powder drying.

Used for boiling drying of particle material with a size of 0. 1-6mm, and suitable for speedy drying of finished product, intermediate (semi finished product) in such trades aspharmaceutical, food, light industry and chemical etc.





Main feature
Hopper is sealed with frame by way of O type air cell, featuring convenient handling. Hopper is equipped with agitator inside, materail is dried uniformly and speedily without boiling dead angle.
Filter bag and cylinder automatic bag shake unit are supplied on the top to avoid materialloss.
With air purifying cabinet, it usesoutdoor air has no influence on air purifying load of purified workshop.
High drying speed, drying time can be freely set up according to features of materials, normally at 10-30min.



Item Model
GFG-60 GFG-100 GFG-120 GFG-150 GFG-200 GFG-250 GFG-300
Volume of hopper Liter 200 300 400 500 650 800 1000
Production capacity kg/batch 30-60 50-100 60-120 70-150 100-200 120-250 150-300
Air inlet temperature 0C       50-100
Fan Blast M3/h 2576 3488 3619 5114 5153 6032 7185 7766
Air pressure Pa 5639 5080 7109 5869 9055 7610 7400 7218
Motor power kw 7.5 11 11 15 18.5 22 22 30
Agitator Speed r/min 11 11 11 11 11 11 11
Motor power kw 0.55 1.1 1.1 1.5 1.5 2.2 2.2
Steam Pressure Mpa 0.4 0.4 0.4 0.4 0.6 0.6 0.6
Consumption kg/h 140 170 210 240 230 280 280
Compressed air Pressure Mpa 0.5 0.5 0.5 0.5 0.5 0.5 0.5
Consumption m3/h 0.6 0.6 0.6 0.9 0.9 0.9 0.9
Weight of main frame kg 1000 1200 1200 1500 1700 2000

2200
