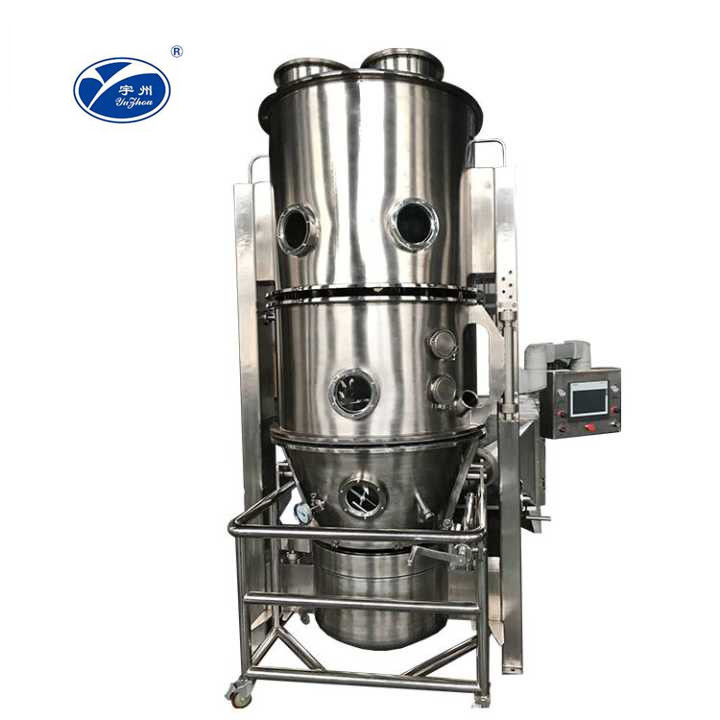

Industrial 50-120KG/Batch Vertical Fluidized Bed Dryer Electricity Or Steam Heating
Product Details:
| Place of Origin: | China |
| Certification: | SGS, CE, ISO |
| Model Number: | GFG-120 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1unit |
|---|---|
| Price: | USD10990-59000/unit |
| Packaging Details: | shipping container |
| Delivery Time: | 35 working days |
| Payment Terms: | L/C, D/A, D/P, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000unit per year |
|
Detail Information |
|||
| Name: | Fluid Bed Dryer | Material: | SUS 304, SUS316L |
|---|---|---|---|
| GMP: | Yes | Evaporation Capacity: | 50-120KG/Batch |
| Heating Source: | Electricity Or Steam | Packing: | 40HQ Container |
| Temperature: | 30-200 | ||
| High Light: | 120KG/H Vertical Fluidized Bed Dryer,Steam Vertical Fluidized Bed Dryer,50KG/H industrial fluid bed dryers |
||
Product Description
high efficient fluidized bed dryer for food,chemical, medicine, drink powder or granule batch by batch drying
High Efficient Vertical Fluidized Bed Dryer Fast Drying Speed Temperature Uniformity
GFG series high-efficiency vertical fluidized bed dryer is suitable for drying mechanism screw extrusion granules,
Rocking granules, wet high-speed mixed granules; wet in the fields of medicine, food, feed, chemical, etc.
Dry granules and powdery materials; large granules, small pieces, viscous granules; konjac, poly propylene
A material that changes in volume when dried, such as an enamide.
The process is shown in the figure.
After the air is purified by heating, it is introduced from the lower part by the induced draft fan, and is worn.
Through the stencil of the hopper. In the working chamber, fluidization is formed by stirring and negative pressure, and the water is fast.
After the evaporation, the material is quickly dried as the exhaust gas is taken away.
GFG series high efficiency fluid bed dryer features:
1 The fluidized bed is a circular structure to avoid dead ends;
2The hopper is set to stir to avoid the agglomeration of wet materials.
And forming a channel when drying;
3 Use the tumbling and unloading, which is convenient and quick and thorough.
Automatic feeding and discharging system can be designed as required;
4 sealed negative pressure operation, the air flow is filtered;
5 easy to operate, easy to clean, is in line with
Ideal equipment required by “GMP”;
6 drying speed, temperature uniformity, drying each batch
The time is usually 20-30 minutes.
The GFG high efficiency boiling dryer is suitable for use in Vietnam, Thailand, Kazakhstan, Sri Lanka, Indonesia, the Philippines and other countries and countries.
| Item | Model | |||||||||
| GFG-60 | GFG-100 | GFG-120 | GFG-150 | GFG-200 | GFG-250 | GFG-300 | ||||
| Volume of hopper | Liter | 200 | 300 | 400 | 500 | 650 | 800 | 1000 | ||
| Production capacity | kg/batch | 30-60 | 50-100 | 60-120 | 70-150 | 100-200 | 120-250 | 150-300 | ||
| Air inlet temperature | 0C | 50-100 | ||||||||
| Fan | Blast | M3/h | 2576 | 3488 | 3619 | 5114 | 5153 | 6032 | 7185 | 7766 |
| Air pressure | Pa | 5639 | 5080 | 7109 | 5869 | 9055 | 7610 | 7400 | 7218 | |
| Motor power | kw | 7.5 | 11 | 11 | 15 | 18.5 | 22 | 22 | 30 | |
| Agitator | Speed | r/min | 11 | 11 | 11 | 11 | 11 | 11 | 11 | |
| Motor power | kw | 0.55 | 1.1 | 1.1 | 1.5 | 1.5 | 2.2 | 2.2 | ||
| Steam | Pressure | Mpa | 0.4 | 0.4 | 0.4 | 0.4 | 0.6 | 0.6 | 0.6 | |
| Consumption | kg/h | 140 | 170 | 210 | 240 | 230 | 280 | 280 | ||
| Compressed air | Pressure | Mpa | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | |
| Consumption | m3/h | 0.6 | 0.6 | 0.6 | 0.9 | 0.9 | 0.9 | 0.9 | ||
| Weight of main frame | kg | 1000 | 1200 | 1200 | 1500 | 1700 | 2000 |
2200
|
||
