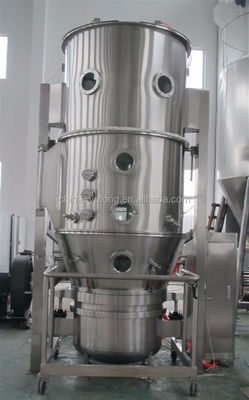

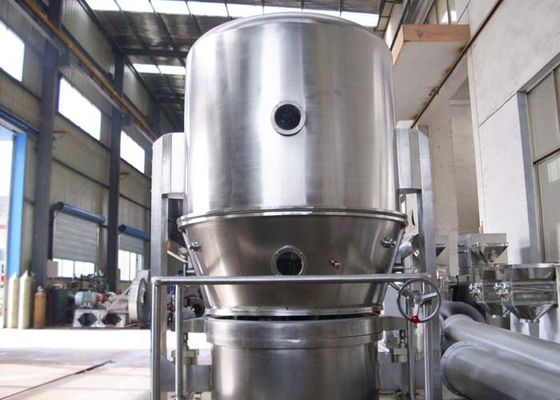

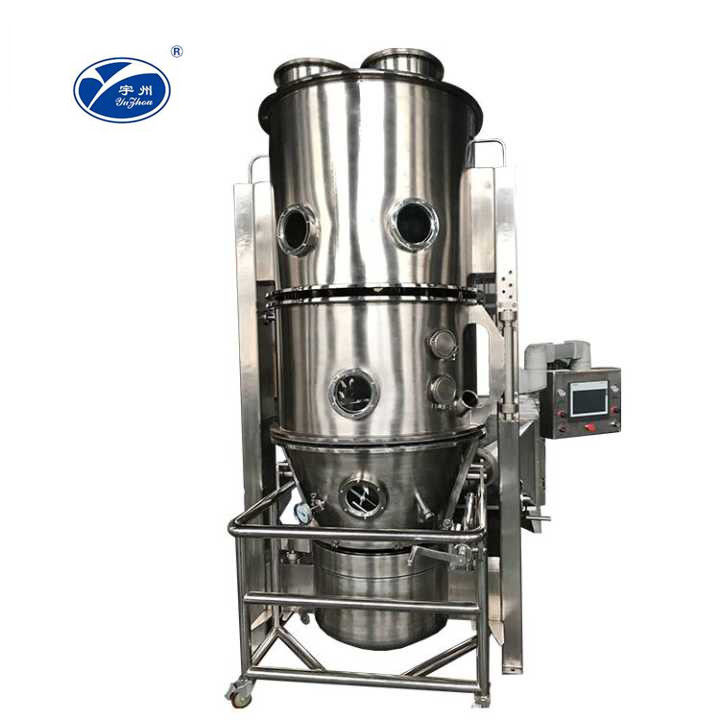

380V 11kw Aeromatic Industrial Fluid Bed Dryers For Pharmaceutical Granule
Product Details:
| Place of Origin: | China |
| Certification: | SGS, CE, ISO |
| Model Number: | GFG |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1unit |
|---|---|
| Price: | USD10990-59000/unit |
| Packaging Details: | shipping container |
| Delivery Time: | 35 working days |
| Payment Terms: | L/C, D/A, D/P, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000unit per year |
|
Detail Information |
|||
| Name: | Industrial Fluid Bed Dryer | Material: | SUS 304, SUS316L |
|---|---|---|---|
| Power: | 380V Or Other | Evaporation Capacity: | 50-120KG/HOUR |
| Heating Source: | Electricity Or Steam | Packing: | 40HQ Container |
| Drying Temperature: | 20-300 | ||
| High Light: | 11kw Industrial Fluid Bed Dryers,aeromatic Industrial Fluid Bed Dryers,380V aeromatic fluid bed dryer |
||
Product Description
Pharmaceutical powder and granule industrial fluid dryer for drying wet powder, food flavor, additive, seasoning, spice
Application
Industrial fluid bed dryer is used for drying food powder or granules, chemical powder drying, powder drying. For the boiling drying of granular materials, the size is 0.
1-6mm, suitable for fast drying of finished products, intermediate (semi-finished) in such industries as aspharmaceutical, food, light industry and chemicals etc.
Working principle
Fan ventilation, through the purification cabinets, heaters and natural high-speed airflow in the material bed hole flow, so that the material into the boiling (fluidization) state, in a large area of contact between the gas phase and solid phase, the discussion material veaporated quickly, so as to achieve the purpose of drying.
Key Features
The hopper is sealed with O-type air battery, which adopts convenient treatment.
Hopper is equipped with a stirrer, week and month dry evenly, fast, no boiling corner.
On the top of the filter bag and cylinder automatic swing device to avoid materialloss.
Air purification Cabinet Usesoutdoor Air to the purification Workshop air purification load no impact. Drying speed is fast, drying time can be set according to the characteristics of the material freely, usually in 10-30min.
| Item | Model | |||||||||
| GFG-60 | GFG-100 | GFG-120 | GFG-150 | GFG-200 | GFG-250 | GFG-300 | ||||
| Volume of hopper | Liter | 200 | 300 | 400 | 500 | 650 | 800 | 1000 | ||
| Production capacity | kg/batch | 30-60 | 50-100 | 60-120 | 70-150 | 100-200 | 120-250 | 150-300 | ||
| Air inlet temperature | 0C | 50-100 | ||||||||
| Fan | Blast | M3/h | 2576 | 3488 | 3619 | 5114 | 5153 | 6032 | 7185 | 7766 |
| Air pressure | Pa | 5639 | 5080 | 7109 | 5869 | 9055 | 7610 | 7400 | 7218 | |
| Motor power | kw | 7.5 | 11 | 11 | 15 | 18.5 | 22 | 22 | 30 | |
| Agitator | Speed | r/min | 11 | 11 | 11 | 11 | 11 | 11 | 11 | |
| Motor power | kw | 0.55 | 1.1 | 1.1 | 1.5 | 1.5 | 2.2 | 2.2 | ||
| Steam | Pressure | Mpa | 0.4 | 0.4 | 0.4 | 0.4 | 0.6 | 0.6 | 0.6 | |
| Consumption | kg/h | 140 | 170 | 210 | 240 | 230 | 280 | 280 | ||
| Compressed air | Pressure | Mpa | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | |
| Consumption | m3/h | 0.6 | 0.6 | 0.6 | 0.9 | 0.9 | 0.9 | 0.9 | ||
| Weight of main frame | kg | 1000 | 1200 | 1200 | 1500 | 1700 | 2000 |
2200
|
||
1, need to strengthen the sealing effect of the boiling dryer, such as the current more than most of the boiling dryer plane flange to connect the dryer hopper and equipment body, the sealing effect is poor, can be replaced with concave and convex surface flange connection.
2, Dryer heat exchanger Most of the use of steel tube winding fin, although the cost of material savings, but poor heat exchange effect, the proposed use of copper tube for heat exchange, although the cost is higher, but in the long run, can save a lot of energy consumption. 3, increase the insulation measures can effectively prevent the loss of heat, most of the oven drying box is used to conserve heat, such as vacuum drying box, electric blast drying oven, hot air circulation ovens and other drying equipment.
