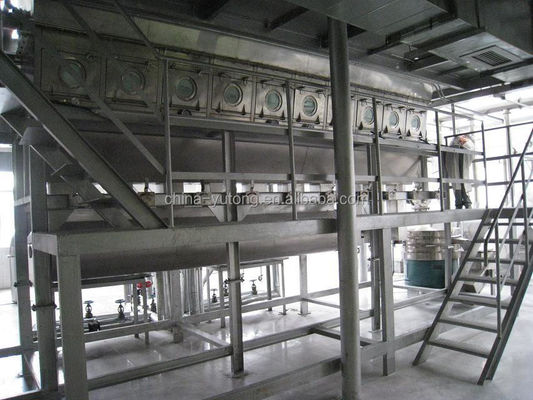

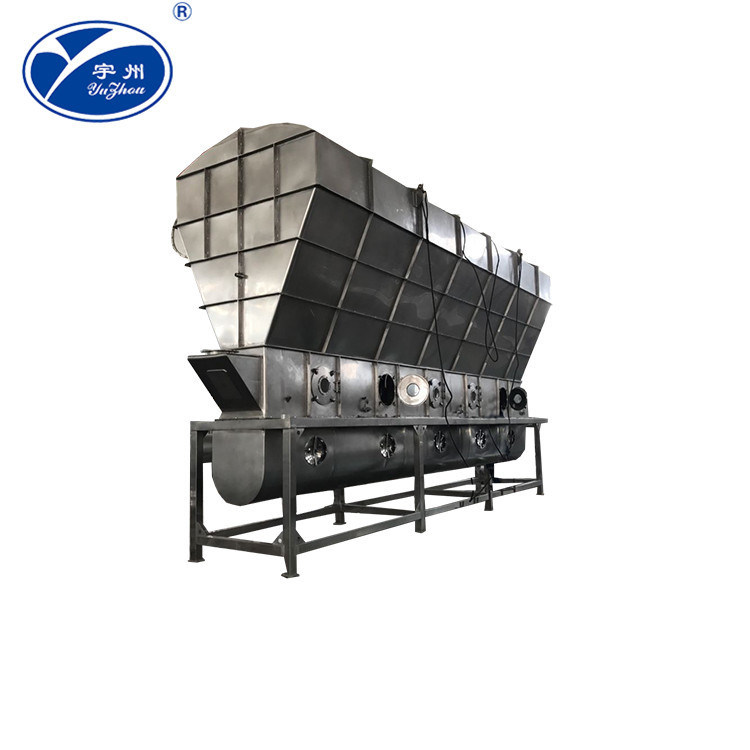

0.9m2 SUS304 Horizontal fluidized bed dryer for pharmaceutical
Product Details:
Place of Origin: | China |
Certification: | SGS, CE, ISO |
Model Number: | ZLG |
Payment & Shipping Terms:
Minimum Order Quantity: | 1unit |
---|---|
Price: | USD10990-59000/unit |
Packaging Details: | shipping container |
Delivery Time: | 30-45 working days |
Payment Terms: | L/C, D/A, D/P, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 1000unit per year |
Detail Information |
|||
Name: | Vibration Industrial Fluid Bed Dryer | Material: | SUS 304, SUS316L |
---|---|---|---|
Type: | Fluid Bed Dryer | Fluid: | Horizontal Fluid Bed |
Heating Source: | Electricity,steam Or Natural Gas | Packing: | 40HQ Container |
Appllication Industries: | Food, Chemical, Pharmaceutical | Production Period: | 30-45 Working Days |
Highlight: | vibrating Industrial Fluid Bed Dryers,0.9m2 Industrial Fluid Bed Dryers,SUS304 vibrating fluid bed dryer |
Product Description
Big Capacity Vibrating Flavor granule industrial fluid bed dryers from China
Horizontal vibration industrial fluid bed dryers are widely used in food flavor production for drying food flavor/seasoning granules
FAQ before inquiry : we should consider the following things of the raw material that you are going to dry:
1- material name
2. material shape and size
3. initial moisture
4. final required moisture
5. drying temperature and heating source
6. site space and conditions
Fluidized bed dryer
I. Overview
The material enters the machine at the feeding port. Under the action of the vibration force, the material is thrown forward in the direction of the fluidized bed, and the hot air passes through the fluidized bed and the wet material to exchange heat. After cooling by the cold air, the humid air passes through. After the cyclone separator is dusted, it is discharged by the air outlet, and the dry material is discharged from the discharge port.
Second, the characteristics
1. The material is evenly received, the heat exchange is sufficient, the drying strength is high, and the energy saving is about 30% than that of the ordinary dryer.
2. The vibration source is driven by vibration motor, which is stable in operation, convenient in maintenance, low in noise and long in life.
3, fluidization is stable, no dead angle and blow through phenomenon.
4, good adjustability, adapt to the width of the surface, the thickness of the material layer and the movement speed inside the machine and the amplitude change evenly can achieve stepless speed regulation
5, the surface damage to the material is small, can be used for the drying of fragile materials, the material particles are irregular, it does not affect the working effect.
6, the use of a fully enclosed structure, effectively prevent cross-contamination of materials and air, the working environment is clean.
Industrial fluid bed dryers Characteristics:
Vibration source is the use of vibration motor drive, smooth operation, easy maintenance, low noise, long life, easy maintenance. High thermal efficiency, than the general drying device can save more than 30%.
Bed temperature distribution uniformity, no local overheating phenomenon, fluidization symmetry, no dead angle phenomenon.
Good adjustability, adaptable to wide. The thickness of the material layer and the moving speed in the machine and the full amplitude change evenly can achieve stepless adjustment.
The material surface damage is small, can be used for the drying of fragile materials, and the irregular material particles do not affect the work effect.
The fully enclosed structure is used to effectively prevent the cleaning of the air-fork infection between the material and atmosphere. When used for high-moisture material mass production, multi-series can be used to meet user requirements (typical materials: such as polyacrylamide, etc.)
Technical Parameter
Size Model |
A | B | C | D | E | F | Weight(kg) |
ZLG3×0.30 | 3000 | 300 | 1350 | 900 | 430 | 1650 | 1250 |
ZLG4.5×0.30 | 4500 | 300 | 1350 | 900 | 430 | 1650 | 1250 |
ZLG4.5×0.45 | 4500 | 450 | 1550 | 950 | 430 | 1700 | 1670 |
ZLG4.5×0.60 | 4500 | 600 | 1650 | 950 | 430 | 1700 | 1670 |
ZLG6×0.45 | 6000 | 450 | 1650 | 950 | 430 | 1700 | 2100 |
ZLG6×0.60 | 6000 | 600 | 1700 | 1000 | 500 | 1700 | 2410 |
ZLG6×0.75 | 6000 | 750 | 1850 | 1000 | 600 | 1850 | 2840 |
ZLG6×0.9 | 6000 | 900 | 2000 | 1000 | 600 | 1850 | 3160 |
ZLG7.5×0.60 | 7500 | 600 | 1850 | 1000 | 600 | 1850 | 3200 |
ZLG7.5×0.75 | 7500 | 750 | 2000 | 1000 | 600 | 1850 | 3600 |
ZLG7.5×0.9 | 7500 | 900 | 2100 | 1000 | 600 | 1850 | 4140 |
ZLG7.5×1.2 | 7500 | 1200 | 2500 | 1150 | 800 | 2050 | 5190 |
Model | Area of fluidized-bed (M2) |
Temperature of inlet air (oC) |
Temperature of outlet (oC) |
Capacity to vapor moisture (kg) |
Vibration motor | |
Model | Power Kw | |||||
ZLG3×0.30 | 0.9 | 70-140 | 40-70 | 20-35 | ZDS31-6 | 0.8×2 |
ZLG4.5×0.30 | 1.35 | 70-140 | 40-70 | 35-50 | ZDS31-6 | 0.8×2 |
ZLG4.5×0.45 | 2.025 | 70-140 | 40-70 | 50-70 | ZDS32-6 | 1.1×2 |
ZLG4.5×0.60 | 2.7 | 70-140 | 40-70 | 70-90 | ZDS32-6 | 1.1×2 |
ZLG6×0.45 | 2.7 | 70-140 | 40-70 | 80-100 | ZDS41-6 | 1.5×2 |
ZLG6×0.60 | 3.6 | 70-140 | 40-70 | 100-130 | ZDS41-6 | 1.5×2 |
ZLG6×0.75 | 4.5 | 70-140 | 40-70 | 120-140 | ZDS42-6 | 2.2×2 |
ZLG6×0.9 | 5.4 | 70-140 | 40-70 | 140-170 | ZDS42-6 | 2.2×2ZLG |
ZLG7.5×0.60 | 4.5 | 70-140 | 40-70 | 130-150 | ZDS42-6 | 2.2×2 |
ZLG7.5×0.75 | 5.625 | 70-140 | 40-70 | 150-180 | ZDS51-6 | 3.0×2 |
ZLG7.5×0.9 | 6.75 | 70-140 | 40-70 | 160-210 | ZDS51-6 | 3.0×2 |
ZLG7.5×1.2 | 9 | 70-140 | 40-70 | 200-260 | ZDS51-6 | 3.0×2 |
* The above is the largest evaporation.
