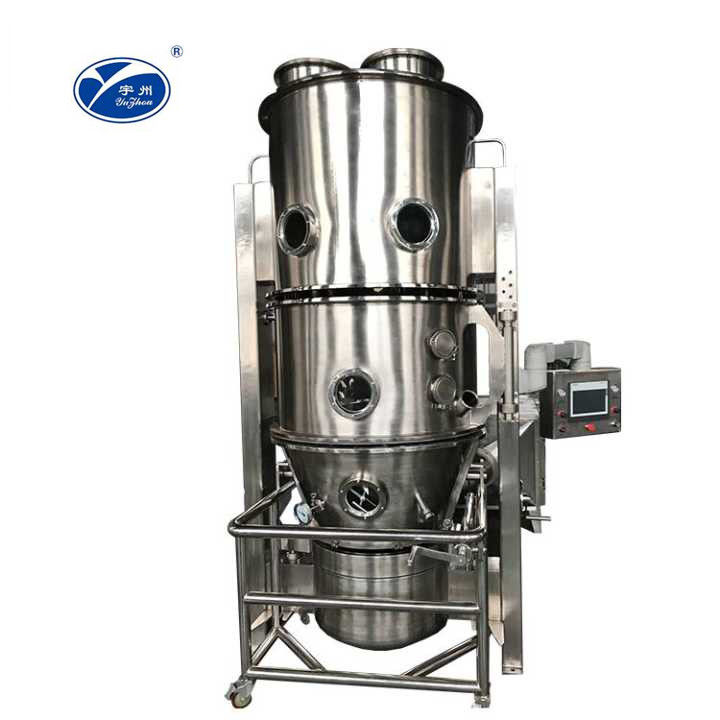

SUS316L Industrial Fluid Bed Dryers chemical Electric / Steam Heating

SUS316L Industrial Fluid Bed Dryers chemical Electric / Steam Heating

Product Details:

Place of Origin: China
Brand Name: YUTONG
Certification: ISO GSG CE
Model Number: GFG

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Price: USD 9000-87900 per unit
Packaging Details: plywood or shipping container, it's depends on the fluid bed dryer model and size
Delivery Time: 25 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100units per month
Get Best Price Contact Now

Detail Information

Name: Fluid Bed Dryer Scale: Industrial Purpose
Construction Material: Stainless Steel 304 Or SUS316L Heating Source: Electricity Or Steam
Making Standard: GMP Application: Food, Chemical, Medicine Powder Or Granules Drying
Drying Temperature: 30-200℃ Drying Circle: 15-60 Minutes Per Batch
H.S. Code: 84193990.90 Production Period: 25 Working Days
High Light:

SUS316L continuous fluidized bed dryer


fbd continuous fluidized bed dryer


fbd dryer

Product Description

High efficient electric or steam heating industrial fluid bed dryer for drying wet powder and granules


The high-efficiency industrial fluid bed dryer is used for boiling and drying of granular materials with particle size of 0.1-6mm. It is suitable for drying of finished products and intermediates in pharmaceutical, food, light industry and chemical industries. Working principle Natural air is drawn under the fan and passed through the purification cabinet. The heater forms a high-speed airflow in the small hole of the material bed plate, and the material is in a boiling state, and the moisture in the material rapidly evaporates during the gas-solid two-phase large-area contact process, thereby achieving drying.



Working principle
After the air is purified by heating, it is introduced from the lower part by the induced draft fan and passes through the hole mesh plate of the hopper. In the working chamber, fluidization is formed by stirring and negative pressure, and the water is quickly evaporated and then taken away with the exhaust gas, and the material is quickly dried.


Machine Features
1. Closed negative pressure operation, air flow through filtration. Easy to operate, easy to clean, is the ideal equipment to meet the requirements of "GMP".

2. The drying speed is fast and the temperature is uniform. The drying time of each batch is 20-30 minutes.

3. The hopper is set to stir to avoid the formation of channeling when the wet materials are agglomerated and dried.

4. It adopts tipping and unloading, which is convenient and rapid, and can also design automatic feeding and discharging system according to requirements.

5. The fluidized bed is a circular structure to avoid dead ends.

6. This machine can also be designed and manufactured automatically according to requirements.



Scope of application
1. Wet granules and powdery materials in the fields of medicine, food, condiment, feed, chemical, etc. are dry.

2. Screw extrusion particles, rocking particles, high-speed mixed granulation particles.

3, large particles, small pieces, sticky block granular materials.

4. Grinding, acrylamide, etc.



Technical specification


GFG-60 GFG-100 GFG-120 GFG-150 GFG-200 GFG-250 GFG-300
Volume of hopper L 200 300 400 500 650 800 1000
Production capacity kg/ 30-60 50-100 60-120 70-150 100-200 120-250 150-300
Air inlet temperature 0C       50-100
Fan Blast M3/h 2576 3488 3619 5114 5153 6032 7185 7766
Air pressure Pa 5639 5080 7109 5869 9055 7610 7400 7218
Motor power kw 7.5 11 11 15 18.5 22 22 30
Agitator Speed r/min 11 11 11 11 11 11 11
Motor power kw 0.55 1.1 1.1 1.5 1.5 2.2 2.2
Steam Pressure Mpa 0.4 0.4 0.4 0.4 0.6 0.6 0.6
Consumption kg/h 140 170 210 240 230 280 280
Compressed air Pressure Mpa 0.5 0.5 0.5 0.5 0.5 0.5 0.5
Consumption m3/h 0.6 0.6 0.6 0.9 0.9 0.9 0.9
Weight of main frame kg 1000 1200 1200 1500 1700 2000 2200
