WDG Water Dispersant Granule Revolving Granulator SGS Approval

WDG Water Dispersant Granule Revolving Granulator SGS Approval

  • High Light

    WDG Revolving Granulator


    SGS Revolving Granulator

  • Material
    SUS304 SUS316L Food Grade GMP
  • Standard
  • Product
    Cylinder Granules
  • Cutter
    Speed Viable
  • Color
    Stainless Steel
  • Voltage
    380V 220V
  • Granule/pellet Size
    1-3mm Cylinder Granules
  • Place of Origin
  • Certification
  • Model Number
  • Minimum Order Quantity
  • Price
    USD2900-3890 per unit
  • Packaging Details
    plywood or shipping container
  • Delivery Time
    25 working days
  • Payment Terms
    Western Union, MoneyGram, D/A, L/C, D/P, T/T
  • Supply Ability
    1000units per year

WDG Water Dispersant Granule Revolving Granulator SGS Approval

WDG Revolving Granulator For Water Dispersant Granule Production Big Capacity


ZL series revolving granulator
Pesticide water dispersible granule (WDG) production equipment

Pesticide water dispersible granules were developed in the 1980s as a new dosage form. Because of its good safety, no pollution to the environment, and the advantages of traditional pesticide formulations, it is considered to be an important direction for the development of pesticide formulations. WDG has become one of the most promising products in a new generation of pesticide formulations. Water-dispersible granules are a new pesticide formulation developed in Europe and the United States in the early 1980s. Also known as dry suspension, the International Federation of Pesticide Industry Associations (GIFAR) defines it as: particles used after disintegration and dispersion in water. Agent. The water-dispersible granule is mainly composed of an active ingredient of a pesticide, a dispersing agent, a wetting agent, a binder, a disintegrating agent and a filler, and has a particle diameter of 200 μm to 5 mm, and can rapidly disintegrate and disperse after entering water to form a high suspension dispersion system.

1. Compared to EC, WDG can produce a highly concentrated pesticide formulation that does not require dissolution.
2. Compared with WP, WDG produces little or no dust (in use), which reduces the toxicity during operation. The product does not flow, making metering more convenient.
3. Compared to SC, WDG is easy to package, which makes handling easier. Moreover, the product does not precipitate.

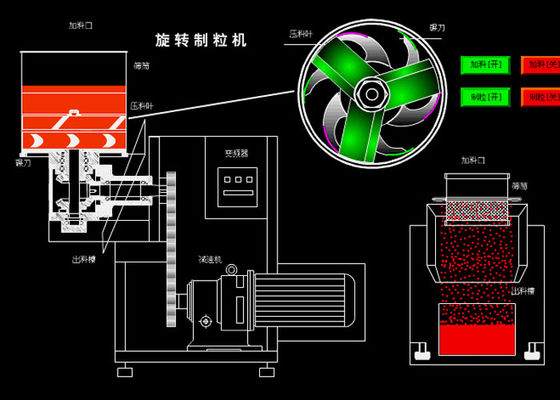

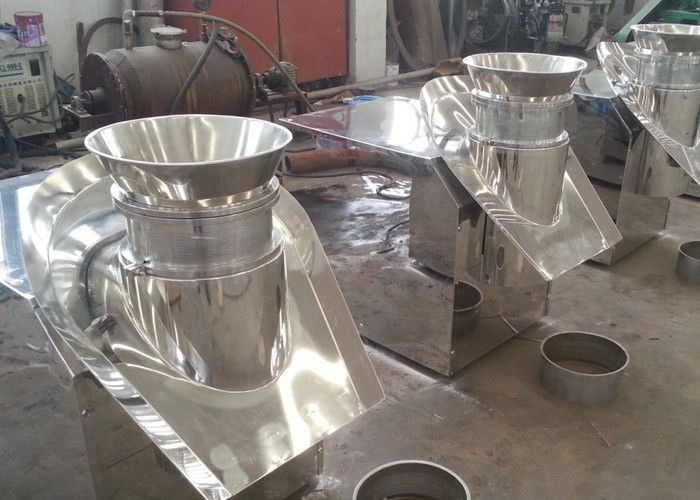

Revolving granulator Characteristics
All parts contacted with raw material in this machine are made of stainless steel.Its apperance is beauty and taste and its structure is reasonable.Its efficiency is high and the granule is beauty.Its discharge is automatic.Therefore it can avoid damaged conditions caused manual.It is suitable for in line production too

Technical Parameter

Size of milling knife(mm)
JLZ-80 JLZ-300 JZL-350
Diameter of granule(mm) Φ0.8-3.0
(it may be in accordance with the requirements of costomers)
(it may be in accordance with the requirements of costomers)
(it may be in accordance with the requirements of costomers)
Overall dimesions(mm) 450×300×450 880×640×1200 1300×800×1400
Power of motor
0.18 5.5 11
Weight(kg) 25 400 780

Production capcity(kg/h)

100-300 250-600

Note:Becaise the rae materials exist in difference,the output in the table is for reference only.]
