GMP 1-10kg/H Rotary Granulator ,Cylinder Pellets Rapid Mixer Granulator Equipment

GMP 1-10kg/H Rotary Granulator ,Cylinder Pellets Rapid Mixer Granulator Equipment

Product Details:

Place of Origin: China
Certification: SGS CE ISO
Model Number: ZL

Payment & Shipping Terms:

Minimum Order Quantity: 1units
Price: USD2900-3890 per unit
Packaging Details: plywood or shipping container
Delivery Time: 25 working days
Payment Terms: Western Union, MoneyGram, D/A, L/C, D/P, T/T
Supply Ability: 1000units per year
Get Best Price Contact Now

Detail Information

Material: SUS304 SUS316L Food Grade GMP Standard: GMP
Product: Cylinder Granules Cutter: Speed Viable
Color: Stainless Steel Voltage: 380V 220V

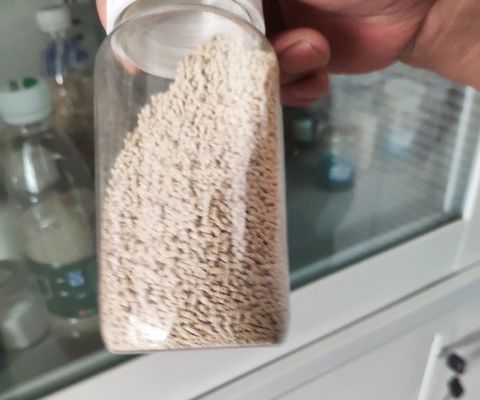

Granule/pellet Size: 1-3mm Cylinder Granules
High Light:

GMP rotary granulator


10kg/h rapid mixer granulator

Product Description

High Efficient Rotary Granulator , Noodle Cylinder Pellets Granulator Equipment


Working principle of revolving granulator


The two ends are aligned with the line speed of the inner and outer rings of the template, no misalignment between the wheel and the mold occurs, the resistance is reduced, the kinetic energy loss is reduced, and the service life is extended to extend the length of the mold, which is similar to the compression molding equipment. The main difference. . The utility model adopts a screw center pressure adjusting mechanism, and the mold gap is large and small, and different materials are used to ensure the pressing effect. The pressure roller adopts a large groove width, and is resistant to pressure and wear. The pressure roller adopts a plurality of uniform distributions, the operation is stable, the pressing area is increased, and the production efficiency is improved. Sawdust and straw compression molding require a lot of pressure. In the same granulation, briquetting and rod making equipment, the press roll assembly is the core component of the entire plant. Any other device can add the advantages of a "conical flat die". For example, due to the diameter of the ring die, the ring model granulator cannot be enlarged, which causes the bearing of the pressure wheel to change. Small, assembled bearings do not have the ability to withstand pressure, and the bearings are damaged by three stops of the equipment. This type of machine has a variety of compression moldings. Round bars, squares and granules can be made by changing the mold. It can adapt to different materials for compression molding and get the best results. The granulation room is equipped with an observation door for easy inspection and maintenance.



​​Scope of Application

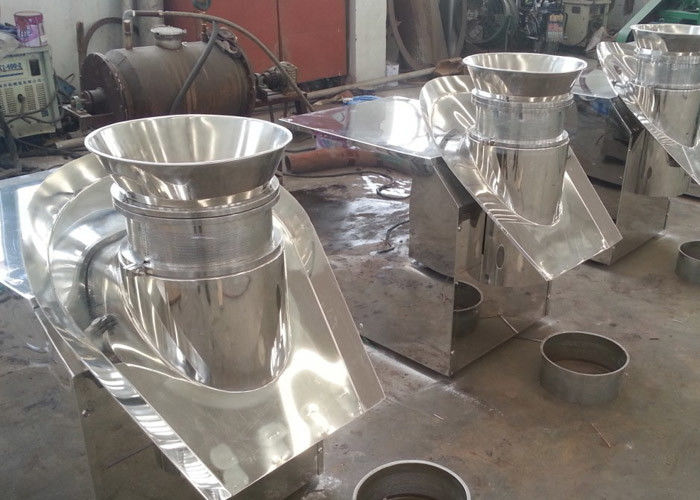

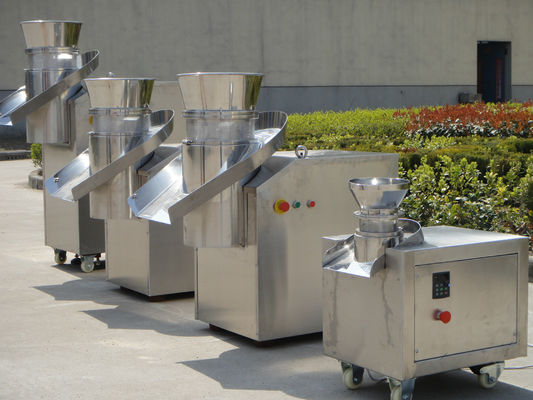

ZL series reloving rotary granulator
This machine is used in the pharmaceutical, food, granule, chemical, solid beverage and other industries. The agitated material is made into the required granules, especially suitable for materials with high viscosity.

The contact part of the machine is made of stainless steel, the appearance is beautiful, the structure is reasonable, the granulation forming rate is high, the granules are beautiful, the material is automatically discharged, the granule damage caused by manual discharging is avoided, and it is suitable for running water.
1. The granulator is a rocking action of a rotating drum. The wet powder material can be ground into particles by a wire sieve, and can also be widely used for pulverizing and becoming a ready-made granule. 2. In the case of chemicals, the powder is used as a wet-laid powder, and after drying, it is used to compress the tablet, and it is also possible to pulverize the block which is agglomerated during storage or agglomerated during chemical processing. It is used industrially to treat confectionery and sugar blends and malt milk, and other industries such as ceramics, plastics and the like into shaped pellets. 3. It is not suitable for semi-solid, fluid, slurry or wear.

Revolving granulator Characteristics
All parts contacted with raw material in this machine are made of stainless steel.Its apperance is beauty and taste and its structure is reasonable.Its efficiency is high and the granule is beauty.Its discharge is automatic.Therefore it can avoid damaged conditions caused manual.It is suitable for in line production too

Technical Parameter

Size of milling knife(mm)
JLZ-80 JLZ-300 JZL-350
Diameter of granule(mm) Φ0.8-3.0
(it may be in accordance with the requirements of costomers)
(it may be in accordance with the requirements of costomers)
(it may be in accordance with the requirements of costomers)
Overall dimesions(mm) 450×300×450 880×640×1200 1300×800×1400
Power of motor
0.18 5.5 11
Weight(kg) 25 400 780

Production capcity(kg/h)

100-300 250-600

Note:Becaise the rae materials exist in difference,the output in the table is for reference only.]
