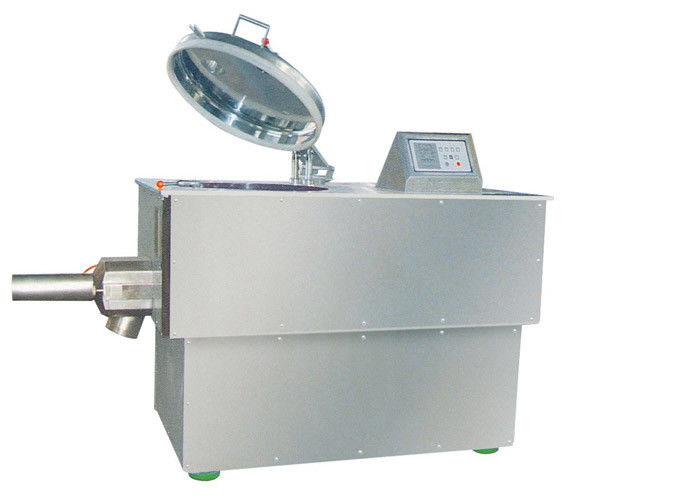

0.2mm Rapid Mixer Granulator

0.2mm Rapid Mixer Granulator

Product Details:

Place of Origin: China
Certification: SGS CE ISO
Model Number: GHL

Payment & Shipping Terms:

Minimum Order Quantity: 1units
Price: USD1900-3890 per unit
Packaging Details: plywood or shipping container
Delivery Time: 25 working days
Payment Terms: Western Union, MoneyGram, D/A, L/C, D/P, T/T
Supply Ability: 1000units per year
Get Best Price Contact Now

Detail Information

Material: SUS304 SUS316L Food Grade GMP Standard: GMP
Product: Granules Cutter: Speed Viable
Color: Stainless Steel Voltage: 380V 220V 400V 415V
Granule Size: 0.2mm- 2mm Principle: Rapid Mix And Cut
Name: Rapid Mix Granulator/ High Speed Wet Mix Granulator
High Light:

2mm Rapid Mixer Granulator

,

0.2mm Rapid Mixer Granulator

Product Description

Food / Medicine High Speed Mixer Granulator , 0.2mm - 2mm Rapid Mass Granulator



High efficiency wet rapid mixer granulator working principle

The powdery material is semi-flowed and thoroughly mixed in the container due to the stirring action of the mixed slurry, and then injected into a binder (a fluid such as a Chinese medicine flow extract) to make it a wetting software, and the whole granule (granulation knife) Cut into uniform wet particles.



Rapid mixer granulator characteristics

1. The mixing granulation is completed once, the processing time is greatly shortened, and the efficiency is improved by 4-5 times.

2. The material is mixed and granulated in a closed stainless steel container, which meets the GPM requirements.

3. The expected product can be produced at one time, the production is stable and the product quality is high.

4, easy to operate, adjust the time controller according to the process arrangement, the mixing granulation process can be completed in one cycle.

5, safe operation, operating in a closed container, equipped with a safety interlock device, the power is automatically cut off when the container lid is opened.

6. The mixing motor realizes stepless adjustment to meet the diversity of pharmaceutical processes.

7. The inverted cone granulation integrated pot technology and the special shape of the mixing slurry and cutting knife ensure that the granulated finished product is more uniform and reliable.

8, automatic control.





Technical Parameter

Type A B C×D E F
50 320 950 1250×800 970 1650
150 420 1000 1350×800 1050 1750
200 500 1100 1650×940 1450 2050
250 500 1160 1650×940 1400 2260
300 550 1200 1700×1000 1400 2310
400 670 1300 1860×1100 1550 2410
600 750 1500 2000×1230 1750 2610



Name Type
50 150 200 250 300 400 600
Volume L 50 150 200 250 300 400 600
output capacity kg/batch 15 50 80 100 130 200 280
admix speed r.p.m 200/400 180/270 180/270 180/270 140/220 106/155 80/120
admix power kw 4/5.5 6.5/8 9/11 9/11 13/16 18.5/22 22/30
cutting speed r.p.m 1500/3000 1500/3000 1500/3000 1500/3000 1500/3000 1500/3000 1500/3000
cutting power kw 1.3/1.8 2.4/3 4.5/5.5 4.5/5.5 4.5/5.5 6.5/8 9/11
compressed air consumption m3/min 0.6 0.9 0.9 0.9 1.1 1.5 1.8
weight kg 500 800 1000 1300 1800 2200 2600
