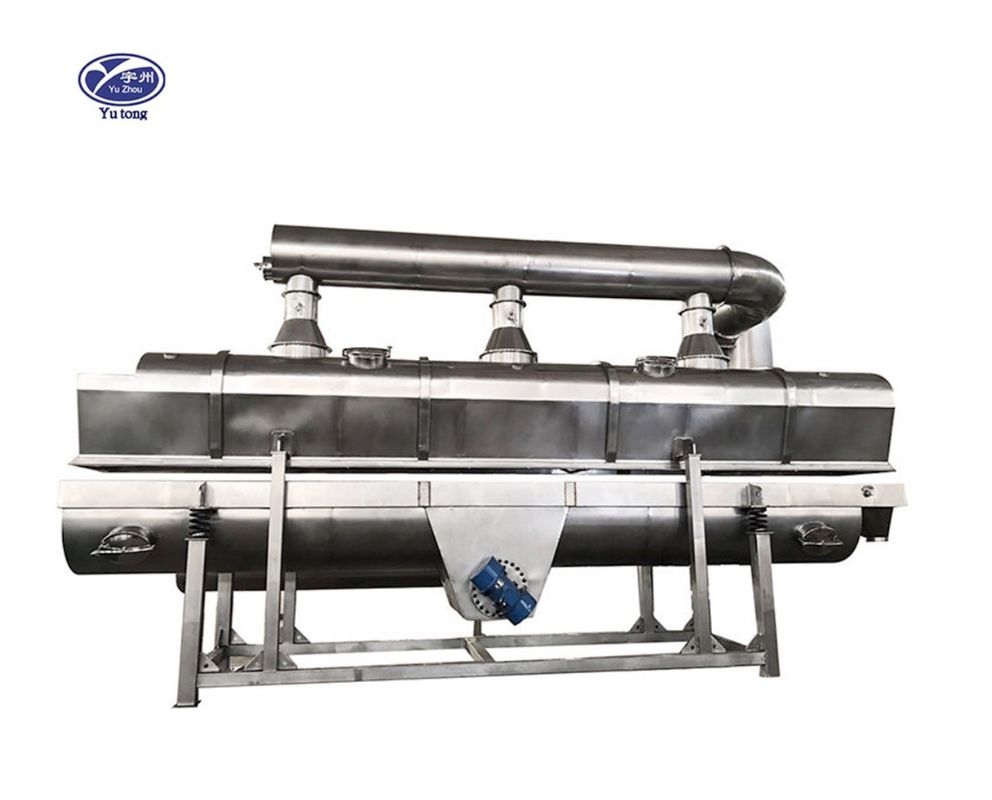

Industrial Vibro Fluid Bed Dryer , Segment Feeder Sugar Drying Machine
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | YUTONG |
| Certification: | CE, ISO 9001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Box |
| Delivery Time: | 30 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5Set |
|
Detail Information |
|||
| Type: | Fluid Bed Drying Equipment | Application: | Medicine Processing, Chemicals Processing, Plastics Processin |
|---|---|---|---|
| After Warranty Service:: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service | Key Selling Points: | Multifunctional |
| Heating Source: | Steam+electricity Hot Water,heat Conduction Oil | Power: | Variable |
| High Light: | Industrial Vibro Fluid Bed Dryer,Sugar Vibro Fluid Bed Dryer,Vibro sugar drying machine |
||
Product Description
Industrial vibration fluid bed dryer for sugar salt bread crumb citric acid Fluid Bed Drying Equipment
Description:
The dryer consists of air filter, heater, fluidized bed, rotating segment feeder, cyclone separator, bag dust remover, high press, centrifugal fan and stage for operation. According to the different characters of different materials to be dried, the dryer can be equipped with both cyclone separator and bag dust remover or with either of them. General speaking, for those pellet materials with a large specific gravity, only a cyclone separator is needed. And for those granule or powder materials with a small specific gravity, a bag dust remover is needed and so is a pneumatic conveying device if possible. The dryer can also be equipped with a rotating segment feeder if required.
Application:
The dryer is suitable for drying pellet or granules materials such as raw materials for medicine, tablet granules, traditional Chinese medicine drink granules in pharmaceutical industry, plastic resin, citric and other powder or granules in chemical industry. It also can dry grain, corn embryo, feed etc. The most suitable diameter of the material is 0.2-3mm.
Principle of work:
Granules or pellet solid materials are fed into the fluidized bed dryer through the feeder. Filtrated clean air is heated and charged onto the bottom of the fluidized bed to contact with the solid materials on the distributing plate, where fluidization can be reached and the heat exchange between solid and air can be achieved. After being dried, the products are discharged from outlet. Waste gas is disperse from the top of the fluidized bed, and powder materials are recovered by the cyclone separator or bag dust remover.
Q: Delivery period:
A: Around 20-60 days, delivery perious will vary from different types of machin-ery,
Q: Payment of terms:
A: Acceptable payment of terms: T/T, L/C, Cash after signing the contract, firstdeposit 30% of total as prepayment,and rest 70% after FAT but before shipment
Q: Quality Warranty:
A: We guarantee all the machines are brand new, and we design and manufac-ture as per approbation by user; We guarantee every set of our machine after shipment is have guarantee period 15 months, during warranty period we will provide technician debuggingonsite, or free spare parts caused by the malfunction of machines. We guarantee we reply the user's bewilderment within 24 hrs after receive noti-fication.
Q: Package of merchandise:
A: First pack with plastice membrane wrap on the surface of machines,external we use plywood case, finall load in container.
Q: What is service when we place an order with you?
A: First we invite you to visit our factory, and negotiate the tecnnology andchoose model and type of machines for users, and give feasible advice of eachmaterial. Secondly we thank for you if you visit our factory to do FAT before shipment,give us your advice and we modify the machine if not meet the user's satisfac-tion. Last, we will dispatch at least 1 experienced and responsible technician togo to abroad for guide commissioning and train the operators. lf no need onsitecommissioning, we provide video guidance.
Q: Which information do you require then you could choose model subse-quently?
A: We need to know the information as below: What is your material name? What is the initial moisture percentage before drying?What is the residual moisture percentage after drying? What is the heating temperature your material can undertake during dryingprocess? What is the heating source, steam, electricity, natural gas or others?Last but important, what is capacity how many kgs/h before drying or afterdrying?
