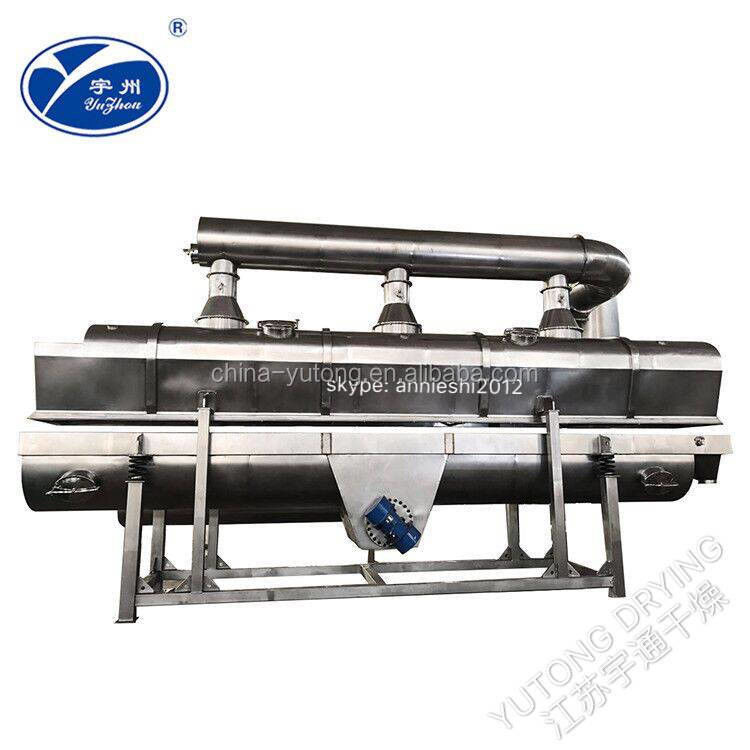

3m PVC Reciprocating Vibro Fluid Bed Dryer For Powder Granules

3m PVC Reciprocating Vibro Fluid Bed Dryer For Powder Granules

Product Details:

Place of Origin: Jiangsu, China
Brand Name: YUZHOU
Certification: ISO9001, ISO14001

Payment & Shipping Terms:

Price: $1,000.00/Sets
Packaging Details: as per customer's requirement
Get Best Price Contact Now

Detail Information

Name: Vibro Fluid Bed Dryer Application: Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing
Bed Length: 3m-12m Voltage: 220v-450v
Power: 1.6kw-7.4kw Material: Stainless Steel
Installation: Engineer Guide Bed Width: 0.3m-1.2m
High Light:

Reciprocating Vibro Fluid Bed Dryer

,

Powder Granules Vibro Fluid Bed Dryer

,

3m vibrating fluid bed dryer

Product Description

PVC Reciprating Vibrating Fluid Bed Dryer Powder Granules Drying Equipment Vibro Fluid Bed Dryer



FEATURE
Adopts new type quick-open structure for upper bed and bottom bed.Upper bed can be moved easily.So it is
very convenient to clean and wash the drying system.
Bed plate adopts laser punching.it can avoid the deformation in common punching process effectively.
Bottom bed adopts stainless steel seamless tube for supporting,the structure of bed is more stronger and make
the life of equipment longer.
Material is heated uniformly,heat exchanging is full and drying intensity is high.Energy can be saved about3o%.
Vibration source is vibrating motor.It features constant operation,convenient maintenance,low noise and long
life.
Fluid state is stable,there is no phenomenon of gap or blowing out.
There is less damage to the surface of material.It can be used for drying material that is easy to broken.The wor
efficiency is not affected even if the granule of material is irregular.
Adopts full sealed structure.It effectively avoids cross infection between and air,the operation environment is
clean.



DESCRIPTION
Vibrating fluid bed dryer is widely used for operation of drying,cooling and damp increasing(or carry out at the
same time)for powder or granule materials.Material is fed into the machine from feeding inlet,and moves
forward continuously along with the level of fluid bed under the action of vibration force.Hot air passes through
fluid bed and carries out heat exchanging with damp material.Then the damp air is exhausted out by exhaust fan,
some fine powder is collected by cyclone separator and dust remover,and dried product is discharged from
discharging outlet,



PRINCIPLE

YUTONG DRYING Raw material is feed into the machine from equipment inlet and move forward continuously along with the
horizontal direction under vibratory power.The hot air passes through fluidized-bed and exchange with raw
materials damp,then the wet air is dusted by cyclone separator and exhausted from air outlet,the dried material
is discharged through finished material outlet.



3m PVC Reciprocating Vibro Fluid Bed Dryer For Powder Granules 0

Q: Delivery period:

A: Around 20-60 days, delivery perious will vary from different types of machin-ery,

Q: Payment of terms:
A: Acceptable payment of terms: T/T, L/C, Cash after signing the contract, firstdeposit 30% of total as prepayment,and rest 70% after FAT but before shipment
Q: Quality Warranty: A: We guarantee all the machines are brand new, and we design and manufac-ture as per approbation by user; We guarantee every set of our machine after shipment is have guarantee period 15 months, during warranty period we will provide technician debuggingonsite, or free spare parts caused by the malfunction of machines. We guarantee we reply the user's bewilderment within 24 hrs after receive noti-fication.
Q: Package of merchandise: A: First pack with plastice membrane wrap on the surface of machines,external we use plywood case, finall load in container.
Q: What is service when we place an order with you?
A: First we invite you to visit our factory, and negotiate the tecnnology andchoose model and type of machines for users, and give feasible advice of eachmaterial. Secondly we thank for you if you visit our factory to do FAT before shipment,give us your advice and we modify the machine if not meet the user's satisfac-tion. Last, we will dispatch at least 1 experienced and responsible technician togo to abroad for guide commissioning and train the operators. lf no need onsitecommissioning, we provide video guidance.
Q: Which information do you require then you could choose model subse-quently?
A: We need to know the information as below: What is your material name? What is the initial moisture percentage before drying?What is the residual moisture percentage after drying? What is the heating temperature your material can undertake during dryingprocess? What is the heating source, steam, electricity, natural gas or others?Last but important, what is capacity how many kgs/h before drying or afterdrying?
