Product Details:

Place of Origin: Jiangsu, China
Brand Name: yuzhou
Certification: ISO14001 ISO9001
Model Number: LPG

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: plywooden case,wooden case,or make it as u requirements
Delivery Time: 45-90days
Payment Terms: L/C, T/T
Supply Ability: 20 Set/Sets per Month high quality Sodium silicate spray dryer drying machine
Get Best Price Contact Now

Detail Information

Type: Spray Drying Equipment Power: According To The Actual Sitation
Dimension(L*W*H): According To The Actual Sitation After-sales Service Provided: Engineers Available To Service Machinery Overseas
Weight: According To The Actual Sitation Name: High Quality Sodium Silicate Spray Dryer Drying Machine (spray Dryer)
Application: Food Chemical Pharmaceutical Heating Source: Electricity Steam Oul Gas

Product Description

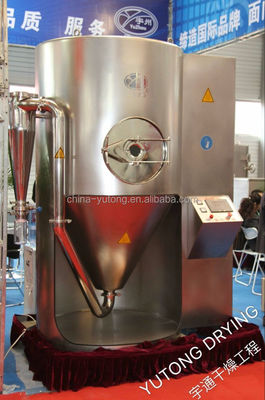

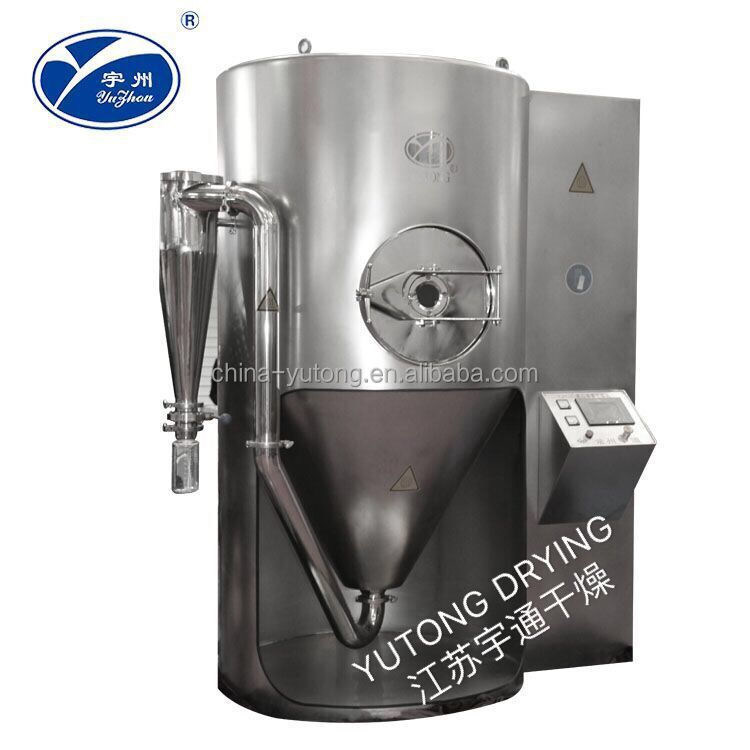

LPG series high quality agriculture spray dryer


Working principle

After filtering and heating, the air enters into the hot air distributor at the top of the centrifugal spray dryer, and the hot air will spirally and evenly goes into the drying chamber. The material liquid via high-speed centrifugal atomizer rotates into extremely thin vaporific liquid globule and parallelly flows with the hot air, and then the liquid will be dried into powdery products in a very short time (5-10 seconds). The waste gas after filtering will be expelled through the fan. For the wet organic solvent materials, the spray drying machine can be designed with closed cycle process. It can utilize cyclic nitrogen to dry the materials.

Technological process

Pharmaceutical Sodium Silicate Spray Dryer Drying Machine Industrial Drying Machine 1

Features

1.LPG centrifugal spray dryer with fast drying speed can constantly evaporate 95%-98% moisture. The drying time is about 5 seconds to 15 seconds. This drying equipment is especially suitable for thermosensitive substance.
2.This spray dryer has excellent uniformity, liquidity and solubility as well as high purity.
3.This spray drying machine has simple production process and easy operation. After drying, it does not need to grind and screen, which can reduce production procedure and enhance the purity.Pharmaceutical Sodium Silicate Spray Dryer Drying Machine Industrial Drying Machine 3Pharmaceutical Sodium Silicate Spray Dryer Drying Machine Industrial Drying Machine 5

Technical parameters

Item/Model LPG
  5 25 50 100 150 200-2000
Inlet Temperature (ºC)   ≤ 350
Outlet Temperature (ºC)   80 to 90
Maximum Moisture Evaporation (kg/h)* 5 25 50 100 150 200-2000
Drive type of Centrifugal Spray Nozzle Compressed air drive Mechanical drive
Rotating Speed 25000 22000 21500 18000 18000 15000
Diameter of Spray Disk (mm) 50 102 108 108 150 180-340
Heat Source Electricity Electricity Electricity+ steam, fuel oil, gas Electricity+ steam Electricity+ steam, fuel oil, gas Depending on users
Maximum Power of Electric Heating (kw) 8 31.5 60 81 99
Overall Dimensions (L × W × H) 1.8 × 0.93 × 2.2 3 × 2.7 × 4.26 3.7 × 3.2 × 5.1 4.6 × 4.2 × 6 5.5 × 4.5 × 7 According to the actual situation
Dry Powder Recovery (%) ≥ 95 ≥ 95 ≥ 95 ≥ 95 ≥ 95 ≥ 95

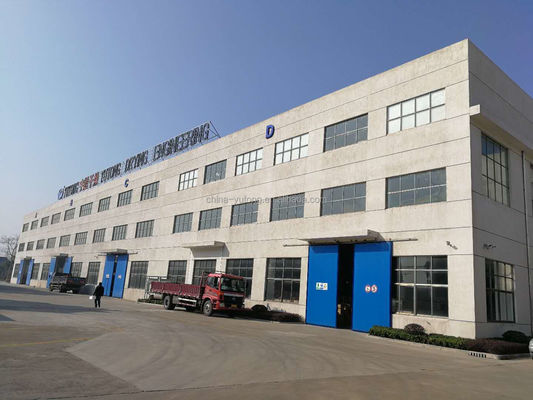

Jiangsu Yutong drying engineering Co.,ltd was established in 2000,its located in a famous town called “Jiaoxi” town occupying over 50 Chinese arces field with 16000 square meter building area , among 150 staff,50 people are above junior college and 20 people are with medium and senior of professional engineering title.

Yutong company is professional manufacturer of drying machines the granulator mixing machine grinder machine. Concentrating, nitrogen closed circulating and so on in chemical industry pharmaceutical industry foodstuff industry agrochemical industry, environment project. New material and new energy petrochemical, medicine, electricity, mine industry etc.

We have the implemented a strict and complete quality control system, when we finish each equipment we will have testing in factory in order to ensue each equipment fit the customer quality requirement. Our products conform to international standard such as GMP, SGS.

We have R&D team each year we develop 1-2 new product. Also we have professional after sale team they will help u installation debugging production on time.



1.Jiangsu yutong drying engineering was established in 2000 with more than 17 year experience 150workers 16000square meter and recently we will expasion factory areaaf

2.We have a professional technical team we can make scheme as u requirement

3.We have after service team they will help u installation debugging and production on time

4.Before the machines leave our factory we will have the testing to make sure the machines fit u requirement then arrange shipping

5.Delivery time short, good quality competitive price

6.Each year develop the new products

7.Customer can com to jiangsu yutong drying engineering co.,ltd for testing

8.ISO SGS certificate machine fit GMP requirement CIQ certificate
