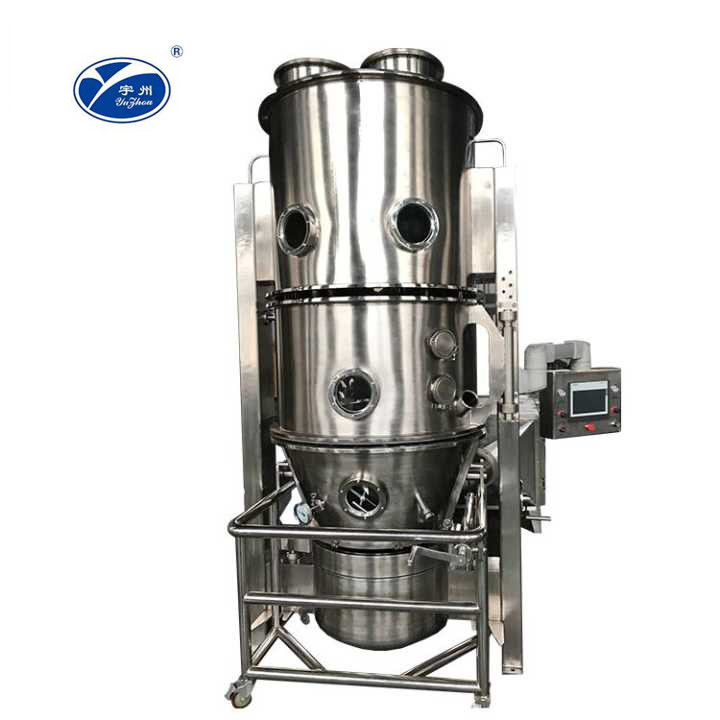

FG Steam Fluid Bed Dryer , Verticle Pharmaceutical Fluid Bed Dryer

FG Steam Fluid Bed Dryer , Verticle Pharmaceutical Fluid Bed Dryer

Product Details:

Place of Origin: China
Brand Name: YUTONG
Certification: SGS, CE, ISO
Model Number: GFG

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Price: USD10990-59000/unit
Packaging Details: shipping container
Delivery Time: 35 working days
Payment Terms: L/C, D/A, D/P, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000unit per year
Get Best Price Contact Now

Detail Information

Name: Industrial Fluid Bed Dryer Material: SUS 304, SUS316L
Heating Source: Steam Or Electricity Drying Temperature: 30-200℃
HS Code: 8419399090 Packing: Shipping Container
Type: Verticle Type Cart: Movable
Production Period: 25 Working Days Item: Fluidized Bed Dryer In Food Industry
High Light:

GFG continuous fluid bed dryer


Pharmaceutical continuous fluid bed dryer


verticle pharmaceutical fluid bed dryer

Product Description

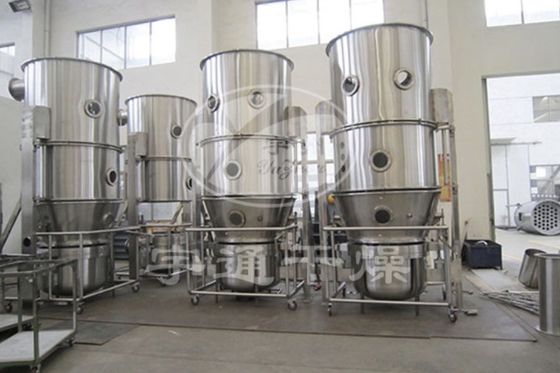

GFG Steam Heating Industrial Fluid Bed Dryers



High efficiency industrial fluid bed dryer is a kind of pellet material fluidizing/boiling drying equipment for 0.1-6mm, which is suitable for pharmaceutical, food, light industry and chemical industry. Natural air under the suction of the fan, through the purification cabinets, heaters, in the material bed bed small holes in the formation of high-speed airflow, and the material is boiling state, in the gas-solid two-phase large area contact in the process of material moisture quickly evaporated, so as to achieve drying.



Industrial fluid bed dryers are used for Food powder or granule drying, chemical powder drying, medicine powder drying.

Also used for boiling drying of particle material with a size of 0. 1-6mm, and suitable for speedy drying of finished product, intermediate (semi finished product) in such trades as pharmaceutical, food, light industry and chemical etc.


Working principle
Used the draught of fan, natural air flows through purifying cabinet, heater and froms high speed air flow in the hole of material bed, which makes the material into boiling(fluidized)status, during the large area touch between gas and solid phases, mosture of material is veaporated quickly, and thus reaching the purpose of drying.



Main feature
Fluid bed dryers hopper is sealed with frame by way of O type air cell, featuring convenient handling. Hopper is equipped with agitator inside, materail is dried uniformly and speedily without boiling dead angle.
Filter bag and cylinder automatic bag shake unit are supplied on the top to avoid materialloss.
With air purifying cabinet, it usesoutdoor air has no influence on air purifying load of purified workshop.
High drying speed, drying time can be freely set up according to features of materials, normally at 10-30min.



Techinical parameters


Item Model
GFG-60 GFG-100 GFG-120 GFG-150 GFG-200 GFG-250 GFG-300
Volume of hopper L 200 300 400 500 650 800 1000
Production capacity kg/ 30-60 50-100 60-120 70-150 100-200 120-250 150-300
Air inlet temperature 0C       50-100
Fan Blast M3/h 2576 3488 3619 5114 5153 6032 7185 7766
Air pressure Pa 5639 5080 7109 5869 9055 7610 7400 7218
Motor power kw 7.5 11 11 15 18.5 22 22 30
Agitator Speed r/min 11 11 11 11 11 11 11
Motor power kw 0.55 1.1 1.1 1.5 1.5 2.2 2.2
Steam Pressure Mpa 0.4 0.4 0.4 0.4 0.6 0.6 0.6
Consumption kg/h 140 170 210 240 230 280 280
Compressed air Pressure Mpa 0.5 0.5 0.5 0.5 0.5 0.5 0.5
Consumption m3/h 0.6 0.6 0.6 0.9 0.9 0.9 0.9
Weight of main frame kg 1000 1200 1200 1500 1700 2000 2200
