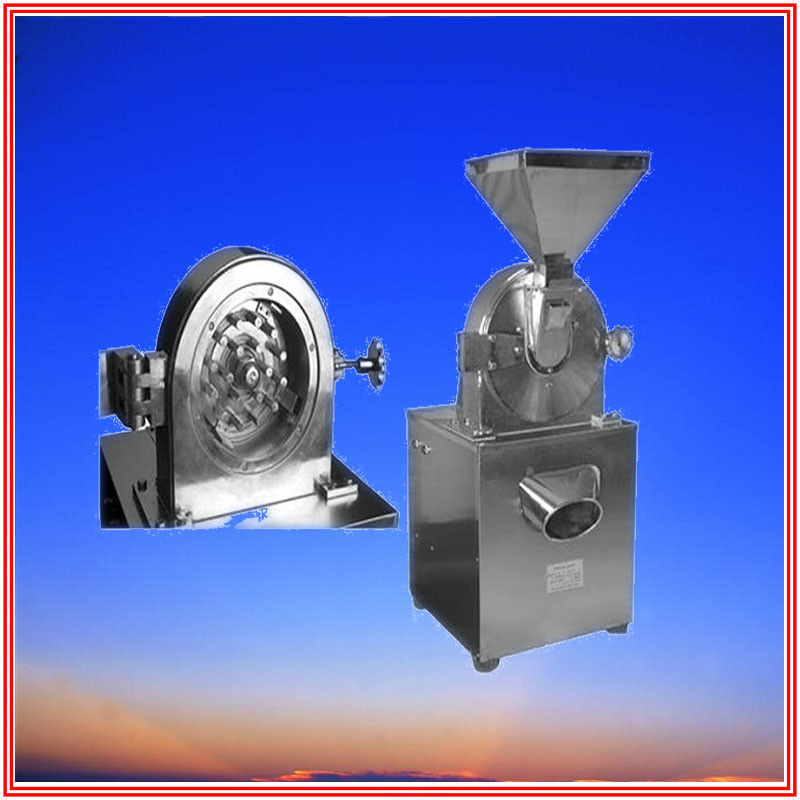

GMP Pin Mill Grinder , 20-120mesh Bean Stainless Steel Pulverizer
Product Details:
| Place of Origin: | China |
| Certification: | SGS CE ISO |
| Model Number: | 30B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1units |
|---|---|
| Price: | USD1390-3990 per unit |
| Packaging Details: | plywood or container |
| Delivery Time: | 20 working days |
| Payment Terms: | Western Union, MoneyGram paypal |
| Supply Ability: | 10000units per year |
|
Detail Information |
|||
| Material: | Stainless Steel 304 Or 316L | Application: | Food Or Pharmaceutical Industries |
|---|---|---|---|
| Standard: | GMP | Grinding Teeth: | Pin |
| Filter: | Bag Filter | Discharge: | 20-120mesh |
| Feed Size: | Below 12mm | ||
| High Light: | GMP pin mill grinder,120mesh stainless steel pulverizer |
||
Product Description
Application:
crushing and classification of chemical products, food, cosmetics, dyes, resins, shell materials and other materials.
30B Series high efficiency mill by the host, auxiliary equipment, electronic control of three components, compact design, reasonable structure. For medicine, chemicals, pesticides, food and food industries, extremely versatile. Grinder built with hierarchical institution, the crushing and grading once. Thermal vacuum conveying the grinding mill machine when operating cavity produced a steady stream discharge, it is also adapted to the crushing heat-sensitive materials. 30B Series grinder to adapt a wide range of highly efficient, continuous production process, the particle size is adjustable; capable of handling such as: crushing and classification of chemical products, food, cosmetics, dyes, resins, shell materials and other materials.
B series grinder parameter:
| Model | 20B | 30B | 40B | 60B |
| Capacity (kg/h) | 60-150 | 100-300 | 160-800 | 500-1500 |
| Rotation speed (r/min) | 4500 | 3800 | 3400 | 2800 |
| feed size(mm) | 6 | 10 | 12 | 15 |
| outlet size (mesh) | 60-120 | 60-120 | 60-120 | 60-120 |
| Power (kw) | 4 | 5.5 | 11 | 15 |
| Weight (kg) | 250 | 320 | 550 | 680 |
| Overall size (L×W×H)(mm) | 550×600×1250 | 600×700×1450 | 800×900×1550 | 1000×900×1680 |
