Pin Teeth Stainless Steel Grinding Machine 20-100 Mesh Discharge

Pin Teeth Stainless Steel Grinding Machine 20-100 Mesh Discharge

Product Details:

Place of Origin: China
Certification: ISO CE SGS
Model Number: 20B

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Price: USD 1899-9897 per unit
Packaging Details: export plywood or shipping container
Delivery Time: 15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100units per month
Get Best Price Contact Now

Detail Information

Name: Muti Functional Stainless Steel Grinder Other Name: Stainless Steel Mill
Structure: Pin Teeth Production: Continuous
Material: Stainless Steel 304 Discharge: 20-100 Mesh
Application: Pepper, Spice, Nut, Salt, Sugar, Chemical, Herb
High Light:

100Mesh Stainless Steel Grinding Machine


20Mesh Stainless Steel Grinding Machine

Product Description


Muti functional stainless steel grinder for pepper, spice, nut, salt, sugar, chemical, herb

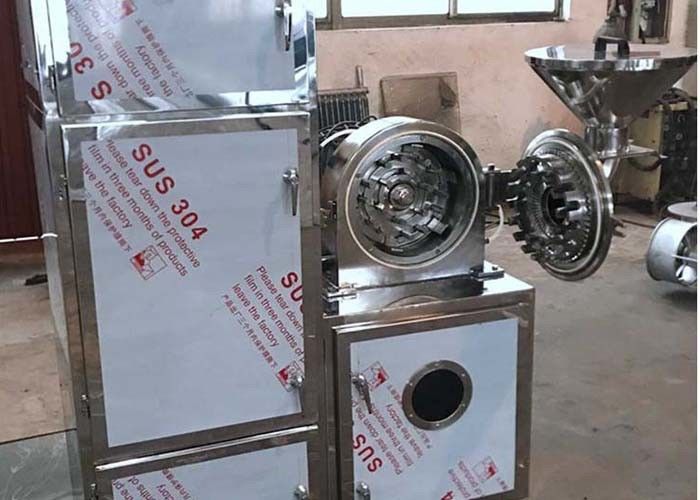

Stainless steel mutifunctional grinder structure:

1. Fixed sprocket: fixed on the door, with a large fixed sprocket.

2. Active toothed disc: There are beat teeth, main crushing teeth and grinding teeth.

3. Screen: Select the screen suitable for the aperture according to the requirements of the finished product size (mesh).

4, switch and rotation direction: green - boot red - off - the motor rotation direction is indicated by the arrow marked by the machine (reverse rotation is prohibited).


Pin Teeth Stainless Steel Grinding Machine 20-100 Mesh Discharge 0

Universal crusher is suitable for pharmaceutical, chemical, metallurgy, food, construction and other industries. Processing hard and hard-to-crush materials, including pulverizing plastics, copper wire, Chinese herbal medicines, rubber, etc., and also as an auxiliary equipment for the processing of micro-grinders and superfine pulverizers. The powder collection room adopts a fully enclosed sound-absorbing structure, which can effectively reduce the working noise. The machine is equipped with a cooling device to reduce the machine temperature and make the work more stable. The motor speed of the machine is 5000 rpm. This machine is made of Icr18Ni9Ti stainless steel material and has strong wear and corrosion resistance. It is suitable for processing advanced and corrosive materials. The machine adopts the impact crushing method. After the material enters the crushing chamber, it is impacted by six movable hammers rotating at high speed. The ring gear and the material collide with each other to crush, and the crushed material enters through the sieve hole with the help of airflow. Powder bag, leaving no residue. It has the advantages of high efficiency, low noise, reliable performance and product quality, safe operation, low drug hygiene and low loss.
The material of the universal pulverizer is fed into the pulverization chamber by the feeding hopper. The impact knives and the fixed knives are simultaneously sheared and pulverized by the impact of the blade and the knife seat. The material automatically flows out from the outlet due to the centrifugal force of the rotation.
Note: Due to the large difference in materials, the difference in yield is also large.


B series grinder parameter:
Model 20B 30B 40B 60B
Capacity (kg/h) 60-150 100-300 160-800 500-1500
Rotation speed (r/min) 4500 3800 3400 2800
feed size(mm) 6 10 12 15
outlet size (mesh) 60-120 60-120 60-120 60-120
Power (kw) 4 5.5 11 15
Weight (kg) 250 320 550 680
Overall size (L×W×H)(mm) 550×600×1250 600×700×1450 800×900×1550 1000×900×1680
