Screw Augar Herbal Pulverizer Machine 20-500kg/H Processing

Screw Augar Herbal Pulverizer Machine 20-500kg/H Processing

Product Details:

Place of Origin: China
Certification: ISO CE SGS
Model Number: WF-30

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Price: USD 2999-9897 per unit
Packaging Details: export plywood or shipping container
Delivery Time: 15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100units per month
Get Best Price Contact Now

Detail Information

Name: Herbal Grinder Other Name: Herbal Pulverizer
Structure: Screw Augar Production: Continuous
Material: Stainless Steel 304 Processing Capacity: 20-500kg Per Hour
Discharge Size: 20-150 Mesh Application: Herb Leaves, Roots
High Light:

20kg/H herbal pulverizer machine


500kg/H herbal pulverizer machine

Product Description


High Performance Continuous Herb Pulverizer For Herbal Roots , Fiber , Leaves



One. The main purpose of herb pulverizer:
This machine is mainly used for crushing materials such as animals and plant fibers.


Performance characteristics of herb pulverizer:
This machine is mainly used for the relatively high-speed movement between the movable cutter disc and the ring gear, so that the fiber is sheared and pulverized. The movable cutter disc has three different cutter combinations of coarse crushing, medium crushing and fine crushing, and the crushed finished product is obtained by cyclone separation. The finished product, the pulverized dust is recovered by the bag dust removal.

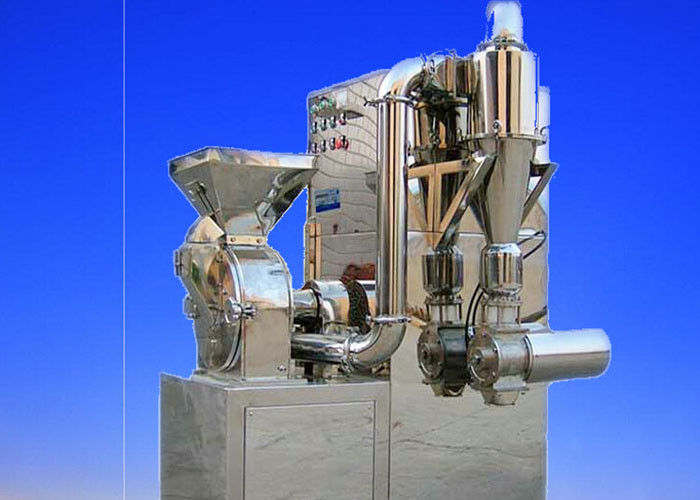

Screw Augar Herbal Pulverizer Machine 20-500kg/H Processing 0
The herb pulverizer is made of stainless steel, and there are water cooling devices in the bearing and crushing box classification; the ring gear is spiral sawtooth spiral. Can be continuously discharged, no dust flying during the production process, in line with GMP requirements.


Herb pulverizer has a set of main engine, auxiliary machine, collecting pipeline and electric controller quantitative feeding device. The auxiliary machine has a cyclone and pulse type dust collector, and the main machine is equipped with a centrifugal classifier. In addition to the crushing, it also has a classification function, sorting centrifugal shearing, no sieve and no net, powder particles can be adjusted arbitrarily, after the material is crushed The discharge valve outlet of the negative compression conveying is used. Meet the product requirements. The unit is the ideal machine for the pharmaceutical, food and chemical industries.


Technical parameters


Type 200 300 400
Production capacity (kg/h) 10-110 30-200 50-300
feeding granularity (mm) 5 12 15
Smash fineness(mesh) 60-320 60-320 60-320
Smash motor(kw) 5.5 7.5 1.5
Dust-absorption motor(kw) 1.1 1.5 2.2

Outline dimension

L×W×H (mm)

1000×800×1600 1200×850×1780 1500×900×1950
Weight(kg) 320 650
