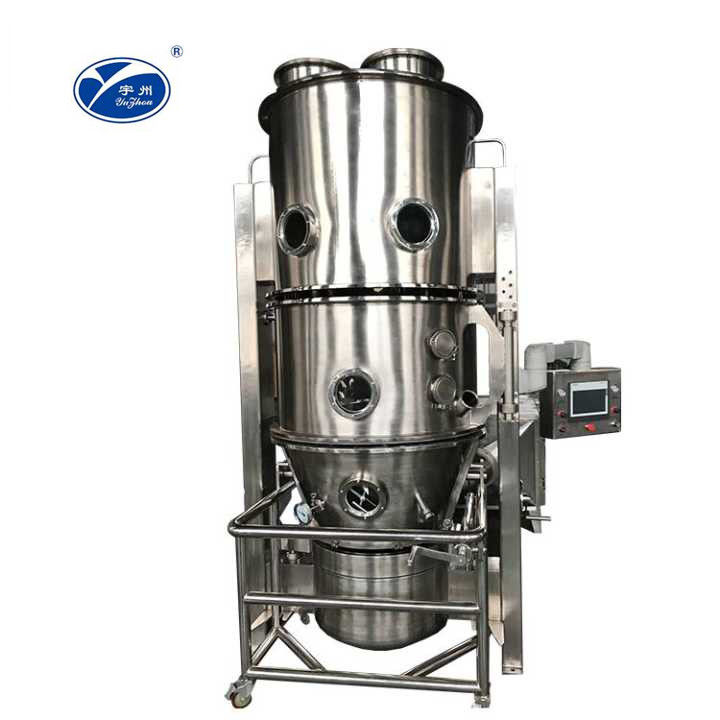

Spice SUS304 Vertical Fluidized Bed Dryer , 50-120KG/Batch Powder Drying Equipment

Spice SUS304 Vertical Fluidized Bed Dryer , 50-120KG/Batch Powder Drying Equipment

Product Details:

Place of Origin: China
Certification: SGS, CE, ISO
Model Number: GFG-120

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Price: USD10990-59000/unit
Packaging Details: shipping container
Delivery Time: 35 working days
Payment Terms: L/C, D/A, D/P, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000unit per year
Get Best Price Contact Now

Detail Information

Name: Fluid Bed Dryer Material: SUS 304, SUS316L
Temperature: 30-200 Evaporation Capacity: 50-120KG/HOUR
Heating Source: Electricity Or Steam Packing: 40HQ Container
Standard: GMP Application: Food, Chemical, Pharma
High Light:

SUS304 vertical fluidized bed dryer


50KG/H vertical fluidized bed dryer


120KG/H powder drying equipment

Product Description

Vertical industrial fluid bed dryer for drying wet powder, food flavor, additive, seasoning, spice


Working principle

After the air is heated and purified, the suction fan is imported from the lower part and through the hole net plate of the hopper.

In the work room, by stirring and negative pressure to form fluidization, water rapid evaporation with the exhaust, material quickly dry.

Characteristics industrial fluid bed dryer
The fluidized bed is a circular structure to avoid dead ends.
The hopper is set stirring to avoid the formation of a ditch flow when the wet material is reunited and dried.
The use of dumping material, convenient and thorough, can also be designed according to the requirements of automatic feeding system.
Closed negative pressure operation, air flow through filtration, easy to operate, easy to clean, is in line with the "GMP" requirements of the ideal equipment.

Drying speed, temperature uniformity, each batch drying time is generally in 20-30 minutes.



Use of industrial fluid bed dryer
The mechanism of screw extrusion particles, rocking particles, wet high-speed mixing granulation particles. In medicine, food, feed, chemical and other fields of wet particles and powder materials drying.
The diameter of the 0.1-6mm is good.
Large particles, small lumps, sticky fast granular materials.

Konjac, Polyacrylamide and other dry volume changes in the material.


Main technical parameters:

Item Model
GFG-60 GFG-100 GFG-120 GFG-150 GFG-200 GFG-250 GFG-300
Volume of hopper Liter 200 300 400 500 650 800 1000
Production capacity kg/batch 30-60 50-100 60-120 70-150 100-200 120-250 150-300
Air inlet temperature 0C       50-100
Fan Blast M3/h 2576 3488 3619 5114 5153 6032 7185 7766
Air pressure Pa 5639 5080 7109 5869 9055 7610 7400 7218
Motor power kw 7.5 11 11 15 18.5 22 22 30
Agitator Speed r/min 11 11 11 11 11 11 11
Motor power kw 0.55 1.1 1.1 1.5 1.5 2.2 2.2
Steam Pressure Mpa 0.4 0.4 0.4 0.4 0.6 0.6 0.6
Consumption kg/h 140 170 210 240 230 280 280
Compressed air Pressure Mpa 0.5 0.5 0.5 0.5 0.5 0.5 0.5
Consumption m3/h 0.6 0.6 0.6 0.9 0.9 0.9 0.9
Weight of main frame kg 1000 1200 1200 1500 1700 2000





Model Description Example: GFG-500 type refers to the hopper volume of 500 liters of efficient boiling dryer, production capacity of 70-150kg/batch.
