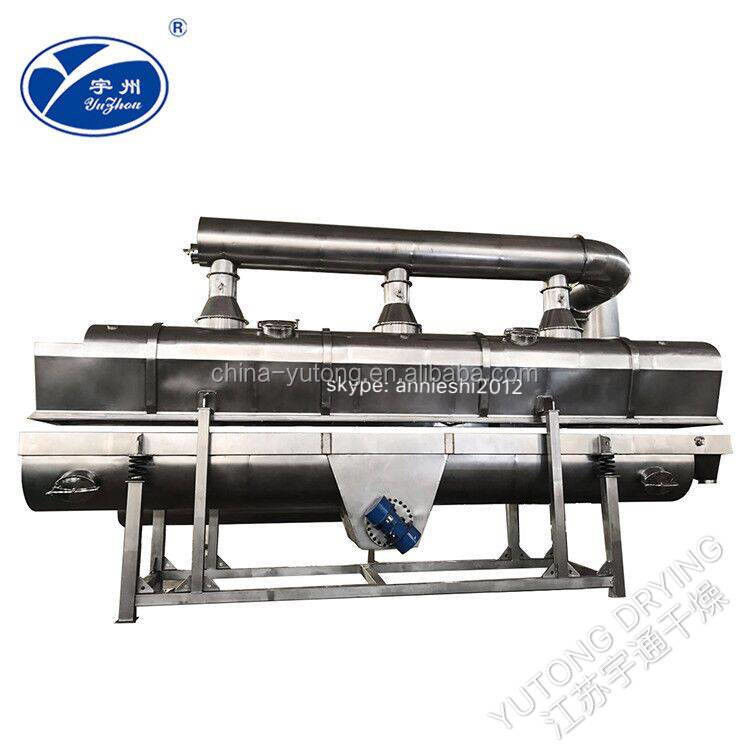

Horizontal SUS316L Fbd Fluid Bed Dryer For Pharmaceutical

Horizontal SUS316L Fbd Fluid Bed Dryer For Pharmaceutical

Product Details:

Place of Origin: China
Certification: SGS, CE, ISO
Model Number: ZLG

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Price: USD10990-59000/unit
Packaging Details: shipping container
Delivery Time: 30-45 working days
Payment Terms: L/C, D/A, D/P, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000unit per year
Get Best Price Contact Now

Detail Information

Name: Vibration Industrial Fluid Bed Dryer Material: SUS 304, SUS316L
Type: Fluid Bed Dryer Fluid: Horizontal Fluid Bed
Heating Source: Electricity,steam Or Natural Gas Packing: 40HQ Container
Appllication Industries: Food, Chemical, Pharmaceutical Production Period: 30-45 Working Days
High Light:

pharmaceutical fbd fluid bed dryer

,

SUS316L fbd fluid bed dryer

,

fbd dryer bed

Product Description

Horizontal Vibration Industrial Fluid Bed Dryer For drying wet beads, granules, pieces, flakes, slice



Easy To Operate Industrial Fluid Bed Dryers For Foodstuff Chemical Pharmacy Industry





Performance Features of industrial fluid bed dryers:

Vibration source is the use of vibration motor drive, smooth operation, easy maintenance, low noise, long life.

Fluidization symmetry, no dead space and blow-through phenomenon, can obtain uniform drying, cooling products. The adjustable is good, apply wide width.

The thickness of the material and the movement speed in the machine and the full amplitude change can achieve stepless adjustment. Small damage to the surface of the material.

Can be used for the drying of fragile materials, the material particles are irregular and does not affect the work effect. Industrial fluid bed dryers adopt a fully enclosed structure.

Effectively prevent the cross-infection between the material and air, the working environment is clean. Mechanical efficiency and high thermal efficiency, energy-saving effect is better than the general drying device can save 30,160.





Working principle

Material from the import into the machine, under the action of vibration, the material is thrown along the water level fluidized bed, forward continuous movement, hot air through the fluidized bed with the wet material heat exchange, the wet atmosphere by cyclone separator after dedusting by the exhaust 1:3 discharged.



The dry material is discharged by discharging the inlet.

Suitable material: Applicable to chemical, pharmaceutical, food, dehydrated vegetables, grain, minerals and other industries, powder, granular materials drying, cooling and other operations.

such as: citric acid, monosodium glutamate, borax, ammonium sulfide, compound fertilizer, Luo l, silk, soybean meal, lees, seeds, slag, sugar and so on.







Technical Parameter

Size
Model
A B C D E F Weight(kg)
ZLG3×0.30 3000 300 1350 900 430 1650 1250
ZLG4.5×0.30 4500 300 1350 900 430 1650 1250
ZLG4.5×0.45 4500 450 1550 950 430 1700 1670
ZLG4.5×0.60 4500 600 1650 950 430 1700 1670
ZLG6×0.45 6000 450 1650 950 430 1700 2100
ZLG6×0.60 6000 600 1700 1000 500 1700 2410
ZLG6×0.75 6000 750 1850 1000 600 1850 2840
ZLG6×0.9 6000 900 2000 1000 600 1850 3160
ZLG7.5×0.60 7500 600 1850 1000 600 1850 3200
ZLG7.5×0.75 7500 750 2000 1000 600 1850 3600
ZLG7.5×0.9 7500 900 2100 1000 600 1850 4140
ZLG7.5×1.2 7500 1200 2500 1150 800 2050 5190



Model Area of fluidized-bed
(M2)
Temperature of inlet air
(oC)
Temperature of outlet
(oC)
Capacity to vapor
moisture
(kg)
Vibration motor
Model Power Kw
ZLG3×0.30 0.9 70-140 40-70 20-35 ZDS31-6 0.8×2
ZLG4.5×0.30 1.35 70-140 40-70 35-50 ZDS31-6 0.8×2
ZLG4.5×0.45 2.025 70-140 40-70 50-70 ZDS32-6 1.1×2
ZLG4.5×0.60 2.7 70-140 40-70 70-90 ZDS32-6 1.1×2
ZLG6×0.45 2.7 70-140 40-70 80-100 ZDS41-6 1.5×2
ZLG6×0.60 3.6 70-140 40-70 100-130 ZDS41-6 1.5×2
ZLG6×0.75 4.5 70-140 40-70 120-140 ZDS42-6 2.2×2
ZLG6×0.9 5.4 70-140 40-70 140-170 ZDS42-6 2.2×2ZLG
ZLG7.5×0.60 4.5 70-140 40-70 130-150 ZDS42-6 2.2×2
ZLG7.5×0.75 5.625 70-140 40-70 150-180 ZDS51-6 3.0×2
ZLG7.5×0.9 6.75 70-140 40-70 160-210 ZDS51-6 3.0×2
ZLG7.5×1.2 9 70-140 40-70 200-260 ZDS51-6 3.0×2

* The above is the largest evaporation.


Fabrication of industrial fluid bed dryer body
