2.2kw Oscillating Machine , GMP Pharmaceutical Oscillating Granulator
Product Details:
Place of Origin: | China |
Certification: | ISO SGS CE |
Model Number: | YK |
Payment & Shipping Terms:
Minimum Order Quantity: | 1unit |
---|---|
Price: | USD 1690-3290 per unit |
Packaging Details: | export wooden case |
Delivery Time: | 15days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 100units per month |
Detail Information |
|||
Name: | Oscillating Granulator | Mesh Size: | 0.2mm-3mm |
---|---|---|---|
Roller Size: | 60mm 90mm 160mm 250mm 320mm | Principle: | Swaying Roller Press |
Standard: | GMP | Raw Material: | Soft Mix Wet Powder |
Function: | Pelletizing | ||
Highlight: | 2.2kw oscillating machine,GMP pharmaceutical oscillating granulator |
Product Description
Pharmaceutical Oscillating Granulator 2.2kw 1000 × 800 × 1300m Stable Performance

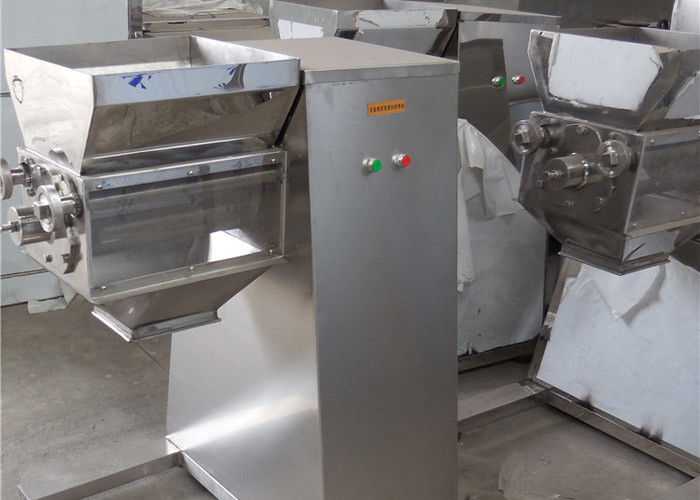

YK oscillating granulator is a kind of mixing moist powder, in the rotary drum of the positive and reverse rotation of the action,
Make the material mandatory through the roller of the triangular bars and sieve mesh made of special equipment for particles.
Oscillating granulator is mainly used in pharmaceutical, chemical, food and other industries to manufacture various specifications of the particles, drying into a variety of molded products, the machine can also be used to crush condensed into a block of dry material, all material contact is made of stainless steel materials. yk-Pellet Machine Features 1.
The machine has the advantages of compact structure, elegant appearance, convenient cleaning, simple operation, high output and low energy consumption. 2. Material contact is made of high-quality stainless steel and polished treatment, good finish, easy to clean, low noise, no wear material, operation, maintenance convenience, in line with the GMP requirements.
Technical Parameter
spec | YK160 | YK320 |
capacity | 50-200 kg/h | 50-400 kg/h |
power | 2.2kw | 7.5kw |
speed | 65rpm | 65rpm |
sway angle | 360o | 360o |
diameter | Φ160mm | Φ320mm |
weight | 450kg | 750kg |
overall dimension | 1000×800×1300m | 1500×1200×1500m |
