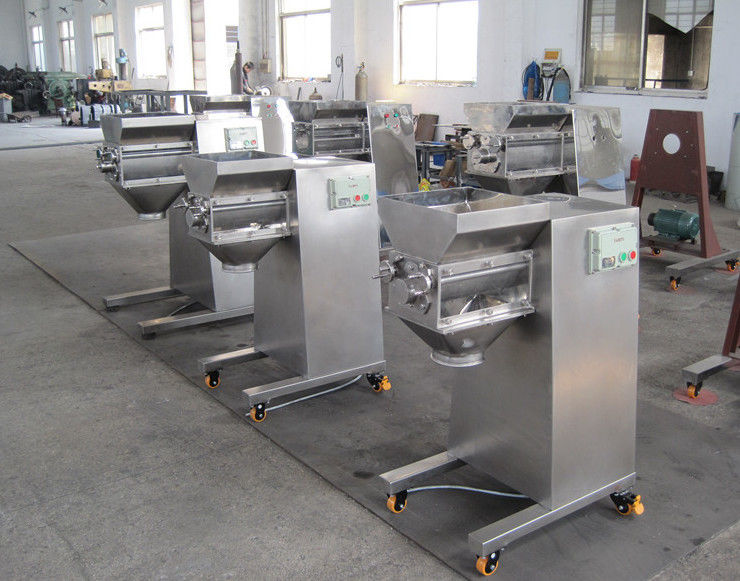

50-200kg/H Oscillating Granulator Machine For Wet Powder Mixture
Product Details:
Place of Origin: | China |
Certification: | ISO SGS CE |
Model Number: | YK |
Payment & Shipping Terms:
Minimum Order Quantity: | 1unit |
---|---|
Price: | USD 1690-3290 per unit |
Packaging Details: | export wooden case |
Delivery Time: | 15days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 100units per month |
Detail Information |
|||
Name: | Oscillating Granulator | Mesh Size: | 0.2mm-3mm |
---|---|---|---|
Roller Size: | 60mm 90mm 160mm 250mm 320mm | Principle: | Swaying Roller Press |
Standard: | GMP | Raw Material: | Soft Mix Wet Powder |
Function: | Pelletizing | ||
Highlight: | 200kg/H Oscillating Granulator Machine,50kg/H Oscillating Granulator Machine |
Product Description
High Speed Oscillating Granulator Machine 1500 × 1200 × 1500m Long Service Life
Ocsillating granulator machine Compare with rotary granulator
Working principle and characteristics of ocsillating granulator
1, the main purpose:
This machine is a special equipment for making the wet powder mixture into the granules under the action of the positive and negative rotation of the rotating drum.
2. Working principle and characteristics:
The motor, the V-belt wheel, the worm and the worm wheel drive, under the action of the eccentric crankshaft and the lifting rack, make the seven-corner hob of the gear shaft belt rotate periodically. The material is continuously moved and the particles are controlled and extruded by the screen and rotor gap. The production capacity varies with the moisture, type, viscosity and mesh of the material, and various sizes of particles can be produced. When the dry material is pulverized, the condensed material is collided and pulverized in a drum made of a seven-corner hob, and the dry material is forced to pass through the screen.
Technical Parameter
spec | YK160 | YK320 |
capacity | 50-200 kg/h | 50-400 kg/h |
power | 2.2kw | 7.5kw |
speed | 65rpm | 65rpm |
sway angle | 360o | 360o |
diameter | Φ160mm | Φ320mm |
weight | 450kg | 750kg |
overall dimension | 1000×800×1300m | 1500×1200×1500m |
