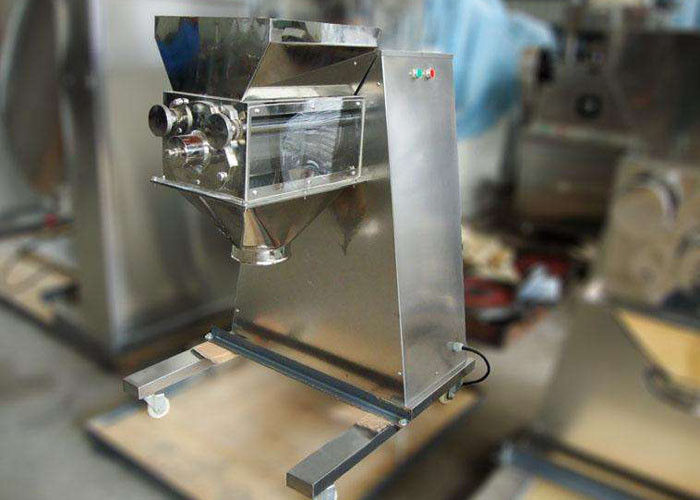

SUS304 / 316L Oscillating Granulator Machine , Mirror Polished Powder Granulator Machine

SUS304 / 316L Oscillating Granulator Machine , Mirror Polished Powder Granulator Machine

Product Details:

Place of Origin: China
Certification: ISO SGS CE
Model Number: YK

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Price: USD 1690-3290 per unit
Packaging Details: export wooden case
Delivery Time: 15days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100units per month
Get Best Price Contact Now

Detail Information

Name: Oscillating Granulator Mesh Size: 0.2mm-3mm
Roller Size: 60mm 90mm 160mm 250mm 320mm Principle: Swaying Roller Press
Standard: GMP Raw Material: Soft Mix Wet Powder
Function: Pelletizing
High Light:

SUS304 Oscillating Granulator Machine


316L powder granulator machine

Product Description

YK 160 Granulatoro Scillating Machine SUS304 / 316L Stainless Steel Mirror Polished


YK oscillating granulator machine structure:

The ocsillating granulator machine is equipped with motor + reduction box, which is made of high quality stainless steel material. The shape is beautiful and simple, easy to clean and meet the production requirements of GMP. The machine can granulate the mixed powdery material, or pulverize the dry material into the desired granules. It is suitable for small batch production in pharmaceutical, chemical, food, scientific research units, laboratories, hospitals and small health care products factories. This machine is also used in conjunction with the previous step of the tablet press.

Now, the rotary granulator and the ocsillating granulator machine are also popular among consumers in the market. In a short period of time, they become the pharmaceutical industry, chemical industry, food and scientific research units, etc., and are indispensable processing equipment.


The main purpose of ocsillating granulator machine:
Oscillating granulator is popular used in the pharmaceutical, chemical, food and other industries, the wet powder is made into granules, and the lumps of dry materials can be pulverized and can be quickly granulated.

working principle:
The drum is reciprocated by mechanical transmission, and the material is extruded from the screen to be granulated or pulverized or granulated.

Technical Parameter

spec YK160 YK320
capacity 50-200 kg/h 50-400 kg/h
power 2.2kw 7.5kw
speed 65rpm 65rpm
sway angle 360o 360o
diameter Φ160mm Φ320mm
weight 450kg 750kg
overall dimension 1000×800×1300m 1500×1200×1500m
