|Type:||Fluid Bed Drying Equipment||Name:||Vibrating Fluid Bed Dryer|
|Application:||Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing||Voltage:||220v-450v|
|Dimension(L*W*H):||As Design||After-sales Service Provided:||Online Support, Video Technical Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service|
|Drying Temperature:||40℃-140℃||Bed Width:||0.3m-1.2m|
vibrating Salt Industrial Fluid Bed Dryers,
40C Industrial Fluid Bed Dryers,
1.6kw salt drying machine

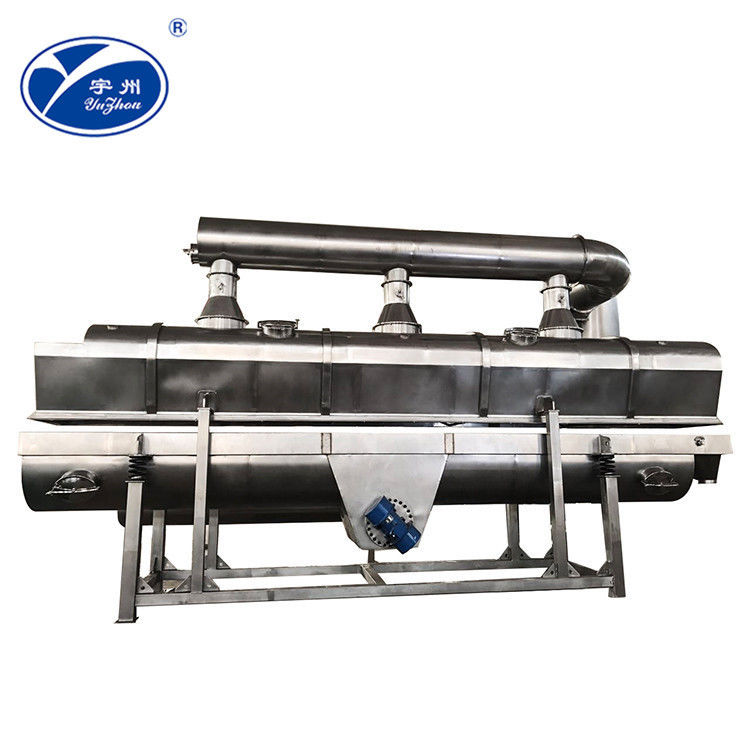

1.6kw Horizontal Salt Drying Industrial Fluid Bed Dryers Drying Temperature 40℃
Adopts new type quick-open structure for upper bed and bottom bed.Upper bed can be moved easily.So it is
very convenient to clean and wash the drying system.
Bed plate adopts laser punching.it can avoid the deformation in common punching process effectively.
Bottom bed adopts stainless steel seamless tube for supporting,the structure of bed is more stronger and make
the life of equipment longer.
Material is heated uniformly,heat exchanging is full and drying intensity is high.Energy can be saved about3o%.
Vibration source is vibrating motor.It features constant operation,convenient maintenance,low noise and long
Fluid state is stable,there is no phenomenon of gap or blowing out.
There is less damage to the surface of material.It can be used for drying material that is easy to broken.The wor
efficiency is not affected even if the granule of material is irregular.
Adopts full sealed structure.It effectively avoids cross infection between and air,the operation environment is
Granule or pellet solid materials are fed into the fluidized bed dryer through the feeder.Filtrated clean air is
heated and charged onto the bottom of the fluidized bed to contact with the solid materials on the distributing
plate,where fluidization can be reached and the heat exchange between solid and air can be achieved.After
being dried,the products are discharged from the outlet.Waste gas is discharged from the top of the fluidized
bed,and powder materials are recovered by the cyclone separator or bag dust remover.
