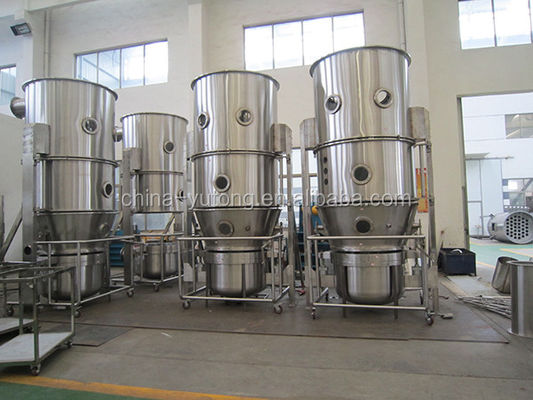

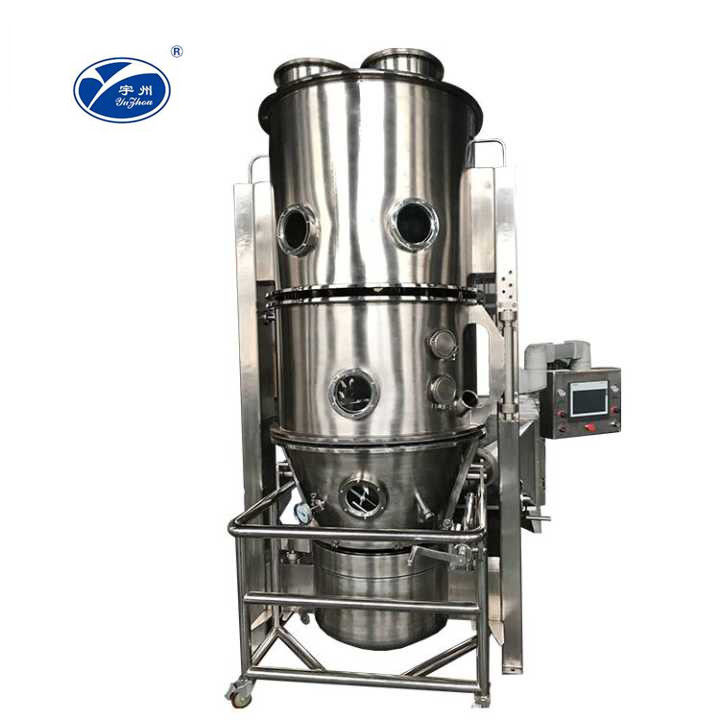

Copulation 0.1-6mm Vertical Fluidized Bed Dryer GMP Standard medicine powder or granule

Big Capacity Vertical Fluidized Bed Dryer Fast Drying Speed Low Maintenance

Application

Fluidized Bed Dryer is used for Food powder or granule drying, chemical powder drying, medicine powder drying.

Used for boiling drying of particle material with a size of 0. 1-6mm, and suitable for speedy drying of finished product, intermediate (semi finished product) in such trades aspharmaceutical, food, light industry and chemical etc.

Working principle
Used the draught of fan, natural air flows through purifying cabinet, heater and froms high speed air flow in the hole of material bed, which makes the material into boiling(fluidized)status, during the large area touch between gas and solid phases, mosture of material is veaporated quickly, and thus reaching the purpose of drying.

Main feature
Fluidized Bed Dryer  hopper is sealed with frame by way of O type air cell, featuring convenient handling. Hopper is equipped with agitator inside, materail is dried uniformly and speedily without boiling dead angle.
Filter bag and cylinder automatic bag shake unit are supplied on the top to avoid materialloss.
With air purifying cabinet, it usesoutdoor air has no influence on air purifying load of purified workshop.
High drying speed, drying time can be freely set up according to features of materials, normally at 10-30min.
