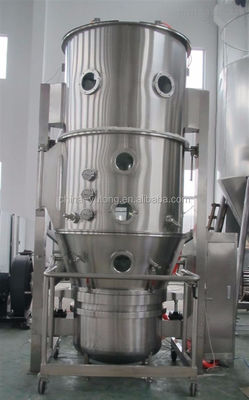

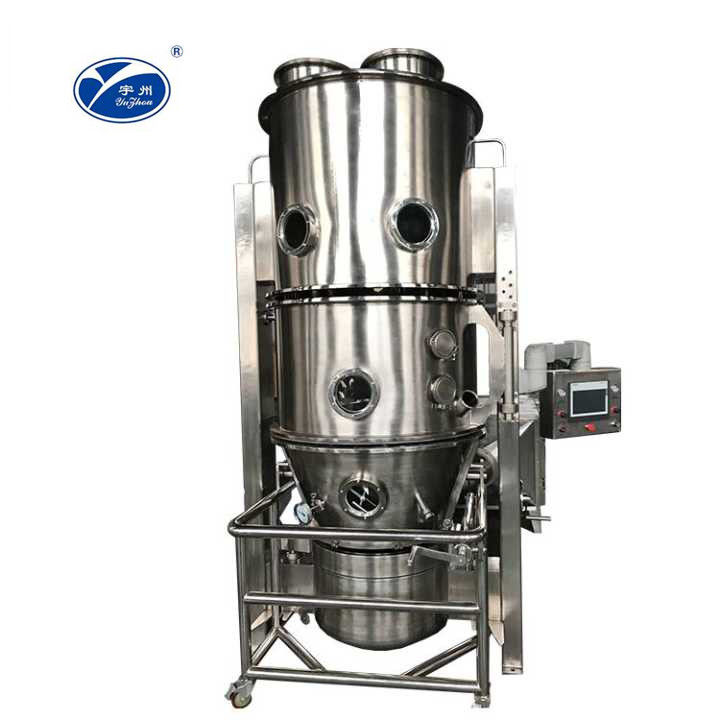

12kg/H Granulator Machine For Pharmaceuticals , FL Fluid Bed Equipment

12kg/H Granulator Machine For Pharmaceuticals , FL Fluid Bed Equipment

Product Details:

Place of Origin: China
Certification: SOS SGS ISO
Model Number: FL

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Price: USD 8990-98769 per unit
Packaging Details: export wooden case or container
Delivery Time: 25 working days
Payment Terms: D/A, D/P, L/C, T/T, Western Union, MoneyGram
Supply Ability: 500units per year
Get Best Price Contact Now

Detail Information

Name: Fluid Bed Dryer Granulator Model: FL
Function: Granulation And Drying Spray: Middle Spray
Granule Size: 0.5-1.5mm Granule Type: Incompact
Capacity: Batch By Batch
High Light:

12kg/h pharmaceutical granulator


FL fluid bed equipment

Product Description

Fluidized Bed Spray Granulation , Granulator Machine For Pharmaceuticals


Fluidized bed dryer granulator Overview:

Fluidized bed Drying Granulator is a set of mixing, granulation, drying in the same airtight container once completed equipment (i.e. one-step granulator).

One-step pelletizing machine This one-step granulator is mainly used in the pharmaceutical, food, chemical and other industries of powder materials mixing, drying, granulation and particle "top spray" coating. such as tablet granules, instant beverages, seasoning granules.


One-step Granulator combines the application of similar products at home and abroad to design new products.


The working principle features of fluid  bed dryer Granulator:

(1) One-step granulation by mixing, granulation and drying;

(2) Double capture filter bag system thoroughly clean;

(3) Multi-fluid atomizer, ensure uniform granulation, powder content is very low;

(4) According to GMP specification design, manufacturing and engineering configuration layout. Material powder particles, in the raw material container (fluidized bed) in the annular fluidization state, through the purification heating air preheating and mixing, the binder table solution atomized spray into, so that some particles gathered into the binder containing aggregates, due to continuous dry hot air materials, water evaporation in the task particles, the viscosity of the table agent curing,
This process is repetitive.

An ideal homogeneous porous spherical particle is formed.

The application range of fluid bed dryer Granulator:
Granulation in the pharmaceutical industry: tablet granules, granular particles, capsule granules.
Food industry granulation: cocoa, coffee, milk powder, granule juice, condiments and so on. Other industries: Pesticides, feed, fertilizers, pigments, dye chemicals, powder or granular wet material drying. Coating: granule, pill protective layer, preparation color, slow release agent, film, enteric-coated clothing and so on.


Technical Parameter

Specification 3 5 15 30 45 60 90 120 150 200 300 500
Volume(L) 12 22 45 100 155 220 300 420 530 660 1000 1500
Amount to be treated(kg/per time) 1.5/4.5 4/6 10/20 15/45 25/65 40/80 60/120 80/160 90/200 100/300 150/450 300/300
Power of fan(kw) 2.2 3 4 5.5 7.5 11 15 18.5 18.5 22 30 37
Consume of steam 0.4MPa(kg/h) 12 23 42 70 99 141 169 211 251 282 366 451
Consume of compressed air m3/min 0.3 1.3 0.3 0.4 0.4 0.6 0.6 0.9 0.9 0.9 1.3 1.5
Noise,db(A) (fan is installedseparately)≤75
Overall dimension(m) 1.0x

Note:Model FG can not be equipped with granulating part.
