Food Fluidized Bed Granulator Machine , 12-451kg/H Fluid Bed Dryer Processor
Product Details:
Place of Origin: | China |
Certification: | SOS SGS ISO |
Model Number: | FL |
Payment & Shipping Terms:
Minimum Order Quantity: | 1unit |
---|---|
Price: | USD 8990-98769 per unit |
Packaging Details: | export wooden case or container |
Delivery Time: | 25 working days |
Payment Terms: | D/A, D/P, L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 500units per year |
Detail Information |
|||
Name: | Fluid Bed Dryer Granulator | Model: | FL |
---|---|---|---|
Function: | Granulation And Drying | Spray: | Middle Spray |
Granule Size: | 0.5-1.5mm | Granule Type: | Incompact |
Capacity: | Batch By Batch | ||
Highlight: | 12kg/H fluidized bed granulator machine,451kg/H fluid bed dryer processor |
Product Description
High Performance Fluidized Bed Equipment , Fluid Bed Processor Granulator Machine
Fluidized bed drying granulator overview:

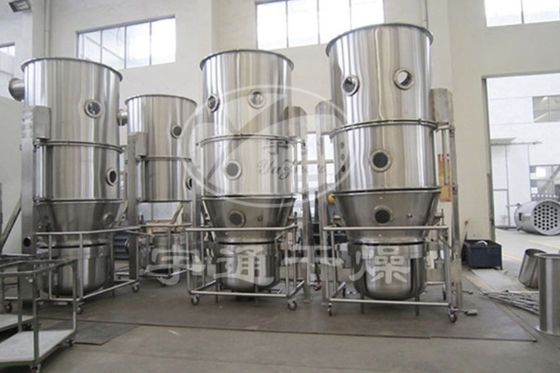

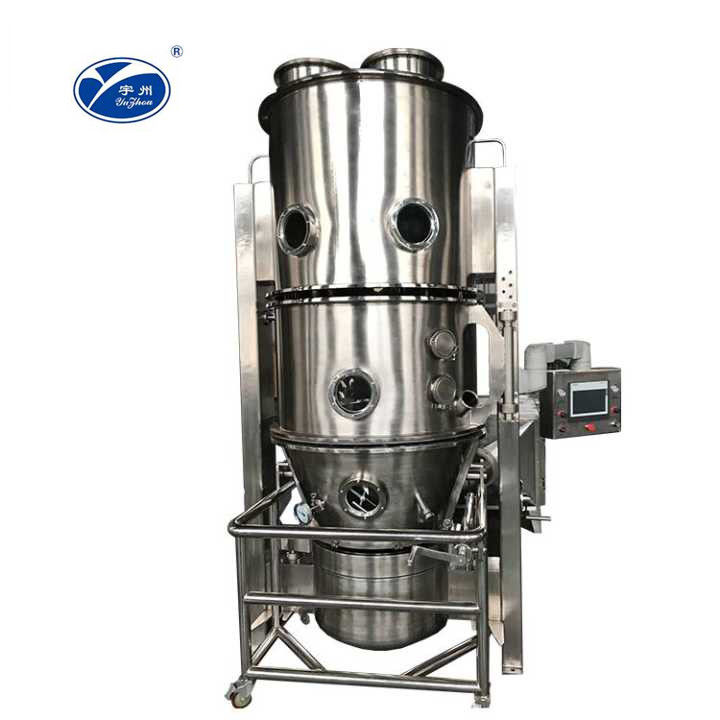

The FL series fluidized bed granulation dryer is a granulation drying equipment widely used in the world. It is a device that combines mixing, granulating and drying in the same closed container (ie one-step granulator). Suitable for mixing, granulating and drying powder materials. Widely used in pharmaceutical, food, chemical, light industry and other fields. All parts of the FL series boiling granulation dryer are made of stainless steel, sealed with a silicone rubber inflatable seal, and a dual-flow spray gun controls the particle size. Mixing, granulating and drying are concentrated in the same closed container, which is fast and efficient, avoiding dust, water leakage and pollution. FL series boiling granulation dryer has beautiful appearance, small wind resistance, no dead angle, easy to clean, and meets GMP requirements.
Working principle of fluidized bed drying granulator:
The powder particles of the boiling granulating dryer are in an annular fluidized state in a raw material container (fluidized bed), preheated and mixed by purified heated air, atomized and sprayed into the binder solution, and with several particles Gather. As a binder-containing agglomerate, water in the particles evaporates and the binder solidifies due to continuous drying of the hot air. This process is repeated to form the desired, uniform microporous spherical particles.
Fluidized bed dryer granulator features:
Improves fluidity by powder granulation and reduces dust flying;
Improve the solubility by powder granulation;
Mixing, granulating and drying, completing one-step granulation on one machine;
Use anti-static filter cloth to ensure safe operation of the equipment;
Set the pressure relief hole, if the explosion occurs, the equipment personnel will not be hurt;
The equipment has no dead angles, and the loading and unloading materials are light and fast, flushed and GMP-compliant.
Fluidized bed dryer granulator application range:
Granulation in the pharmaceutical industry: tablet granules, granules, capsule granules.
Granulation in the food industry: cocoa, coffee, milk powder, granule juice, condiments, etc.
Granulation in other industries: pesticides, feed, fertilizers, pigments, dyes and chemicals.
Drying of powdered or granular wet materials.
Coating: granules, protective layer of particles, color preparation, sustained release, film, enteric coating, etc.
Technical Parameter
Specification | 3 | 5 | 15 | 30 | 45 | 60 | 90 | 120 | 150 | 200 | 300 | 500 |
Volume(L) | 12 | 22 | 45 | 100 | 155 | 220 | 300 | 420 | 530 | 660 | 1000 | 1500 |
Amount to be treated(kg/per time) | 1.5/4.5 | 4/6 | 10/20 | 15/45 | 25/65 | 40/80 | 60/120 | 80/160 | 90/200 | 100/300 | 150/450 | 300/300 |
Power of fan(kw) | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 18.5 | 22 | 30 | 37 |
Consume of steam 0.4MPa(kg/h) | 12 | 23 | 42 | 70 | 99 | 141 | 169 | 211 | 251 | 282 | 366 | 451 |
Consume of compressed air m3/min | 0.3 | 1.3 | 0.3 | 0.4 | 0.4 | 0.6 | 0.6 | 0.9 | 0.9 | 0.9 | 1.3 | 1.5 |
Noise,db(A) | (fan is installedseparately)≤75 | |||||||||||
Overall dimension(m) | 1.0x 0.55x1.8 |
1.2x 0.6x2.1 |
1.25x 0.9x2.1 |
1.6x 0.9x2.3 |
1.65x 1.1x2.4 |
1.85x 1.25x3 |
1.85x 1.25x3 |
2.2x 1.65x3.1 |
2.27x 1.72x3.1 |
2.34x 1.9x3.5 |
2.8x 1.9x3.8 |
3x 2.55x4.2 |
Note:Model FG can not be equipped with granulating part.
