Stainless Steel 304 5-2000L Powder Mixer Machine For Food Insudstry

Stainless Steel 304 5-2000L Powder Mixer Machine For Food Insudstry

Product Details:

Place of Origin: China
Certification: SGS ISO CE
Model Number: SYH

Payment & Shipping Terms:

Minimum Order Quantity: 1units
Price: USD1490-9890 per unit
Packaging Details: plywood or container
Delivery Time: 25 working days
Payment Terms: Western Union, MoneyGram
Supply Ability: 1000units per year
Get Best Price Contact Now

Detail Information

Material: Stainless Steel 304 Or 316L Structure: 3D Rotary Drum
Rotary: Yes Application: Food/pharmaceutical Insudstries
Applicable To: Powder Standard: GMP
Mixing Effect: Even
High Light:

5L Powder Mixer Machine

,

2000L Powder Mixer Machine

Product Description

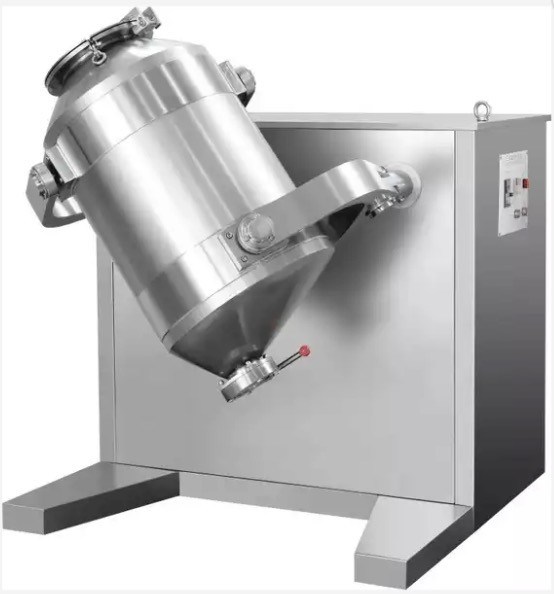

3D Rotary Drum Dry Powder Mixer Machine Stainless Steel 304 For Food Insudstry



Details the construction of the 3D powder mixer

The three-dimensional powder mixer consists of a base, a drive system, a mixing cylinder and an electrical control system. The mixing cylinder that is in direct contact with the material is made of high-quality stainless steel and the inner wall of the cylinder is precisely polished.


1, the base:
The three-dimensional mixer base is made of steel, and the stainless steel mirror panel is outsourced. The structure of the machine base is reasonable, which can effectively stabilize the whole machine and fully meet the GMP requirements for pharmaceutical production.
2, the drive system:
The drive system of the three-dimensional mixer consists of a motor, a transmission deceleration system, a frequency converter, and a control system to form a transmission deceleration system. The design is simple and reliable. The frequency converter can effectively buffer the inertia of heavy-duty starting, and can also accurately select the optimal position of the barrel during shutdown to facilitate feeding or discharging.
3, mixing barrel:
The two spaces of the three-dimensional mixer mixing cylinder are crossed and perpendicular to each other, respectively, between the main and driven shafts connected by the three-dimensional moving rocker arm, and the mixing barrel is taken out from the barrel body, the feeding end of the straight frustum, and the eccentric cone The material end, the feed port and the discharge device are composed.


The mixing drum is made of high quality stainless steel, and the inner and outer walls are polished. The cylinder has good air tightness, smooth surface and no dead angle, no residue and easy to clean.
The inlet port is sealed by a clamp type flange, which is convenient to operate and has good air tightness. The discharge end adopts a uniquely designed eccentric frustum. The asymmetric design is more conducive to uniform material mixing. When discharging, the discharge port is at the lowest position of the mixing container, and the material is discharged. The discharge valve adopts the uniquely designed butterfly valve of the factory, which has good sealing performance, convenient discharging and no residue.



Technical Parameter

Spec SYH-5 SYH-15 SYH-50 SYH-100 SYH-200 SYH-400 SYH-600 SYH-800 SYH-1000 SYH-1200 SYH-1500 SYH-2000
volume of barrel(L) 5 15 50 100 200 400 600 800 1000 1200 1500 2000
charge volume(L) 4.5 13.5 45 90 180 360 540 720 900 1080 1350 1800
charge weight(kg) 1.5-2.7 4-8.1 15-27 30-54 50-108 100-216 150-324 200-432 250-540 300-648 400-810 500-1080
rotation speed of main shaft(r/min) 0-20 0-20 0-20 0-20 0-15 0-15 0-13 0-10 0-10 0-9 0-9 0-8
motor power(kw) 0.25 0.37 1.1 1.5 2.5 4 5.5 7.5 11 11 15 18.5
size L×W×H(mm) 600
×1000
×1000
800 ×1200
×1000
1150 ×1400
×1000
1250 ×1800
×1550
1450 ×2000
×1550
1650 ×2200
×1550
1850 ×2500
×1750
2100 ×2650
×2000
2150 ×2800
×2100
2000 ×3000
×2260
2300 ×3200
×2500
2500 ×3500
×2800
weight(kg) 100 200 300 800 1200 1200 1500 1700 1800 2000 2400 3000

The bulk density of material is made based on 0.6g/cm3, Please point out if it's over .
