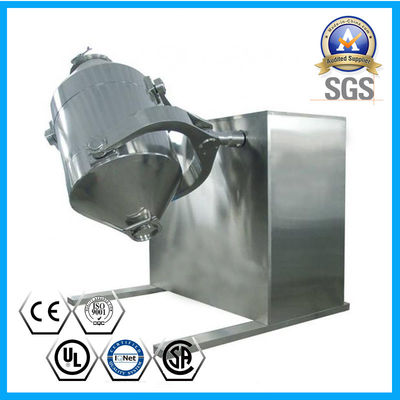

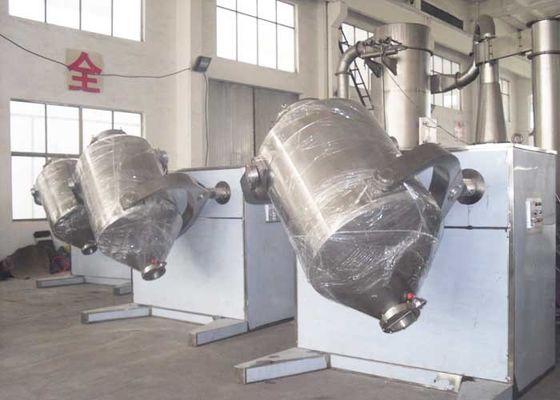

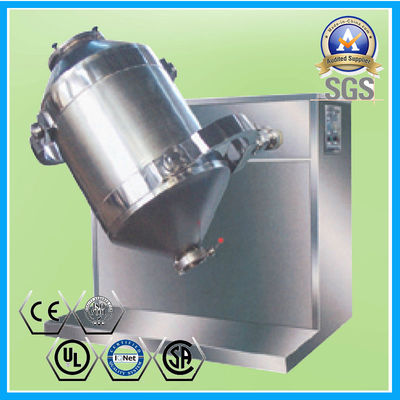

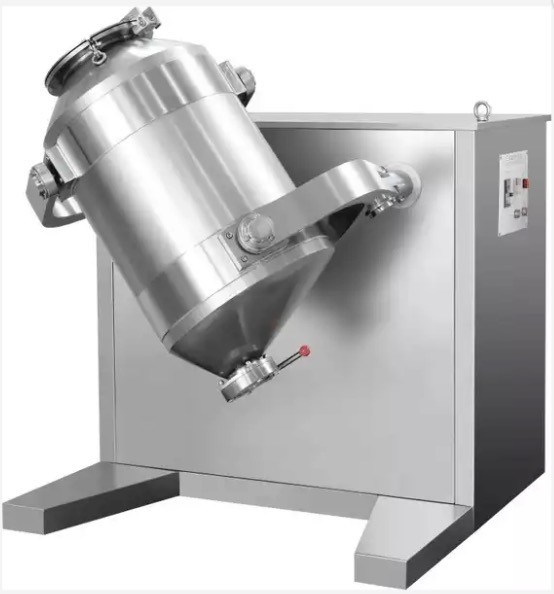

SS316L Pharmaceutical Powder Mixer Machine 3D Rotary Drum Structure
Product Details:
| Place of Origin: | China |
| Certification: | SGS ISO CE |
| Model Number: | SYH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1units |
|---|---|
| Price: | USD1490-9890 per unit |
| Packaging Details: | plywood or container |
| Delivery Time: | 25 working days |
| Payment Terms: | Western Union, MoneyGram |
| Supply Ability: | 1000units per year |
|
Detail Information |
|||
| Material: | Stainless Steel 304 Or 316L | Structure: | 3D Rotary Drum |
|---|---|---|---|
| Rotary: | Yes | Application: | Food/pharmaceutical Insudstries |
| Applicable To: | Powder | Standard: | GMP |
| High Light: | SS316L Powder Mixer Machine,3D Rotary Powder Mixer Machine |
||
Product Description
Phamarceutical Powder Mixer Machine High Efficient GMP Standard 3D Rotary Drum Structure
Characteristics
The barrel for charging the materials is driven by the driving shaft. The barrel body carries on the repeated level movement, rotation, turning and other complex movements so that the materials will carry out the three dimensions and complex movements along the barrel body so as to realize the various movements of the materials. Through disseminating, gathering, agglomerating and mixing to realize uniform mixing.
The barrel for charging the materials is driven by the driving shaft. The barrel body carries on the repeated level movement, rotation, turning and other complex movements so that the materials will carry out the three dimensions and complex movements along the barrel body so as to realize the various movements of the materials. Through disseminating, gathering, agglomerating and mixing to realize uniform mixing.
Technical Parameter
| Spec | SYH-5 | SYH-15 | SYH-50 | SYH-100 | SYH-200 | SYH-400 | SYH-600 | SYH-800 | SYH-1000 | SYH-1200 | SYH-1500 | SYH-2000 |
| volume of barrel(L) | 5 | 15 | 50 | 100 | 200 | 400 | 600 | 800 | 1000 | 1200 | 1500 | 2000 |
| charge volume(L) | 4.5 | 13.5 | 45 | 90 | 180 | 360 | 540 | 720 | 900 | 1080 | 1350 | 1800 |
| charge weight(kg) | 1.5-2.7 | 4-8.1 | 15-27 | 30-54 | 50-108 | 100-216 | 150-324 | 200-432 | 250-540 | 300-648 | 400-810 | 500-1080 |
| rotation speed of main shaft(r/min) | 0-20 | 0-20 | 0-20 | 0-20 | 0-15 | 0-15 | 0-13 | 0-10 | 0-10 | 0-9 | 0-9 | 0-8 |
| motor power(kw) | 0.25 | 0.37 | 1.1 | 1.5 | 2.5 | 4 | 5.5 | 7.5 | 11 | 11 | 15 | 18.5 |
| size L×W×H(mm) | 600 ×1000 ×1000 |
800 ×1200 ×1000 |
1150 ×1400 ×1000 |
1250 ×1800 ×1550 |
1450 ×2000 ×1550 |
1650 ×2200 ×1550 |
1850 ×2500 ×1750 |
2100 ×2650 ×2000 |
2150 ×2800 ×2100 |
2000 ×3000 ×2260 |
2300 ×3200 ×2500 |
2500 ×3500 ×2800 |
| weight(kg) | 100 | 200 | 300 | 800 | 1200 | 1200 | 1500 | 1700 | 1800 | 2000 | 2400 | 3000 |
The bulk density of material is made based on 0.6g/cm3, Please point out if it's over .
